Compact gullies, without foul air trap, with bracket

Product benefits

  • Direct installation in the floor slab
  • Simple installation by means of integrated grating frame
  • Robust design
  • Suitable for sealing by means of floor covering
  • Resistant to oils, petrols and diesel

Product information

  • Basement gullies tested to DIN EN 1253-2
  • Painted cast iron (transport protection)
  • Building material class A1
  • Without foul air trap
  • For connection to SML-pipe tested to DIN 19522/DIN EN 877

Nominal width: DN 100

ClassSocket

inclination
RecessDescriptionWeightItem

number
Remember
[mm][kg]
L 1590°260 x 360
  • Discharge value: 4.0 l/s
  • Gratings
    • Loosely inserted
11.75190.00.00
300 x 450
  • With seepage openings
  • With silt bucket: hard PE
  • Flow rate: 4.0 l/s
17.55190.10.00
M 12590°260 x 360
  • Discharge value: 4.0 l/s
  • Gratings
    • Loosely inserted
11.35190.05.001
300 x 450
  • With seepage openings
  • With silt bucket: hard PE
  • Flow rate: 4.0 l/s
17.55190.15.001
ClassSocket inclinationRecessDescriptionWeightItem

number
L 1590°260 x 360 mm
  • Discharge value: 4.0 l/s
  • Gratings
    • Loosely inserted
11.7 kg5190.00.00
L 1590°300 x 450 mm
  • With seepage openings
  • With silt bucket: hard PE
  • Flow rate: 4.0 l/s
17.5 kg5190.10.00
M 12590°260 x 360 mm
  • Discharge value: 4.0 l/s
  • Gratings
    • Loosely inserted
11.3 kg5190.05.00
M 12590°300 x 450 mm
  • With seepage openings
  • With silt bucket: hard PE
  • Flow rate: 4.0 l/s
17.5 kg5190.15.00

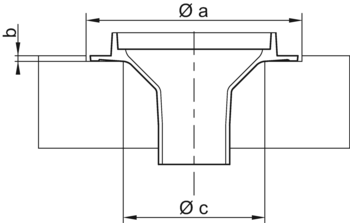

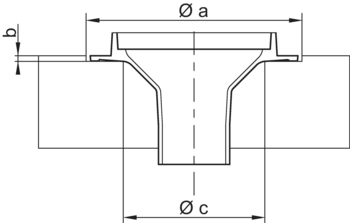

Nominal widthøaøbøcDescriptionItem
number
[mm][mm][mm]
DN 10032015215With core bore dimension c2 measurement b reduces to 11 mm5190.00.00
DN 10041010290With core bore dimension c2 measurement b reduces to 11 mm5190.10.00
DN 10032015215With core bore dimension c2 measurement b reduces to 11 mm5190.05.00
DN 10041015290With core bore dimension c2 measurement b reduces to 11 mm5190.15.00
