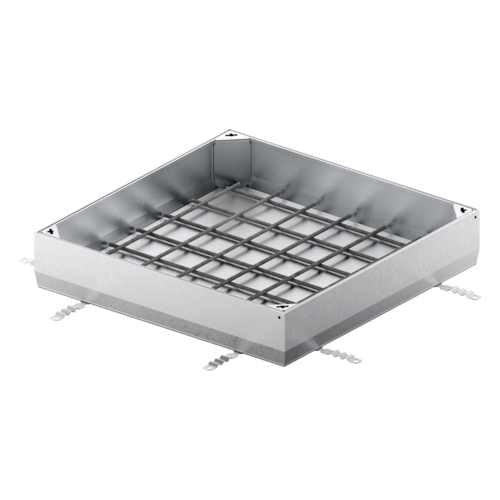

ACO Access Cover UNIFACE DEEP 65

Product benefits

Meets the declared load class up to B125 for all free openings up to 1 m dimensions
Deeper cover allows backfilling of tiles, paving stones or natural stones up to a thickness of 65 mm (including adhesive).
No risk - load class capacity guaranteed and certified
Secured in the frame by its own weight
Easy removal and assembly

Product information

Corrosion resistant - Hot-dip galvanised mild steel (≥ 60 µm zinc) or pickled and passivated stainless steel
Precision design
Less friction between the frame and cover
No sharp edges – improved safety
Rolled profiles for the galvanised version of the cover are made of the innovative material UltraSTEEL^®. It helps to significantly reduce the weight of the cover while maintaining the strength, stability and rigidity of the product
Rolled sections for the stainless steel version are made of conventional sheet steel with a thickness of 2 mm
Covers are double sealed to ensure excellent water and odour tightness

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	Material	Item number	Downloads	Remember
300 x 300	410 x 410	137	125	65	13.3	Galvanised steel (1.0037)	445886
300 x 300	410 x 410	137	125	65	13.3	Stainless steel (1.4301)	445887
400 x 400	510 x 510	137	125	65	17.2	Galvanised steel (1.0037)	445890
400 x 400	510 x 510	137	125	65	17.2	Stainless steel (1.4301)	445891
500 x 500	610 x 610	137	125	65	21.3	Galvanised steel (1.0037)	445894
500 x 500	610 x 610	137	125	65	21.3	Stainless steel (1.4301)	445895
600 x 600	710 x 710	137	125	65	25.8	Galvanised steel (1.0037)	445898
600 x 600	710 x 710	137	125	65	25.8	Stainless steel (1.4301)	445899
700 x 700	810 x 810	137	125	65	32.7	Galvanised steel (1.0037)	445902
700 x 700	810 x 810	137	125	65	32.7	Stainless steel (1.4301)	445903
800 x 800	910 x 910	137	125	65	38.4	Galvanised steel (1.0037)	445906
800 x 800	910 x 910	137	125	65	38.4	Stainless steel (1.4301)	445907
900 x 900	1010 x 1010	137	125	65	44.6	Galvanised steel (1.0037)	445910
900 x 900	1010 x 1010	137	125	65	44.6	Stainless steel (1.4301)	445911
1000 x 1000	1110 x 1110	137	125	65	51.1	Galvanised steel (1.0037)	445914
1000 x 1000	1110 x 1110	137	125	65	51.1	Stainless steel (1.4301)	445915
1000 x 600	710 x 1110	137	125	65	37.6	Galvanised steel (1.0037)	445918
1000 x 600	710 x 1110	137	125	65	37.6	Stainless steel (1.4301)	445919
1000 x 800	910 x 1110	137	125	65	44.4	Galvanised steel (1.0037)	445922
1000 x 800	910 x 1110	137	125	65	44.4	Stainless steel (1.4301)	445923

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Weight	Material	Item number
300 x 300 mm	410 x 410 mm	137 mm	125 mm	65 mm	13.3 kg	Galvanised steel (1.0037)	445886
300 x 300 mm	410 x 410 mm	137 mm	125 mm	65 mm	13.3 kg	Stainless steel (1.4301)	445887
400 x 400 mm	510 x 510 mm	137 mm	125 mm	65 mm	17.2 kg	Galvanised steel (1.0037)	445890
400 x 400 mm	510 x 510 mm	137 mm	125 mm	65 mm	17.2 kg	Stainless steel (1.4301)	445891
500 x 500 mm	610 x 610 mm	137 mm	125 mm	65 mm	21.3 kg	Galvanised steel (1.0037)	445894
500 x 500 mm	610 x 610 mm	137 mm	125 mm	65 mm	21.3 kg	Stainless steel (1.4301)	445895
600 x 600 mm	710 x 710 mm	137 mm	125 mm	65 mm	25.8 kg	Galvanised steel (1.0037)	445898
600 x 600 mm	710 x 710 mm	137 mm	125 mm	65 mm	25.8 kg	Stainless steel (1.4301)	445899
700 x 700 mm	810 x 810 mm	137 mm	125 mm	65 mm	32.7 kg	Galvanised steel (1.0037)	445902
700 x 700 mm	810 x 810 mm	137 mm	125 mm	65 mm	32.7 kg	Stainless steel (1.4301)	445903
800 x 800 mm	910 x 910 mm	137 mm	125 mm	65 mm	38.4 kg	Galvanised steel (1.0037)	445906
800 x 800 mm	910 x 910 mm	137 mm	125 mm	65 mm	38.4 kg	Stainless steel (1.4301)	445907
900 x 900 mm	1010 x 1010 mm	137 mm	125 mm	65 mm	44.6 kg	Galvanised steel (1.0037)	445910
900 x 900 mm	1010 x 1010 mm	137 mm	125 mm	65 mm	44.6 kg	Stainless steel (1.4301)	445911
1000 x 1000 mm	1110 x 1110 mm	137 mm	125 mm	65 mm	51.1 kg	Galvanised steel (1.0037)	445914
1000 x 1000 mm	1110 x 1110 mm	137 mm	125 mm	65 mm	51.1 kg	Stainless steel (1.4301)	445915
1000 x 600 mm	710 x 1110 mm	137 mm	125 mm	65 mm	37.6 kg	Galvanised steel (1.0037)	445918
1000 x 600 mm	710 x 1110 mm	137 mm	125 mm	65 mm	37.6 kg	Stainless steel (1.4301)	445919
1000 x 800 mm	910 x 1110 mm	137 mm	125 mm	65 mm	44.4 kg	Galvanised steel (1.0037)	445922
1000 x 800 mm	910 x 1110 mm	137 mm	125 mm	65 mm	44.4 kg	Stainless steel (1.4301)	445923
