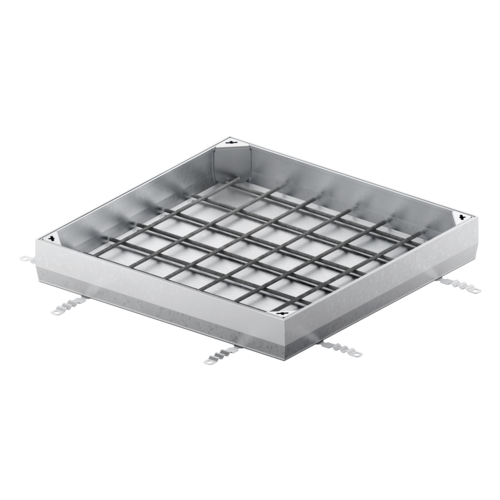

ACO Access Cover UNIFACE DEEP 35

Product benefits

Meets the declared load class up to B125 for all free openings up to 1 m dimensions
Deeper cover allows backfilling of tiles, paving stones or natural stones up to a thickness of 35 mm (including adhesive).
No risk - load class capacity guaranteed and certified
Secured in the frame by its own weight
Easy removal and assembly

Product information

Corrosion resistant - Hot-dip galvanised mild steel (≥ 60 µm zinc) or pickled and passivated stainless steel
Precision design
Less friction between the frame and cover
No sharp edges – improved safety
Rolled profiles for the galvanised version of the cover are made of the innovative material UltraSTEEL^®. It helps to significantly reduce the weight of the cover while maintaining the strength, stability and rigidity of the product
Rolled sections for the stainless steel version are made of conventional sheet steel with a thickness of 2 mm
Covers are double sealed to ensure excellent water and odour tightness

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	Material	Item number	Downloads	Remember
300 x 300	410 x 410	107	95	35	11.5	Galvanised steel (1.0037)	445846
300 x 300	410 x 410	107	95	35	11.5	Stainless steel (1.4301)	445847
400 x 400	510 x 510	107	95	35	14.9	Galvanised steel (1.0037)	445850
400 x 400	510 x 510	107	95	35	14.9	Stainless steel (1.4301)	445851
500 x 500	610 x 610	107	95	35	18.8	Galvanised steel (1.0037)	445854
500 x 500	610 x 610	107	95	35	18.8	Stainless steel (1.4301)	445855
600 x 600	710 x 710	107	95	35	22.9	Galvanised steel (1.0037)	445858
600 x 600	710 x 710	107	95	35	22.9	Stainless steel (1.4301)	445859
700 x 700	810 x 810	107	95	35	29.4	Galvanised steel (1.0037)	445862
700 x 700	810 x 810	107	95	35	29.4	Stainless steel (1.4301)	445863
800 x 800	910 x 910	107	95	35	34.7	Galvanised steel (1.0037)	445866
800 x 800	910 x 910	107	95	35	34.7	Stainless steel (1.4301)	445867
900 x 900	1010 x 1010	107	95	35	40.5	Galvanised steel (1.0037)	445870
900 x 900	1010 x 1010	107	95	35	40.5	Stainless steel (1.4301)	445871
1000 x 1000	1110 x 1110	107	95	35	46.6	Galvanised steel (1.0037)	445874
1000 x 1000	1110 x 1110	107	95	35	46.6	Stainless steel (1.4301)	445875
1000 x 600	710 x 1110	107	95	35	33.9	Galvanised steel (1.0037)	445878
1000 x 600	710 x 1110	107	95	35	33.9	Stainless steel (1.4301)	445879
1000 x 800	910 x 1110	107	95	35	40.3	Galvanised steel (1.0037)	445882
1000 x 800	910 x 1110	107	95	35	40.3	Stainless steel (1.4301)	445883

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Weight	Material	Item number
300 x 300 mm	410 x 410 mm	107 mm	95 mm	35 mm	11.5 kg	Galvanised steel (1.0037)	445846
300 x 300 mm	410 x 410 mm	107 mm	95 mm	35 mm	11.5 kg	Stainless steel (1.4301)	445847
400 x 400 mm	510 x 510 mm	107 mm	95 mm	35 mm	14.9 kg	Galvanised steel (1.0037)	445850
400 x 400 mm	510 x 510 mm	107 mm	95 mm	35 mm	14.9 kg	Stainless steel (1.4301)	445851
500 x 500 mm	610 x 610 mm	107 mm	95 mm	35 mm	18.8 kg	Galvanised steel (1.0037)	445854
500 x 500 mm	610 x 610 mm	107 mm	95 mm	35 mm	18.8 kg	Stainless steel (1.4301)	445855
600 x 600 mm	710 x 710 mm	107 mm	95 mm	35 mm	22.9 kg	Galvanised steel (1.0037)	445858
600 x 600 mm	710 x 710 mm	107 mm	95 mm	35 mm	22.9 kg	Stainless steel (1.4301)	445859
700 x 700 mm	810 x 810 mm	107 mm	95 mm	35 mm	29.4 kg	Galvanised steel (1.0037)	445862
700 x 700 mm	810 x 810 mm	107 mm	95 mm	35 mm	29.4 kg	Stainless steel (1.4301)	445863
800 x 800 mm	910 x 910 mm	107 mm	95 mm	35 mm	34.7 kg	Galvanised steel (1.0037)	445866
800 x 800 mm	910 x 910 mm	107 mm	95 mm	35 mm	34.7 kg	Stainless steel (1.4301)	445867
900 x 900 mm	1010 x 1010 mm	107 mm	95 mm	35 mm	40.5 kg	Galvanised steel (1.0037)	445870
900 x 900 mm	1010 x 1010 mm	107 mm	95 mm	35 mm	40.5 kg	Stainless steel (1.4301)	445871
1000 x 1000 mm	1110 x 1110 mm	107 mm	95 mm	35 mm	46.6 kg	Galvanised steel (1.0037)	445874
1000 x 1000 mm	1110 x 1110 mm	107 mm	95 mm	35 mm	46.6 kg	Stainless steel (1.4301)	445875
1000 x 600 mm	710 x 1110 mm	107 mm	95 mm	35 mm	33.9 kg	Galvanised steel (1.0037)	445878
1000 x 600 mm	710 x 1110 mm	107 mm	95 mm	35 mm	33.9 kg	Stainless steel (1.4301)	445879
1000 x 800 mm	910 x 1110 mm	107 mm	95 mm	35 mm	40.3 kg	Galvanised steel (1.0037)	445882
1000 x 800 mm	910 x 1110 mm	107 mm	95 mm	35 mm	40.3 kg	Stainless steel (1.4301)	445883
