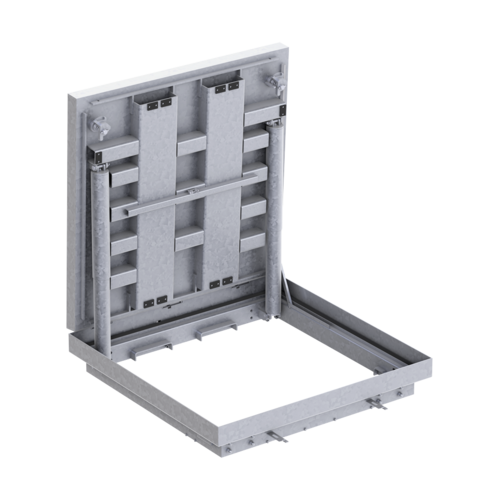

ACO Access Cover SERVOKAT MODULAR
Product benefits
- No concrete or any other additional structural infill necessary
- Type tested and certified according to EN 124
- Watertightness tested (not certified) acc. to EN 1253-4
- Bolt locked – child safety
- Corrosion resistant
- Secure and time saving installation
- No risk – load capacity always guaranteed
- Durable
SERVOKAT Modular D400 product range is designed in order to be equipped by safety components such as GS/SS grate or aluminium railing.
Product information
- Shaft cover according to DIN EN 124
- Optionally with quick release for emergency exits for opening and closing from above and for quick opening without tools from below
- Including operating key
- Type-tested and certified according to EN 124:2015
- Meets declared load class up to D400 (declared without infill)
- Opening assistance provided by a mechanical spring
- Easy-lock and simple hinges that do not interfere with the clear opening
- Cushioning inserts reduce noise from traffic
- Corrosion-resistant – hot-dip galvanized mild steel (GS) / pickle passivated stainless steel (SS)
- Secure and time-saving installation – no formwork application required / easy and fast assembly of mechanical springs
- Watertightness tested (not certified) according to EN 1253-4*
- Water Guard – provides water protection for sensitive technologies underneath the cover

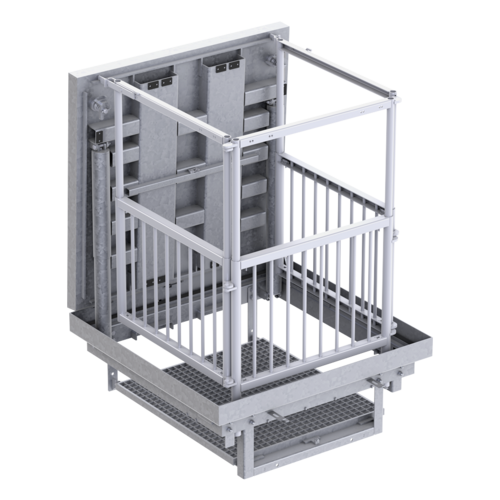

- Modular design – protecting lightweight aluminum railing and GS/SS grate as standard equipment
- Railing – provides full protection when the cover is opened, with two-sided access, 1,1m height, and foldable/telescopic assembly
- Grate – one side is hinged and secured when opened
- Mechanical spring designed for concrete (C35/45 (EN 206) infill (for other infill types, prior communication is required to adjust the appropriate assistance force)
- Installation – the access cover must be installed according to the installation instructions to ensure full functionality of the cover equipment
* Watertightness test procedure acc. to EN 1253-4: water flooding 10±1 mm for time period 15±1m – no leak of water to the bottom side of cover supervised by Authorized body 204
