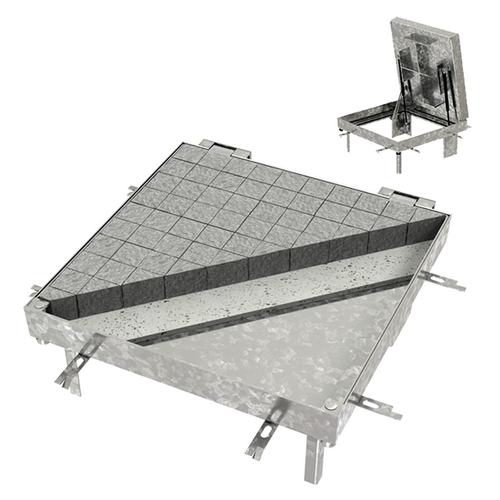

ACO Access Cover PAVING ASSIST GS 80

Product information

  • Option with opening assistance
  • One man operation, hinges, gas springs (installed afterwards from safety reasons)
  • Locked by two bolts
  • Stainless steel version available on request (1.4301 or 1.4571)
  • Sealed for water and odour tight
Clear area (A x B)Frame dimension (C x D)Frame height (E)Cover depthClassWeightMaterialItem

number
Remember
[mm][mm][mm][mm][kg]
400 x 400536 x 57010480A 1529.4Galvanised steel414504
500 x 500636 x 67010480A 1534.4Galvanised steel414505
600 x 600736 x 77010480A 1540.9Galvanised steel414506
700 x 700836 x 87010480A 1548.9Galvanised steel414507
800 x 800936 x 97010480A 1555.6Galvanised steel414508
900 x 9001036 x 107010480A 1564.6Galvanised steel414509
1000 x 10001136 x 117010480A 1574.1Galvanised steel414510
400 x 400536 x 57010480B 12539.1Galvanised steel414512
500 x 500636 x 67010480B 12546Galvanised steel414513
600 x 600736 x 77010480B 12554.5Galvanised steel414514
700 x 700836 x 87010480B 12573.8Galvanised steel414515
800 x 800936 x 97010480B 12585.1Galvanised steel414516
900 x 9001036 x 107010480B 12594Galvanised steel414517
1000 x 10001136 x 117010480B 125108Galvanised steel414518
400 x 400536 x 57010480C 25052.3Galvanised steel414520
500 x 500636 x 67010480C 25066.8Galvanised steel414521
600 x 600736 x 77010480C 25078.7Galvanised steel414522
700 x 700836 x 87010480C 250100.6Galvanised steel414523
800 x 800936 x 97010480C 250115.7Galvanised steel414524
900 x 9001036 x 107010480C 250129.8Galvanised steel414525
1000 x 10001136 x 117010480C 250146.4Galvanised steel414526
400 x 400536 x 57010480D 40049.9Galvanised steel445624
500 x 500636 x 67010480D 40066.2Galvanised steel445625
600 x 600736 x 77010480D 40087.3Galvanised steel445626
700 x 700836 x 87010480D 400106.8Galvanised steel445627
800 x 800936 x 97010480D 400131.7Galvanised steel445628
900 x 9001036 x 107010480D 400153.2Galvanised steel445629
1000 x 10001136 x 117010480D 400182.6Galvanised steel445630
Clear area (A x B)Frame dimension (C x D)Frame height (E)Cover depthClassWeightMaterialItem

number
400 x 400 mm536 x 570 mm104 mm80 mmA 1529.4 kgGalvanised steel414504
500 x 500 mm636 x 670 mm104 mm80 mmA 1534.4 kgGalvanised steel414505
600 x 600 mm736 x 770 mm104 mm80 mmA 1540.9 kgGalvanised steel414506
700 x 700 mm836 x 870 mm104 mm80 mmA 1548.9 kgGalvanised steel414507
800 x 800 mm936 x 970 mm104 mm80 mmA 1555.6 kgGalvanised steel414508
900 x 900 mm1036 x 1070 mm104 mm80 mmA 1564.6 kgGalvanised steel414509
1000 x 1000 mm1136 x 1170 mm104 mm80 mmA 1574.1 kgGalvanised steel414510
400 x 400 mm536 x 570 mm104 mm80 mmB 12539.1 kgGalvanised steel414512
500 x 500 mm636 x 670 mm104 mm80 mmB 12546 kgGalvanised steel414513
600 x 600 mm736 x 770 mm104 mm80 mmB 12554.5 kgGalvanised steel414514
700 x 700 mm836 x 870 mm104 mm80 mmB 12573.8 kgGalvanised steel414515
800 x 800 mm936 x 970 mm104 mm80 mmB 12585.1 kgGalvanised steel414516
900 x 900 mm1036 x 1070 mm104 mm80 mmB 12594 kgGalvanised steel414517
1000 x 1000 mm1136 x 1170 mm104 mm80 mmB 125108 kgGalvanised steel414518
400 x 400 mm536 x 570 mm104 mm80 mmC 25052.3 kgGalvanised steel414520
500 x 500 mm636 x 670 mm104 mm80 mmC 25066.8 kgGalvanised steel414521
600 x 600 mm736 x 770 mm104 mm80 mmC 25078.7 kgGalvanised steel414522
700 x 700 mm836 x 870 mm104 mm80 mmC 250100.6 kgGalvanised steel414523
800 x 800 mm936 x 970 mm104 mm80 mmC 250115.7 kgGalvanised steel414524
900 x 900 mm1036 x 1070 mm104 mm80 mmC 250129.8 kgGalvanised steel414525
1000 x 1000 mm1136 x 1170 mm104 mm80 mmC 250146.4 kgGalvanised steel414526
400 x 400 mm536 x 570 mm104 mm80 mmD 40049.9 kgGalvanised steel445624
500 x 500 mm636 x 670 mm104 mm80 mmD 40066.2 kgGalvanised steel445625
600 x 600 mm736 x 770 mm104 mm80 mmD 40087.3 kgGalvanised steel445626
700 x 700 mm836 x 870 mm104 mm80 mmD 400106.8 kgGalvanised steel445627
800 x 800 mm936 x 970 mm104 mm80 mmD 400131.7 kgGalvanised steel445628
900 x 900 mm1036 x 1070 mm104 mm80 mmD 400153.2 kgGalvanised steel445629
1000 x 1000 mm1136 x 1170 mm104 mm80 mmD 400182.6 kgGalvanised steel445630
