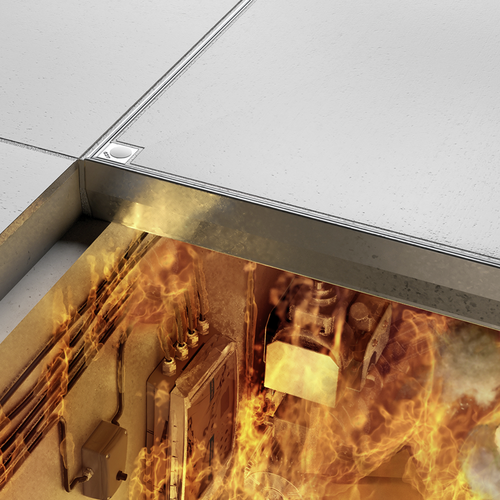

ACO Access Cover UNIFACE SS/FR

Product benefits

  • Fire resistance E120, EI1120, EI2120 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured with a fire resistance equipment
  • Covers are equipped by single seal, water and odour-tightness is not rated
  • Application of concrete C35/45 in cover lid

Product information

  • Meets declared load class up to N250 for all clear openings up to 1 m
  • Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless steel
  • Preciseness, design
  • Thanks to unique bending on the top no additional stripes for installation necessary
  • Easy opening after installation
  • Less friction between frame and cover
  • No sharp edges – improved safety
  • Rolled profiles for galvanized version of the cover are made from innovative material UltraSTEEL®. It helps significantly reduce weight of the cover while maintaining the strength, stability and stiffness of the product.
  • Rolled profiles for stainless steel version are made from conventional steel sheet in thickness 2 mm.
Clear area (A x B)Frame dimension (C x D)Frame height (E)Cover depthSpace for final floorClassFire protection classWeightMaterialItem

number
Remember
[mm][mm][mm][mm][mm][kg]
300 x 300410 x 41082.57015N 250EI 12010.9Stainless steel447908
400 x 400510 x 51082.57015N 250EI 12014.9Stainless steel447909
400 x 600510 x 71082.57015N 250EI 12019.3Stainless steel447910
450 x 450560 x 56082.57015M 125EI 12017.4Stainless steel447911
11015N 250EI 12017.6Stainless steel447922
500 x 500610 x 61082.57015M 125EI 12019.6Stainless steel447912
11015N 250EI 12019.8Stainless steel447923
600 x 600710 x 71082.57015M 125EI 12025.2Stainless steel447913
11015N 250EI 12025.4Stainless steel447924
600 x 800710 x 91082.57015M 125EI 12033.2Stainless steel447914
11015N 250EI 12033.9Stainless steel447925
600 x 1000710 x 111082.57015M 125EI 12039.7Stainless steel447915
11015N 250EI 12040.9Stainless steel447926
635 x 635745 x 74582.57015L 15EI 12029.2Stainless steel447917
11015M 125EI 12029.3Stainless steel447927
14015N 250EI 12030.3Stainless steel447932
700 x 700810 x 81082.57015L 15EI 12033.6Stainless steel447918
11015M 125EI 12034.1Stainless steel447928
14015N 250EI 12035.1Stainless steel447933
800 x 800910 x 91082.57015L 15EI 12041.3Stainless steel447919
11015M 125EI 12042Stainless steel447929
14015N 250EI 12043Stainless steel447934
800 x 1000910 x 111082.57015L 15EI 12049.4Stainless steel447920
11015M 125EI 12047.2Stainless steel447930
14015N 250EI 12043.3Stainless steel447935
1000 x 10001110 x 111082.57015L 15EI 12059.1Stainless steel447921
11015M 125EI 12060.1Stainless steel447931
14015N 250EI 12061.1Stainless steel447936
Clear area (A x B)Frame dimension (C x D)Frame height (E)Cover depthSpace for final floorClassFire protection classWeightMaterialItem

number
300 x 300 mm410 x 410 mm82.5 mm70 mm15 mmN 250EI 12010.9 kgStainless steel447908
400 x 400 mm510 x 510 mm82.5 mm70 mm15 mmN 250EI 12014.9 kgStainless steel447909
400 x 600 mm510 x 710 mm82.5 mm70 mm15 mmN 250EI 12019.3 kgStainless steel447910
450 x 450 mm560 x 560 mm82.5 mm70 mm15 mmM 125EI 12017.4 kgStainless steel447911
450 x 450 mm560 x 560 mm82.5 mm110 mm15 mmN 250EI 12017.6 kgStainless steel447922
500 x 500 mm610 x 610 mm82.5 mm70 mm15 mmM 125EI 12019.6 kgStainless steel447912
500 x 500 mm610 x 610 mm82.5 mm110 mm15 mmN 250EI 12019.8 kgStainless steel447923
600 x 600 mm710 x 710 mm82.5 mm70 mm15 mmM 125EI 12025.2 kgStainless steel447913
600 x 600 mm710 x 710 mm82.5 mm110 mm15 mmN 250EI 12025.4 kgStainless steel447924
600 x 800 mm710 x 910 mm82.5 mm70 mm15 mmM 125EI 12033.2 kgStainless steel447914
600 x 800 mm710 x 910 mm82.5 mm110 mm15 mmN 250EI 12033.9 kgStainless steel447925
600 x 1000 mm710 x 1110 mm82.5 mm70 mm15 mmM 125EI 12039.7 kgStainless steel447915
600 x 1000 mm710 x 1110 mm82.5 mm110 mm15 mmN 250EI 12040.9 kgStainless steel447926
635 x 635 mm745 x 745 mm82.5 mm70 mm15 mmL 15EI 12029.2 kgStainless steel447917
635 x 635 mm745 x 745 mm82.5 mm110 mm15 mmM 125EI 12029.3 kgStainless steel447927
635 x 635 mm745 x 745 mm82.5 mm140 mm15 mmN 250EI 12030.3 kgStainless steel447932
700 x 700 mm810 x 810 mm82.5 mm70 mm15 mmL 15EI 12033.6 kgStainless steel447918
700 x 700 mm810 x 810 mm82.5 mm110 mm15 mmM 125EI 12034.1 kgStainless steel447928
700 x 700 mm810 x 810 mm82.5 mm140 mm15 mmN 250EI 12035.1 kgStainless steel447933
800 x 800 mm910 x 910 mm82.5 mm70 mm15 mmL 15EI 12041.3 kgStainless steel447919
800 x 800 mm910 x 910 mm82.5 mm110 mm15 mmM 125EI 12042 kgStainless steel447929
800 x 800 mm910 x 910 mm82.5 mm140 mm15 mmN 250EI 12043 kgStainless steel447934
800 x 1000 mm910 x 1110 mm82.5 mm70 mm15 mmL 15EI 12049.4 kgStainless steel447920
800 x 1000 mm910 x 1110 mm82.5 mm110 mm15 mmM 125EI 12047.2 kgStainless steel447930
800 x 1000 mm910 x 1110 mm82.5 mm140 mm15 mmN 250EI 12043.3 kgStainless steel447935
1000 x 1000 mm1110 x 1110 mm82.5 mm70 mm15 mmL 15EI 12059.1 kgStainless steel447921
1000 x 1000 mm1110 x 1110 mm82.5 mm110 mm15 mmM 125EI 12060.1 kgStainless steel447931
1000 x 1000 mm1110 x 1110 mm82.5 mm140 mm15 mmN 250EI 12061.1 kgStainless steel447936
