ACO Access Cover UNIFACE GS/FR

Product benefits

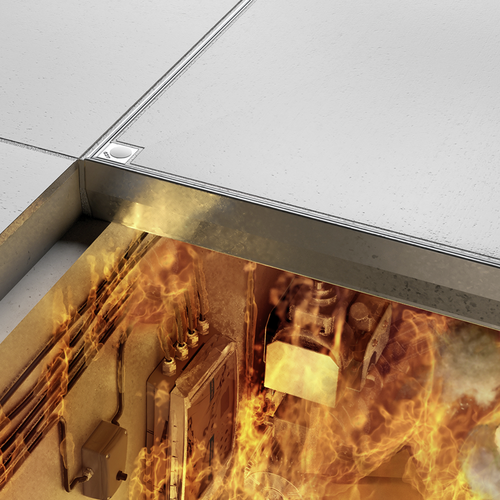

Fire resistance E120, EI1120, EI2120 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured with a fire resistance equipment
Covers are equipped by single seal, water and odour-tightness is not rated
Application of concrete C35/45 in cover lid

Product information

Meets declared load class up to N250 for all clear openings up to 1 m
Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless steel
Preciseness, design
Thanks to unique bending on the top no additional stripes for installation necessary
Easy opening after installation
Less friction between frame and cover
No sharp edges – improved safety
Rolled profiles for galvanized version of the cover are made from innovative material UltraSTEEL^®. It helps significantly reduce weight of the cover while maintaining the strength, stability and stiffness of the product.
Rolled profiles for stainless steel version are made from conventional steel sheet in thickness 2 mm.

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number	Downloads	Remember
Clear area (A x B)	Frame dimension (C x D)	[mm]	[mm]	[mm]	Class	Fire protection class	[kg]	Material	Item number	Downloads	Remember
635 mm x 635 cm	745 mm x 745 cm	82.5	70	15	L 15	E120 / EI120	37.1	Galvanised steel	447888
700 mm x 700 cm	810 mm x 810 cm	82.5	70	15	L 15	E120 / EI120	42.7	Galvanised steel	447889
800 mm x 800 cm	910 mm x 910 cm	82.5	70	15	L 15	E120 / EI120	52.2	Galvanised steel	447890
800 mm x 1000 cm	910 mm x 1110 cm	82.5	70	15	L 15	E120 / EI120	61.8	Galvanised steel	447891
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5	70	15	L 15	E120 / EI120	73.4	Galvanised steel	447891
600 mm x 800 cm	710 mm x 910 cm	82.5	110	15	N 250	E120 / EI120	45.7	Galvanised steel	447896
600 mm x 1000 cm	710 mm x 1110 cm	82.5	110	15	N 250	E120 / EI120	54	Galvanised steel	447897
635 mm x 635 cm	745 mm x 745 cm	82.5	110	15	N 250	E120 / EI120	41.6	Galvanised steel	447903
700 mm x 700 cm	810 mm x 810 cm	82.5	110	15	N 250	E120 / EI120	48	Galvanised steel	447904
800 mm x 800 cm	910 mm x 910 cm	82.5	110	15	N 250	E120 / EI120	58	Galvanised steel	447905
800 mm x 1000 cm	910 mm x 1110 cm	82.5	110	15	N 250	E120 / EI120	68.4	Galvanised steel	447906
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5	110	15	N 250	E120 / EI120	80.7	Galvanised steel	447907
600 x 600 mm	710 x 710 mm	82.5	70	15	M 125	E120 / EI120	25.2	Galvanised steel	447884
600 mm x 800 cm	710 mm x 910 cm	82.5	70	15	M 125	E120 / EI120	47.5	Galvanised steel	447885
600 mm x 1000 cm	710 mm x 1110 cm	82.5	70	15	M 125	E120 / EI120	50.4	Galvanised steel	447886
635 mm x 635 cm	745 mm x 745 cm	82.5	110	15	M 125	E120 / EI120	40.2	Galvanised steel	447898
700 mm x 700 cm	810 mm x 810 cm	82.5	110	15	M 125	E120 / EI120	46.2	Galvanised steel	447899
800 mm x 800 cm	910 mm x 910 cm	82.5	110	15	M 125	E120 / EI120	55.9	Galvanised steel	447900
800 mm x 1000 cm	910 mm x 1110 cm	82.5	110	15	M 125	E120 / EI120	66	Galvanised steel	447901
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5	110	15	M 125	E120 / EI120	78	Galvanised steel	447902
600 x 600 mm	710 x 710 mm	82.5	110	15	N 250	E120 / EI120	25.4	Galvanised steel	447895

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number
635 mm x 635 cm	745 mm x 745 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	37.1 kg	Galvanised steel	447888
700 mm x 700 cm	810 mm x 810 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	42.7 kg	Galvanised steel	447889
800 mm x 800 cm	910 mm x 910 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	52.2 kg	Galvanised steel	447890
800 mm x 1000 cm	910 mm x 1110 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	61.8 kg	Galvanised steel	447891
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	73.4 kg	Galvanised steel	447891
600 mm x 800 cm	710 mm x 910 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	45.7 kg	Galvanised steel	447896
600 mm x 1000 cm	710 mm x 1110 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	54 kg	Galvanised steel	447897
635 mm x 635 cm	745 mm x 745 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	41.6 kg	Galvanised steel	447903
700 mm x 700 cm	810 mm x 810 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	48 kg	Galvanised steel	447904
800 mm x 800 cm	910 mm x 910 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	58 kg	Galvanised steel	447905
800 mm x 1000 cm	910 mm x 1110 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	68.4 kg	Galvanised steel	447906
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	80.7 kg	Galvanised steel	447907
600 x 600 mm	710 x 710 mm	82.5 mm	70 mm	15 mm	M 125	E120 / EI120	25.2 kg	Galvanised steel	447884
600 mm x 800 cm	710 mm x 910 cm	82.5 mm	70 mm	15 mm	M 125	E120 / EI120	47.5 kg	Galvanised steel	447885
600 mm x 1000 cm	710 mm x 1110 cm	82.5 mm	70 mm	15 mm	M 125	E120 / EI120	50.4 kg	Galvanised steel	447886
635 mm x 635 cm	745 mm x 745 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	40.2 kg	Galvanised steel	447898
700 mm x 700 cm	810 mm x 810 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	46.2 kg	Galvanised steel	447899
800 mm x 800 cm	910 mm x 910 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	55.9 kg	Galvanised steel	447900
800 mm x 1000 cm	910 mm x 1110 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	66 kg	Galvanised steel	447901
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	78 kg	Galvanised steel	447902
600 x 600 mm	710 x 710 mm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	25.4 kg	Galvanised steel	447895

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number	Downloads	Remember
Clear area (A x B)	Frame dimension (C x D)	[mm]	[mm]	[mm]	Class	Fire protection class	[kg]	Material	Item number	Downloads	Remember
635 mm x 635 cm	745 mm x 745 cm	82.5	70	15	L 15	E120 / EI120	37.1	Galvanised steel	447888
700 mm x 700 cm	810 mm x 810 cm	82.5	70	15	L 15	E120 / EI120	42.7	Galvanised steel	447889
800 mm x 800 cm	910 mm x 910 cm	82.5	70	15	L 15	E120 / EI120	52.2	Galvanised steel	447890
800 mm x 1000 cm	910 mm x 1110 cm	82.5	70	15	L 15	E120 / EI120	61.8	Galvanised steel	447891
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5	70	15	L 15	E120 / EI120	73.4	Galvanised steel	447891
600 mm x 800 cm	710 mm x 910 cm	82.5	110	15	N 250	E120 / EI120	45.7	Galvanised steel	447896
600 mm x 1000 cm	710 mm x 1110 cm	82.5	110	15	N 250	E120 / EI120	54	Galvanised steel	447897
635 mm x 635 cm	745 mm x 745 cm	82.5	110	15	N 250	E120 / EI120	41.6	Galvanised steel	447903
700 mm x 700 cm	810 mm x 810 cm	82.5	110	15	N 250	E120 / EI120	48	Galvanised steel	447904
800 mm x 800 cm	910 mm x 910 cm	82.5	110	15	N 250	E120 / EI120	58	Galvanised steel	447905
800 mm x 1000 cm	910 mm x 1110 cm	82.5	110	15	N 250	E120 / EI120	68.4	Galvanised steel	447906
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5	110	15	N 250	E120 / EI120	80.7	Galvanised steel	447907
600 x 600 mm	710 x 710 mm	82.5	70	15	M 125	E120 / EI120	25.2	Galvanised steel	447884
600 mm x 800 cm	710 mm x 910 cm	82.5	70	15	M 125	E120 / EI120	47.5	Galvanised steel	447885
600 mm x 1000 cm	710 mm x 1110 cm	82.5	70	15	M 125	E120 / EI120	50.4	Galvanised steel	447886
635 mm x 635 cm	745 mm x 745 cm	82.5	110	15	M 125	E120 / EI120	40.2	Galvanised steel	447898
700 mm x 700 cm	810 mm x 810 cm	82.5	110	15	M 125	E120 / EI120	46.2	Galvanised steel	447899
800 mm x 800 cm	910 mm x 910 cm	82.5	110	15	M 125	E120 / EI120	55.9	Galvanised steel	447900
800 mm x 1000 cm	910 mm x 1110 cm	82.5	110	15	M 125	E120 / EI120	66	Galvanised steel	447901
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5	110	15	M 125	E120 / EI120	78	Galvanised steel	447902
600 x 600 mm	710 x 710 mm	82.5	110	15	N 250	E120 / EI120	25.4	Galvanised steel	447895

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Fire protection class	Weight	Material	Item number
635 mm x 635 cm	745 mm x 745 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	37.1 kg	Galvanised steel	447888
700 mm x 700 cm	810 mm x 810 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	42.7 kg	Galvanised steel	447889
800 mm x 800 cm	910 mm x 910 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	52.2 kg	Galvanised steel	447890
800 mm x 1000 cm	910 mm x 1110 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	61.8 kg	Galvanised steel	447891
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5 mm	70 mm	15 mm	L 15	E120 / EI120	73.4 kg	Galvanised steel	447891
600 mm x 800 cm	710 mm x 910 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	45.7 kg	Galvanised steel	447896
600 mm x 1000 cm	710 mm x 1110 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	54 kg	Galvanised steel	447897
635 mm x 635 cm	745 mm x 745 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	41.6 kg	Galvanised steel	447903
700 mm x 700 cm	810 mm x 810 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	48 kg	Galvanised steel	447904
800 mm x 800 cm	910 mm x 910 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	58 kg	Galvanised steel	447905
800 mm x 1000 cm	910 mm x 1110 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	68.4 kg	Galvanised steel	447906
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	80.7 kg	Galvanised steel	447907
600 x 600 mm	710 x 710 mm	82.5 mm	70 mm	15 mm	M 125	E120 / EI120	25.2 kg	Galvanised steel	447884
600 mm x 800 cm	710 mm x 910 cm	82.5 mm	70 mm	15 mm	M 125	E120 / EI120	47.5 kg	Galvanised steel	447885
600 mm x 1000 cm	710 mm x 1110 cm	82.5 mm	70 mm	15 mm	M 125	E120 / EI120	50.4 kg	Galvanised steel	447886
635 mm x 635 cm	745 mm x 745 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	40.2 kg	Galvanised steel	447898
700 mm x 700 cm	810 mm x 810 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	46.2 kg	Galvanised steel	447899
800 mm x 800 cm	910 mm x 910 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	55.9 kg	Galvanised steel	447900
800 mm x 1000 cm	910 mm x 1110 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	66 kg	Galvanised steel	447901
1000 mm x 1000 cm	1110 mm x 1110 cm	82.5 mm	110 mm	15 mm	M 125	E120 / EI120	78 kg	Galvanised steel	447902
600 x 600 mm	710 x 710 mm	82.5 mm	110 mm	15 mm	N 250	E120 / EI120	25.4 kg	Galvanised steel	447895
