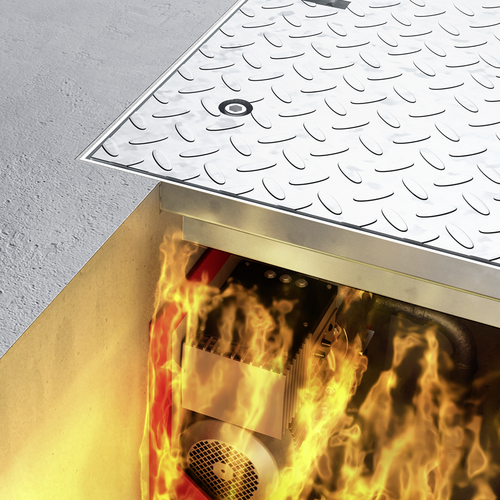

ACO Access Cover SOLID FR

Fire resistance E120, EI145, EI₂45 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured with a fire resistance equipment
Covers are equipped by single seal

Load capacity up to load class B125 for all clear openings up to 1 m
Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless steel
Cover weight ca 30 kg (600×600, B125)
Frame height 59,5 mm
Highest grade of stainless steel (1.4571) available on request

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Fire protection class	Weight	Item number	Downloads	Remember
[mm]	[mm]	[mm]	Class	Fire protection class	[kg]	Item number	Downloads	Remember
450 x 450	542 x 542	90	B 125	E120 / EI45	32.2	448102
300 x 300	392 x 392	90	B 125	E120 / EI45	18.4	448101
400 x 400	492 x 492	90	B 125	E120 / EI45	21	448096
500 x 500	592 x 592	90	B 125	E120 / EI45	28.7	448095
450 x 450	542 x 542	90	B 125	E120 / EI45	24.7	448094
300 x 300	392 x 392	90	B 125	E120 / EI45	14.7	448093
600 x 600	692 x 692	90	B 125	E120 / EI45	37.5	448112
600 x 600	692 x 692	90	B 125	E120 / EI45	46	448105
400 x 400	492 x 492	90	B 125	E120 / EI45	28.1	448104
500 x 500	592 x 592	90	B 125	E120 / EI45	36.5	448103

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Class	Fire protection class	Weight	Item number
450 x 450 mm	542 x 542 mm	90 mm	B 125	E120 / EI45	32.2 kg	448102
300 x 300 mm	392 x 392 mm	90 mm	B 125	E120 / EI45	18.4 kg	448101
400 x 400 mm	492 x 492 mm	90 mm	B 125	E120 / EI45	21 kg	448096
500 x 500 mm	592 x 592 mm	90 mm	B 125	E120 / EI45	28.7 kg	448095
450 x 450 mm	542 x 542 mm	90 mm	B 125	E120 / EI45	24.7 kg	448094
300 x 300 mm	392 x 392 mm	90 mm	B 125	E120 / EI45	14.7 kg	448093
600 x 600 mm	692 x 692 mm	90 mm	B 125	E120 / EI45	37.5 kg	448112
600 x 600 mm	692 x 692 mm	90 mm	B 125	E120 / EI45	46 kg	448105
400 x 400 mm	492 x 492 mm	90 mm	B 125	E120 / EI45	28.1 kg	448104
500 x 500 mm	592 x 592 mm	90 mm	B 125	E120 / EI45	36.5 kg	448103
