ACO Access Cover Paving Gs 80-fr 666547

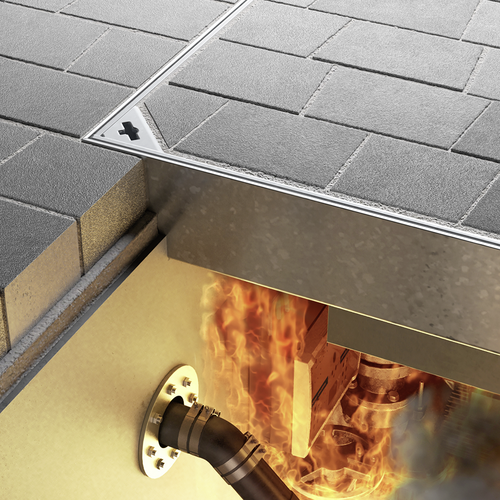

ACO Access Cover PAVING GS 80/FR

Product benefits

  • Fire resistance E120, EI145, EI₂45 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured by fire resistance equipment
  • Strong supports are welded underneath of the cover
  • Load capacity up to load class D400 for all clear openings up to 1 m
  • No concrete or any other additional structural infill necessary
Contact
Downloads

Product information

  • Type tested and certified according to EN 124
  • Sealed for water and odourtightness
  • Corrosion resistant – hot dip galvanized mild steel
  • Secure and time saving installation
  • No risk – load capacity always guaranteedn
  • 80/120 tray depth available
  • Secured in the frame by its own weight - child safety
  • Stainless steel version availble on request (1.4301 or 1.4571)
Clear area (A x B)Frame dimension (C x D)ClassFire protection classWeightMaterialItem

number		Remember
[mm][mm][kg]
400 x 400536 x 536A 15EI4524.6Galvanised steel (1.0037)447992
B 125EI4533.9Galvanised steel (1.0037)448003
C 250EI4548.7Galvanised steel (1.0037)448013
D 400EI4547.3Galvanised steel (1.0037)448022
500 x 500636 x 636A 15EI4531.5Galvanised steel (1.0037)447993
B 125EI4543.1Galvanised steel (1.0037)448004
C 250EI4565Galvanised steel (1.0037)448014
D 400EI4566.6Galvanised steel (1.0037)448023
400 x 600536 x 736A 15EI4540.5Galvanised steel (1.0037)447995
B 125EI4542.5Galvanised steel (1.0037)448010
C 250EI4562.2Galvanised steel (1.0037)448020
600 x 600736 x 736A 15EI4532.2Galvanised steel (1.0037)447994
B 125EI4553Galvanised steel (1.0037)448005
C 250EI4578.4Galvanised steel (1.0037)448015
D 400EI4588.9Galvanised steel (1.0037)448024
Clear area (A x B)Frame dimension (C x D)ClassFire protection classWeightMaterialItem

number
400 x 400 mm536 x 536 mmA 15EI4524.6 kgGalvanised steel (1.0037)447992
400 x 400 mm536 x 536 mmB 125EI4533.9 kgGalvanised steel (1.0037)448003
400 x 400 mm536 x 536 mmC 250EI4548.7 kgGalvanised steel (1.0037)448013
400 x 400 mm536 x 536 mmD 400EI4547.3 kgGalvanised steel (1.0037)448022
500 x 500 mm636 x 636 mmA 15EI4531.5 kgGalvanised steel (1.0037)447993
500 x 500 mm636 x 636 mmB 125EI4543.1 kgGalvanised steel (1.0037)448004
500 x 500 mm636 x 636 mmC 250EI4565 kgGalvanised steel (1.0037)448014
500 x 500 mm636 x 636 mmD 400EI4566.6 kgGalvanised steel (1.0037)448023
400 x 600 mm536 x 736 mmA 15EI4540.5 kgGalvanised steel (1.0037)447995
400 x 600 mm536 x 736 mmB 125EI4542.5 kgGalvanised steel (1.0037)448010
400 x 600 mm536 x 736 mmC 250EI4562.2 kgGalvanised steel (1.0037)448020
600 x 600 mm736 x 736 mmA 15EI4532.2 kgGalvanised steel (1.0037)447994
600 x 600 mm736 x 736 mmB 125EI4553 kgGalvanised steel (1.0037)448005
600 x 600 mm736 x 736 mmC 250EI4578.4 kgGalvanised steel (1.0037)448015
600 x 600 mm736 x 736 mmD 400EI4588.9 kgGalvanised steel (1.0037)448024
