ACO Access Cover Paving Gs 120-fr 666547

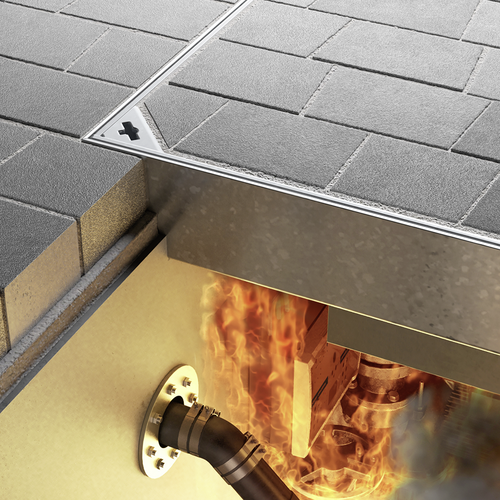

ACO Access Cover PAVING GS 120/FR

Product benefits

  • Fire resistance E120, EI145, EI₂45 (tested according to EN 1634-1 + A1, EN 1363-1, ČSN 73 0810) assured by fire resistance equipment
  • Strong supports are welded underneath of the cover
  • Load capacity up to load class D400 for all clear openings up to 1 m
  • No concrete or any other additional structural infill necessary
Contact
Downloads

Product information

  • Type tested and certified according to EN 124
  • Sealed for water and odourtightness
  • Corrosion resistant – hot dip galvanized mild steel
  • Secure and time saving installation
  • No risk – load capacity always guaranteedn
  • 80/120 tray depth available
  • Secured in the frame by its own weight - child safety
  • Stainless steel version availble on request (1.4301 or 1.4571)
Clear area (A x B)Frame dimension (C x D)ClassFire protection classWeightMaterialItem

number		Remember
[mm][mm][kg]
400 x 400539 x 539B 125EI4538.7Galvanised steel (1.0037)448030
C 250EI4554.1Galvanised steel (1.0037)448038
D 400EI4553.4Galvanised steel (1.0037)448049
500 x 500639 x 639B 125EI4548.8Galvanised steel (1.0037)448031
C 250EI4571.3Galvanised steel (1.0037)448039
D 400EI4573.9Galvanised steel (1.0037)448050
400 x 600539 x 739B 125EI4548.2Galvanised steel (1.0037)448045
C 250EI4568.7Galvanised steel (1.0037)448047
600 x 600739 x 739B 125EI4559.5Galvanised steel (1.0037)448032
C 250EI4585.7Galvanised steel (1.0037)448040
D 400EI4597.3Galvanised steel (1.0037)448051
Clear area (A x B)Frame dimension (C x D)ClassFire protection classWeightMaterialItem

number
400 x 400 mm539 x 539 mmB 125EI4538.7 kgGalvanised steel (1.0037)448030
400 x 400 mm539 x 539 mmC 250EI4554.1 kgGalvanised steel (1.0037)448038
400 x 400 mm539 x 539 mmD 400EI4553.4 kgGalvanised steel (1.0037)448049
500 x 500 mm639 x 639 mmB 125EI4548.8 kgGalvanised steel (1.0037)448031
500 x 500 mm639 x 639 mmC 250EI4571.3 kgGalvanised steel (1.0037)448039
500 x 500 mm639 x 639 mmD 400EI4573.9 kgGalvanised steel (1.0037)448050
400 x 600 mm539 x 739 mmB 125EI4548.2 kgGalvanised steel (1.0037)448045
400 x 600 mm539 x 739 mmC 250EI4568.7 kgGalvanised steel (1.0037)448047
600 x 600 mm739 x 739 mmB 125EI4559.5 kgGalvanised steel (1.0037)448032
600 x 600 mm739 x 739 mmC 250EI4585.7 kgGalvanised steel (1.0037)448040
600 x 600 mm739 x 739 mmD 400EI4597.3 kgGalvanised steel (1.0037)448051
