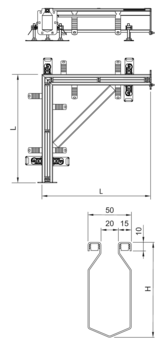

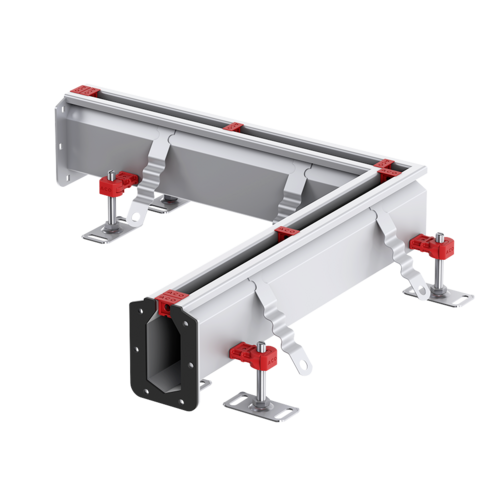

Corner unit
Product benefits
- Corrosion-resistant stainless steel (AISI 304/316).
- Depths ranging from 50 mm to 150 mm; segment lengths up to 3 m.
- Supports up to R50 load class.
- Narrow, V-shaped, fully drainable profile with no inner reinforcement pins.
- Compatible with existing gratings, silt baskets, FATs, and Vican brooms.
- External ribs provide structural integrity during concreting.
- Equipped with levelling feet for quick and easy setup.
Product information
- Fully inspectable and V-shaped design ensures complete drainage and superior cleanability.
- High flow rates and compatibility with long sloped applications.
- Fully cleanable, ensuring complete visibility and access.
- Ideal for high-care industrial zones such as food processing and butchery areas.
- Available in various depths and lengths to fit diverse applications.
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
