End cap

Product benefits

  • V-profile bottom design
    • Enhanced flow efficiency at low flow rates
    • Improved self-cleaning performance
  • Adjustable EasyFix levelling feet

Product information

  • Certified according to EN 1253-1 and EN 1433
    • Steel thickness min. 1,5 mm
    • Fully welded hygienic joints
    • Fully pickled and passivated
    • Edge infill
  • Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
  • Wide range of gratings including slip resistant solution
  • Silt basket and foul air trap (FAT) available as accessory
  • Anchors for fixing in concrete

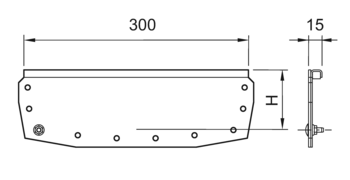

DimensionsMaterialItem

number
Remember
H
[mm]
501.4301448622
1.4404448623
651.4301448624
1.4404448625
801.4301448626
1.4404448627
951.4301448628
1.4404448629
1101.4301448630
1.4404448631
1251.4301448632
1.4404448633
1401.4301448634
1.4404448635
1551.4301448636
1.4404448637
1701.4301448638
1.4404448639
1851.4301448640
1.4404448641
2001.4301448642
1.4404448643
DimensionsMaterialItem

number
H
50 mm1.4301448622
50 mm1.4404448623
65 mm1.4301448624
65 mm1.4404448625
80 mm1.4301448626
80 mm1.4404448627
95 mm1.4301448628
95 mm1.4404448629
110 mm1.4301448630
110 mm1.4404448631
125 mm1.4301448632
125 mm1.4404448633
140 mm1.4301448634
140 mm1.4404448635
155 mm1.4301448636
155 mm1.4404448637
170 mm1.4301448638
170 mm1.4404448639
185 mm1.4301448640
185 mm1.4404448641
200 mm1.4301448642
200 mm1.4404448643
  • Type 1: ACO box channel - standard type - gully with adhesive bonding flange
  • Tilles floor
    • 1 Ceramic tiles
    • 2 Tile cement
    • 3 Mastic sealant
    • 4 Rubber infill
    • 5 Floor screed
    • 6 Water proof membrane
    • 7 Solid concrete floor slab

Typ 2: ACO box channel - gully with mechanical clamping flange

Tiled floor

  • 1 Ceramic tiles
  • 2 Tile cement
  • 3 Mastic sealant
  • 4 Rubber infill
  • 5 Floor screed
  • 6 Water proof membrane
  • 7 Solid concret floor slab
  • 8 Compacted soil

Typ 3: ACO box channel - gully with location flange

Resin floor

  • 1 Epoxy / resin floor
  • 2 Floor screed
  • 3 Rubber infill
  • 4 Solid concrete floor slab
  • 5 Compacted soil

Typ 4: ACO box channel - vinyl type - gully with location flange

Vinyl floor

  • 1 Vinyl floor
  • 2 Vinyl seal
  • 3 Floor screed
  • 4 Solid concrete floor slab
  • 5 Compacted soil

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 100 mm
  • Material (EN 1253): 1.4301

ACO tundish portable

Suitable for
  • Universal
Description
  • Base width x length (mm): 250 mm x 286 mm
  • Funnel width x length (mm): x
  • Funnel height (mm): 200 mm
  • Material (EN 1253): 1.4301

EasyFix stabilizing set

Suitable for
  • ACO hygienic and commercial box channels, width 300 mm
  • ACO vinyl box channels, width 270 mm
  • ACO modular box channel 270
Description

The EasyFix stabilizer is recommended for firm installation of ACO channels during the fixation stage.
