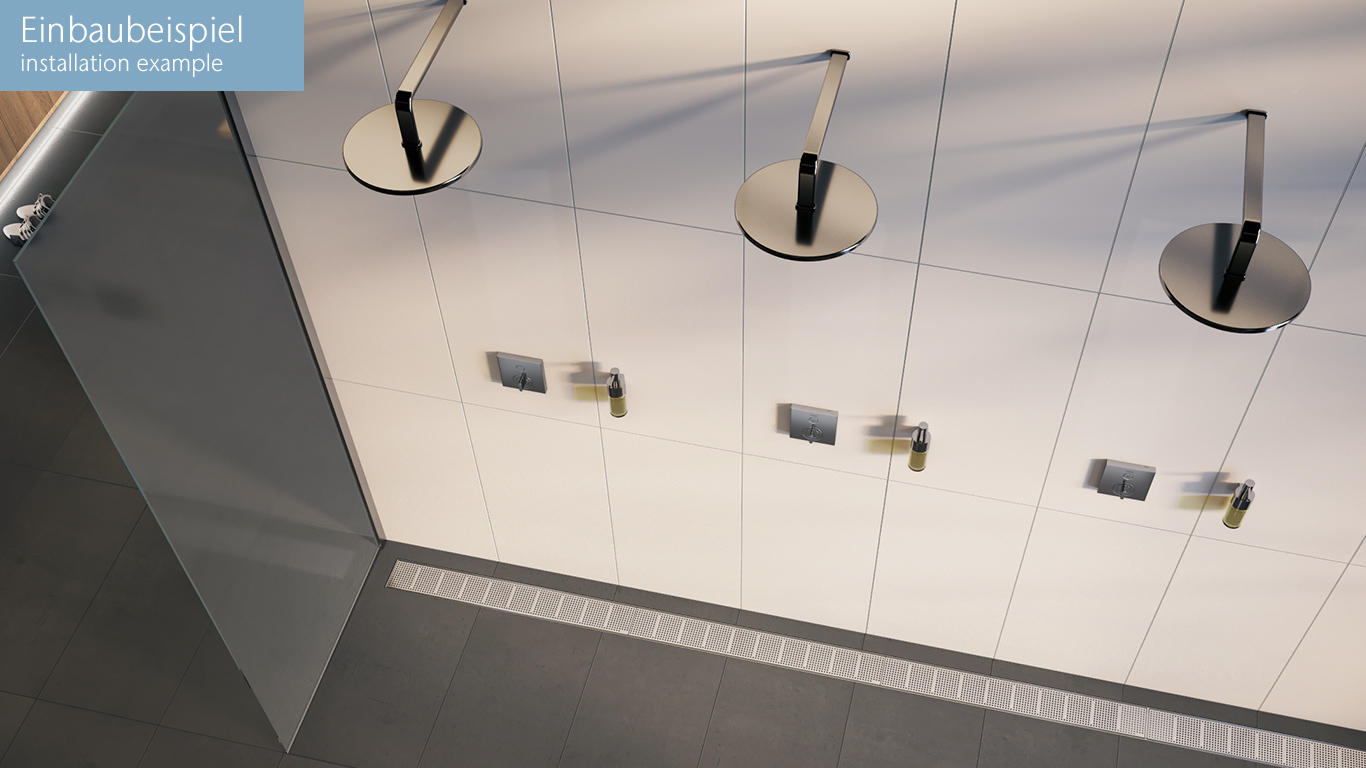

ACO ShowerDrain Public X with heat exchanger

Product benefits

  • Heat exchanger drinking water certified after DVGW/ SVGW/ WRAS
  • Efficiency up to 48% (10P)
  • Two efficiency classes selectable with heat exchanger 6P or 10P
  • Heat exchanger can be dismantled, thus easy access to the pipeline even in built-in condition
  • According to DIN EN 1253-1
  • Preassembled sealing membrane factory-made (W3-I according to German Standard DIN 18534)

Product information

  • Material:
    • Channel body: stainless steel
    • Heat exchanger: double-walled copper pipe
    • Connections heat exchanger: brass
  • Product class A (according to DIN EN 1253-1)
  • Load class: K3 (according to DIN EN 1253-1)
  • Channel width inside: 136 mm
  • Slope: Length and transverse slope
  • Discharge value (after DIN EN 1253-1):
    • 0.8 l/s with 10 mm build-up
    • 1.0 l/s with 20 mm build-up
  • Outlet socket: suitable for all push-fit pipe socket systems
  • Spigot design: 1.5°, DN 50
  • Odour trap: two-piece removable
  • Flange design: firmly moulded on (50 mm), preassembled sealing membrane
  • Flange: surrounding, without secondary drainage
  • Channel surface: pickle passivated

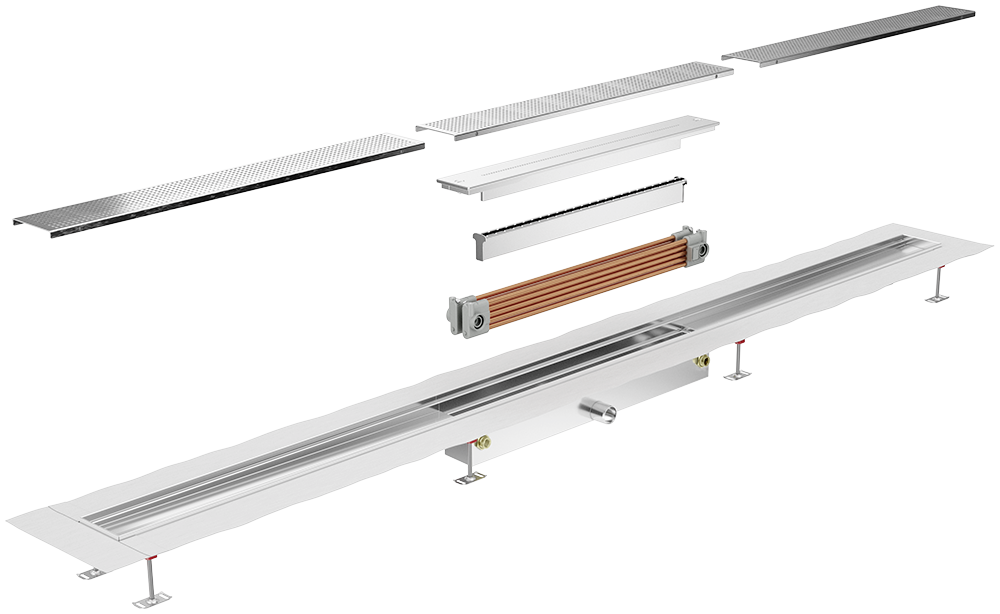

  • Incl. removable heat exchanger
    • 10P
    • Incl. audible leakage detector and non-return valve

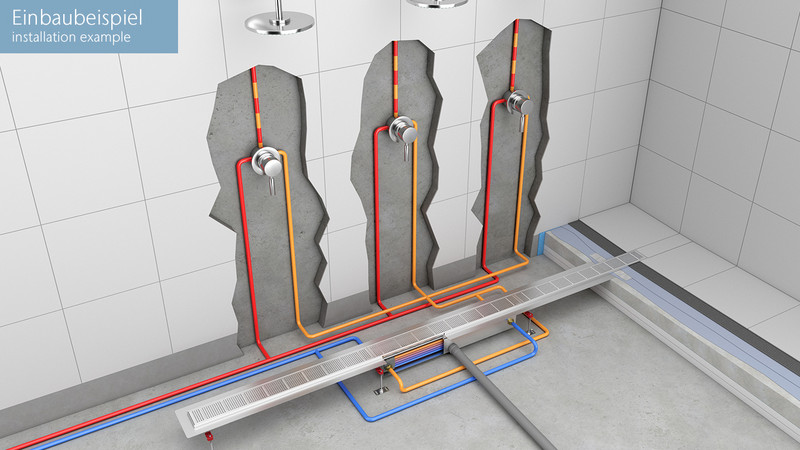

    • Fresh water connections 1/2" IT
    • Efficiency up to 48% (with shower head 9.2 l/min)
  • Assembly: pre-assembled
  • Scope of supply: channel body, hair strainer,
  • Scope of supply
  • Installation height up to OKE:
    • 10P: from 145 - 190 mm
  • Height of tile frame: 15 mm
  • Height-adjustability by means of height-adjustable feet:
    • 10P: 45 mm
  • Grating variant: Quadrato, slip-proof class C
  • Supplementary components: ACO ShowerStep

Infobox

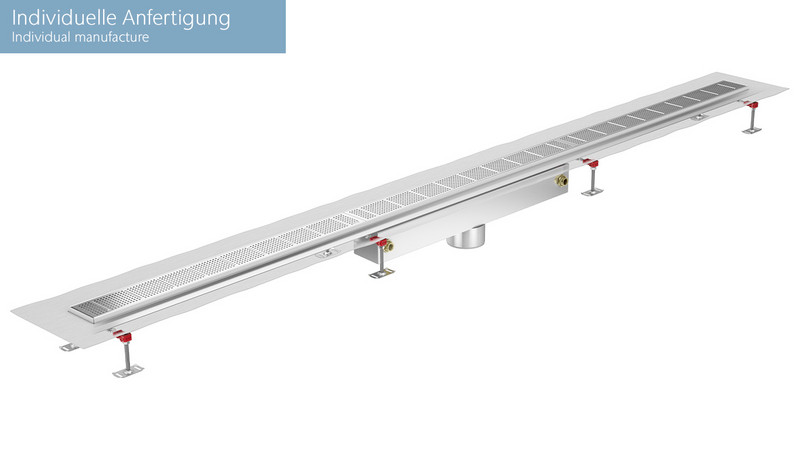

The ACO ShowerDrain Public X can also be customised on request:

  • Channel with heat exchanger 6P for lower installation height (from 115 mm UFL).
  • Channel length up to 6m
    • For channel lengths > 3,000 mm, two heat exchanger are necessary
    • On-site transport must be clarified in advance
  • For increasing material requirements: stainless steel 1.4404
  • Various connection types
    • Horizontal socket DN 70 (10P)
    • Vertical socket DN 50 / 70 / 100 / 125
  • Tile frame from 13 - 30 mm (e.g. for natural stone)
DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image300031001459011.63.30
DimensionsItem

number
L1L2B
Image3000 mm3100 mm145 mm9011.63.30
