ACO ShowerDrain Public 110 - Surrounding flange

Product benefits

  • Building material class: A1
  • Tested and practical fire protection solutions
  • Connects to all widely available sealing systems

Contact
Downloads

Product information

  • Gully bodies DN 70
  • Tested to DIN EN 1253-1
  • Stainless steel, material grade 304

Fire protection

Fire resistance class R 30 – R 120 (R 30 – R 90 when using a Fit-in) tested to Gen. Build. Sup.: Z-19.17-1527 for use of a fire protection bell foul air trap with heat shield.

Socket inclination: 90°

Flange designRecessFlow rateOdour trapWeightItem

number		Remember
[mm][l/s][kg]
ImageLocation flange150 x 1501.5
  • Without foul air trap
1.59579.00.003
ImageAdhesive bonding flange150 x 3501.5
  • Without foul air trap
2.19579.10.003
ImageMechanical clamping flange150 x 3501.5
  • Without foul air trap
3.29579.20.003

Socket inclination: 1,5°

Flange designRecessFlow rateOdour trapWeightItem

number		Remember
[mm][l/s][kg]
ImageLocation flange150 x 3601.5
  • Without foul air trap
1.29575.00.003
ImageAdhesive bonding flange230 x 3601.5
  • Without foul air trap
3.09575.10.003
ImageMechanical clamping flange230 x 3601.5
  • Without foul air trap
3.29575.20.003
Socket inclinationRecessFlow rateOdour trapWeightItem

number
ImageLocation flange90°150 x 150 mm1.5 l/s
  • Without foul air trap
1.5 kg9579.00.00
ImageAdhesive bonding flange90°150 x 350 mm1.5 l/s
  • Without foul air trap
2.1 kg9579.10.00
ImageMechanical clamping flange90°150 x 350 mm1.5 l/s
  • Without foul air trap
3.2 kg9579.20.00
ImageLocation flange1,5°150 x 360 mm1.5 l/s
  • Without foul air trap
1.2 kg9575.00.00
ImageAdhesive bonding flange1,5°230 x 360 mm1.5 l/s
  • Without foul air trap
3.0 kg9575.10.00
ImageMechanical clamping flange1,5°230 x 360 mm1.5 l/s
  • Without foul air trap
3.2 kg9575.20.00

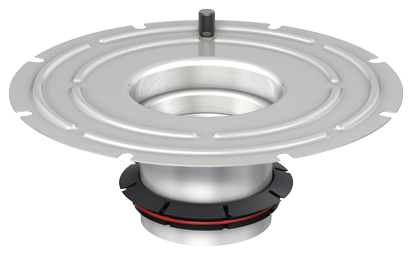

Upper part with adhering flange

Suitable for
  • Gully bodies Variant-CR 142
    • DN 70
  • Floor structures/Gully types: F
Description
  • Stainless steel, material grade 304
  • With sealing ring
  • Adjustable height: 45 – 110 mm
  • Weight: 1.5 kg
  • Rabattgruppe: 3
Item no.
9579.10.20

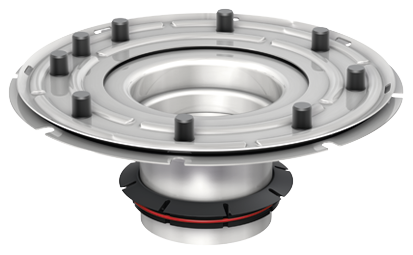

Upper part with clamping flange

Suitable for
  • Gully bodies Variant-CR 142
    • DN 70
  • Floor structures/Gully types: F
Description
  • Stainless steel, material grade 304
  • With seepage openings
  • With sealing ring
  • Adjustable height: 45 – 110 mm
  • Weight: 3.1 kg
  • Rabattgruppe: 3
Item no.
9579.10.25

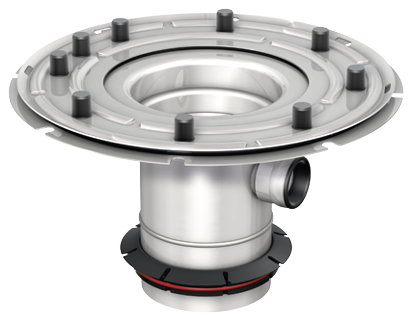

Upper part with clamping flange

Suitable for
  • Gully bodies Variant-CR 142
    • DN 70
  • Floor structures/Gully types: F
Description
  • Stainless steel, material grade 304
  • With lateral inlet and DN 40 push socket
  • With seepage openings
  • With sealing ring
  • Adjustable height: 110 – 160 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 3
Item no.
9579.10.30

Extension

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Stainless steel, material grade 304
  • Extension to max. 110 mm
  • With sealing ring
  • Weight: 0.8 kg
  • Rabattgruppe: 3
Item no.
9579.27.31

Push-in foul air trap

Suitable for
  • Gully body variant-CR 142
    • DN 70
    • Socket inclination: 1.5°
Description
  • Plastic
  • Weight: 0.1 kg
  • Rabattgruppe: 3
Item no.
9575.30.15

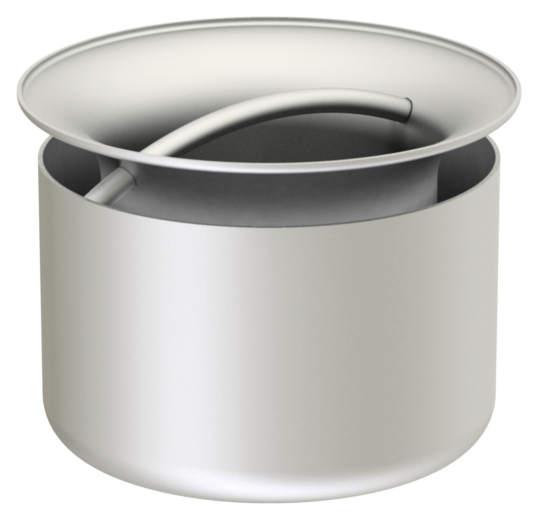

Odour trap

Suitable for
  • Gully body variant-CR 142
    • DN 70/DN 100
    • Socket inclination: 1.5°
  • Compact gullies, Variant-CR 142
    • DN 70/DN 100
    • Socket inclination: 1.5°
Description
  • From stainless steel, material grade 304
  • Use with retaining ring
    • 9579.13.26
  • Weight: 0.4 kg
  • Rabattgruppe: 3
Item no.
9579.13.15

Odour trap

Suitable for
  • Gully bodies Variant-CR 142
    • DN 70
    • Socket inclination: 90°
Description
  • Made of plastic
  • Weight: 0.1 kg
  • Rabattgruppe: 1
Item no.
5180.10.15

Fire protection-bell foul air trap

Suitable for
  • Gully bodies Variant-CR 142
    • DN 70
    • Socket inclination: 90°
Description
  • Fire and smoke lock for retro-fitting fire protection equipment to gullies
  • With Gen. Build. Sup. Appr.: Z‑19.17‑1527
  • Weight: 0.4 kg
  • Rabattgruppe: 1
Item no.
5181.20.15

Fit-in installation set

Suitable for
  • Gully bodies Variant-CR 142
    • DN 70
    • Socket inclination: 90°
    • With adhering and clamp flange
Description
  • Not inflammable as per building material class A1
  • For mortar free insertion in core bores: 225 mm
  • With/out fire protection set
  • Dimensions Fit-In
    • Diameter: 215 mm
    • Height: 150 mm
  • With Gen. Build.
    • abZ: Z‑19‑17‑1527
    • abG: Z‑19.53‑2294
  • Weight: 2.3 kg
  • Rabattgruppe: 3
Item no.
9390.07.40

Replacement roller ring

Suitable for
  • Bell foul air traps
    • 5180.10.15
    • 5181.20.15
Description
  • Made of rubber
  • DN 70
  • Weight: 0.2 kg
  • Rabattgruppe: 1
Item no.
5180.10.26

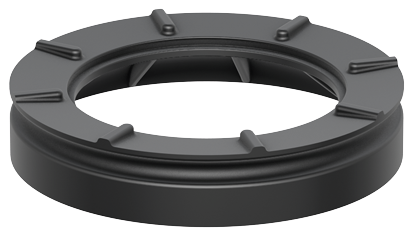

Support

Suitable for
  • Foul air trap
    • 9579.13.15
Description
  • Made of rubber
  • Weight: 0.2 kg
  • Rabattgruppe: 3
Item no.
9579.13.26

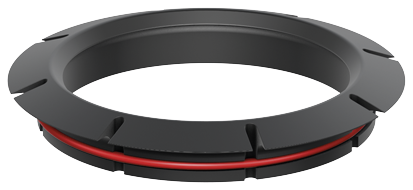

Combined ring

Suitable for
  • Top sections diameter: 125 mm
Description
  • Seal ring
  • Removable O-ring for drainage via the seepage opening
  • Weight: 0.1 kg
  • Rabattgruppe: 3
Item no.
9579.90.00
