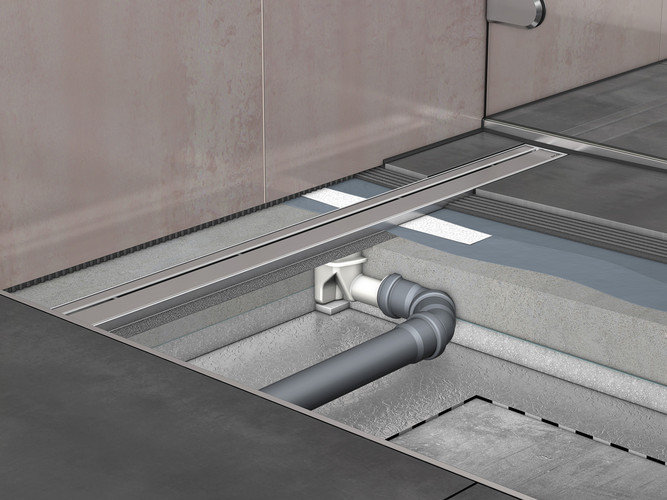

Channel body ACO ShowerDrain M+, Installation height top edge screed: 15 – 128 mm

Product benefits

  • Minimum installation height: 54 mm at socket inclination: 1.5°
  • Optional sealable diffusion openings
  • Sealing sleeve attached in the factory (fulfils W3-I according to German Standard DIN 18534)
  • Fulfils all sound insulation levels (Sst I-III to VDI 4100)
  • Electro-polished, dirt-repellent surfaces
  • Flexible for each installation situation
  • Suitable gully bodies rotatable by 360°

Product information

  • Made of stainless steel
  • Tested to EN 1253-1
  • Load class: K3
  • Noise control: Sound insulation accessories included in the scope of supply
  • Assembly: Modular system in connection with separate gully bodies
  • Height-adjustability: up to max. 74 mm, depending on the choice of gully body
  • Visible width: 84 mm
  • Tile frame
    • Height 12 mm
    • With integrated diffusion openings
  • Flange design: moulded, and sealing sleeve attached in the factor, with 85 mm overlap
  • Scope of supply channel body: Fixing material, height adjustment

Without wall flange

DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image6007001879010.87.06
7008001879010.87.00
8009001879010.87.01
90010001879010.87.02
100011001879010.87.03
120013001879010.87.04

Wall flange at rear

DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image6007001559010.87.16
7008001559010.87.10
8009001559010.87.11
90010001559010.87.12
100011001559010.87.13
120013001559010.87.14
DimensionsItem

number
L1L2B
Image600 mm700 mm187 mm9010.87.06
Image700 mm800 mm187 mm9010.87.00
Image800 mm900 mm187 mm9010.87.01
Image900 mm1000 mm187 mm9010.87.02
Image1000 mm1100 mm187 mm9010.87.03
Image1200 mm1300 mm187 mm9010.87.04
Image600 mm700 mm155 mm9010.87.16
Image700 mm800 mm155 mm9010.87.10
Image800 mm900 mm155 mm9010.87.11
Image900 mm1000 mm155 mm9010.87.12
Image1000 mm1100 mm155 mm9010.87.13
Image1200 mm1300 mm155 mm9010.87.14
