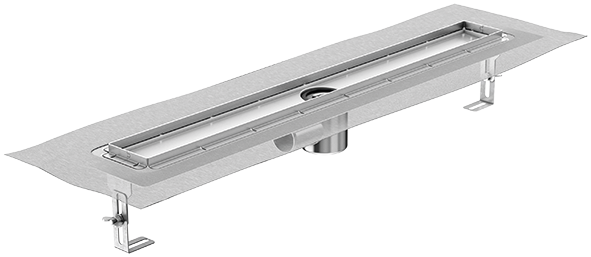

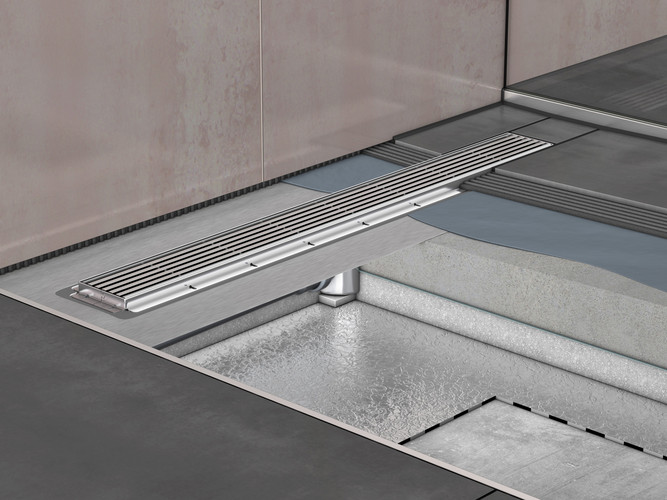

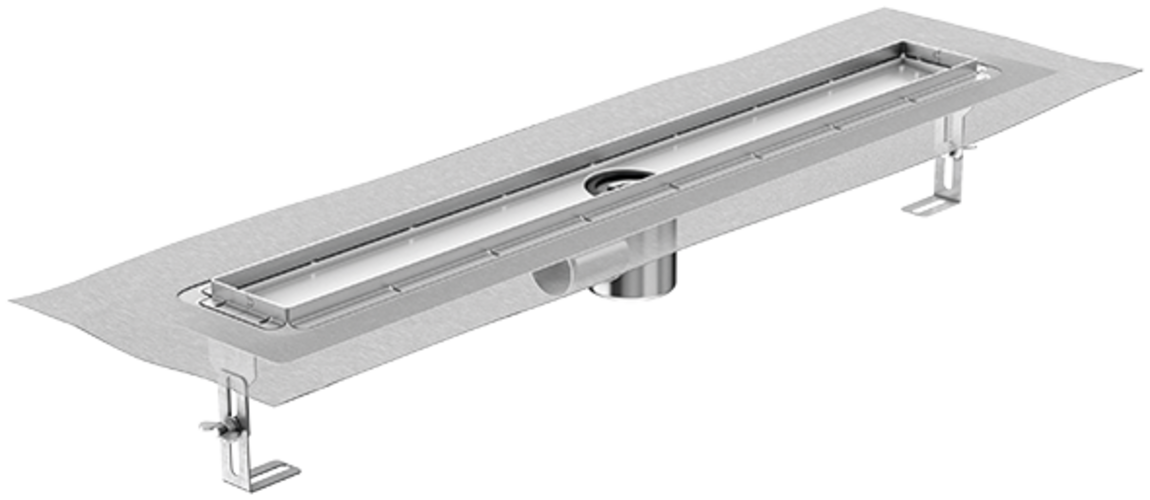

Channel body ACO ShowerDrain E+, Installation height top edge screed: 92 – 140 mm (DIN EN 1253‑1)

Channel Body With Installation Height 92 140 Mm Din En 12531 271159

Product benefits

Local secondary drainage possible by completion of the sealing
Sealing sleeve attached in the factory
Fulfils all sound insulation levels (SSt I-III to VDI 4100)
Free access to pipeline for optimum cleaning
Channel and gratings with electropolished surface for reduced dirt adhesion
Smooth-faced channel without disturbing components for optimal cleaning

Product information

Material: Stainless steel, material grade 304
Load class: Meets K3 requirements
Internal channel width: 80 mm
Flow rate:
- 0.4 l/s (with 10 mm build-up)
- 0.6 l/s (with 20 mm build-up as per EN 1253-1)
Outlet socket: Suitable for all push-fit pipe socket systems
Socket version: ND 40/ND 50
Foul air trap: 2-part, removable
Flange design: Permanently cast-on, factory attached sealing sleeve, with 70 mm overlap
Flange types: Surrounding wall flanges
Channel: Electropolished surface
Mounting: Ready for installation
Sound protection: Sound protection accessories
Integrated as standard
Total building height:
- 105 mm (with water trap 50 mm)
Height adjustability: 48 to 74 mm using heightadjustable feet

Infobox

Note: Special lengths on request.

		Dimensions			Item number		Downloads	Remember
		L1	L2	B
		[mm]	[mm]	[mm]
		600	700	187	9010.77.30	6
		700	800	187	9010.77.00	6
		800	900	187	9010.77.01	6
		900	1000	187	9010.77.02	6
		1000	1100	187	9010.77.03	6
		1200	1300	187	9010.77.04	6

		Dimensions			Item number		Downloads	Remember
		L1	L2	B
		[mm]	[mm]	[mm]
		600	700	155	9010.77.31	6
		700	800	155	9010.77.05	6
		800	900	155	9010.77.06	6
		900	1000	155	9010.77.07	6
		1000	1100	155	9010.77.08	6
		1200	1300	155	9010.77.09	6

	Dimensions			Item number
	L1	L2	B	Item number

	600 mm	700 mm	187 mm	9010.77.30
	700 mm	800 mm	187 mm	9010.77.00
	800 mm	900 mm	187 mm	9010.77.01
	900 mm	1000 mm	187 mm	9010.77.02
	1000 mm	1100 mm	187 mm	9010.77.03
	1200 mm	1300 mm	187 mm	9010.77.04

	600 mm	700 mm	155 mm	9010.77.31
	700 mm	800 mm	155 mm	9010.77.05
	800 mm	900 mm	155 mm	9010.77.06
	900 mm	1000 mm	155 mm	9010.77.07
	1000 mm	1100 mm	155 mm	9010.77.08
	1200 mm	1300 mm	155 mm	9010.77.09

Design-Gratings of electro-polished stainless steel

Design-Gratings of electro-polished stainless steel

ACO ShowerStep – difference wedge

ACO ShowerStep – difference wedge

9010.72.00: Hair trap

Suitable for

ACO ShowerDrain E+; C

Description

To prevent pipes becoming clogged with hair
Made from plastic, material PP
Simple removal and cleaning
Suitable for retro-fitting
Reduces the discharge value by 0.2 l/s
Weight: 0.1 kg
Rabattgruppe: 6

Item no.
9010.72.00

ACO EasyStop

Suitable for

ACO ShowerDrain E+; C

Description

Prevents drying out of the water seal in the odour trap
Reduces the discharge value by 0.25 l/s
Material: Plastic with membrane insert and lip seal
DN 50
Weight: 0.1 kg
Rabattgruppe: 6

Item no.
9010.79.24
