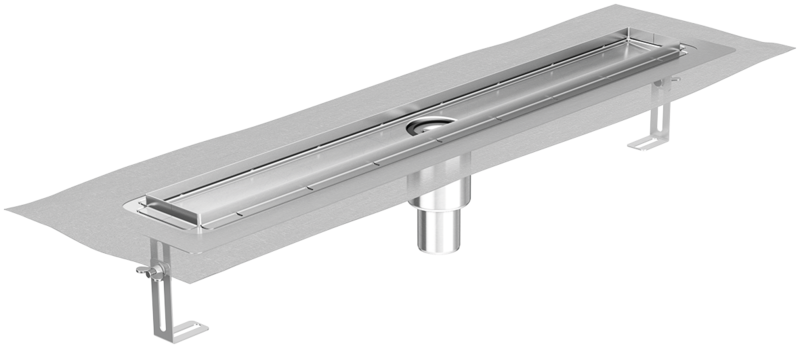

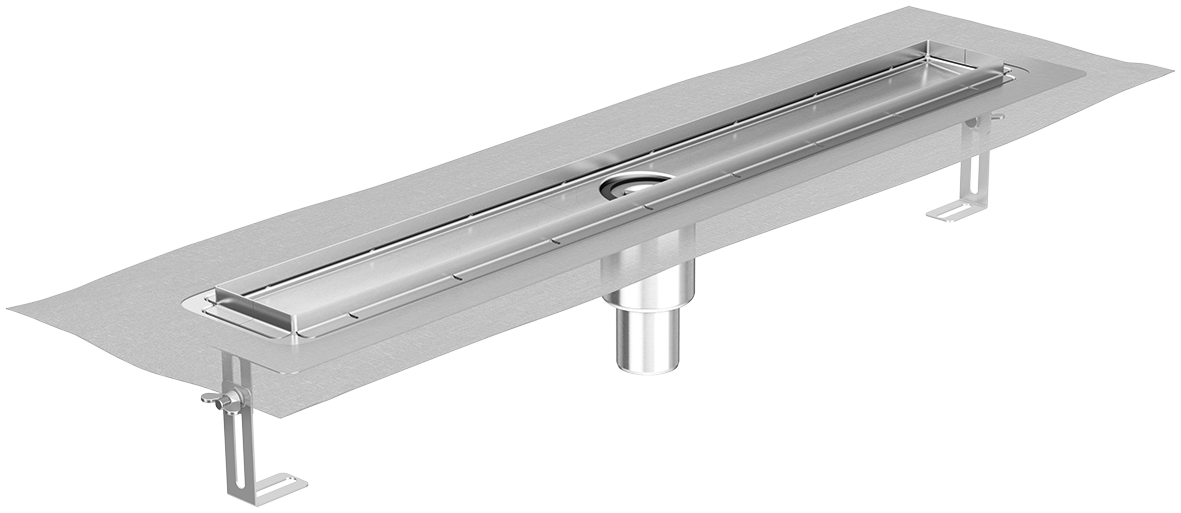

Channel body ACO ShowerDrain E+, Installation height top edge screed: 15 – 140 mm

Product benefits

  • Local secondary drainage possible by completion of the sealing
  • Sealing sleeve attached in the factory
  • Fulfils all sound insulation levels (SSt I-III to VDI 4100)
  • Free access to pipeline for optimum cleaning
  • Channel and gratings with electropolished surface for reduced dirt adhesion
  • Smooth-faced channel without disturbing components for optimal cleaning

Product information

  • Drainage channel DN 50 made of stainless steel, surface electro-polished
  • Socket inclination: 90°
  • Product class A (EN 1253-1)
  • Load class: K3 (EN 1253-1)
  • Assembly: ready to install
  • Incl. sound insulation accessories
  • Installation heights
    • To top edge of screed: 15 – 140 mm
    • Overall: 28 – 153 mm
  • Height-adjustability 74 mm by means of height-adjustable bases
  • Visible width: 84 mm, grating width 80 mm
  • Tile frame
    • Height 12 mm
    • With integrated diffusion openings for natural stone coverings
  • Discharge rates:
    • 0.4 l/s (with 10 mm build-up)
    • 0.6 l/s with 20 mm build-up (EN 1253‑ 1)
  • Odour seal: 2-piece, removable
  • Water seal height: 50 mm
  • Flange version: Moulded, sealing sleeve attached in the factory, with 70 mm overlap

Without wall flange

DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image6007001879010.77.346
7008001879010.77.206
8009001879010.77.216
90010001879010.77.226
100011001879010.77.236
120013001879010.77.246

Wall flange at rear

DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image6007001559010.77.356
7008001559010.77.256
8009001559010.77.266
90010001559010.77.276
100011001559010.77.286
120013001559010.77.296
DimensionsItem

number
L1L2B
Image600 mm700 mm187 mm9010.77.34
Image700 mm800 mm187 mm9010.77.20
Image800 mm900 mm187 mm9010.77.21
Image900 mm1000 mm187 mm9010.77.22
Image1000 mm1100 mm187 mm9010.77.23
Image1200 mm1300 mm187 mm9010.77.24
Image600 mm700 mm155 mm9010.77.35
Image700 mm800 mm155 mm9010.77.25
Image800 mm900 mm155 mm9010.77.26
Image900 mm1000 mm155 mm9010.77.27
Image1000 mm1100 mm155 mm9010.77.28
Image1200 mm1300 mm155 mm9010.77.29

9010.72.00: Hair trap

Suitable for
  • ACO ShowerDrain E+; C
Description
  • To prevent pipes becoming clogged with hair
  • Made from plastic, material PP
  • Simple removal and cleaning
  • Suitable for retro-fitting
  • Reduces the discharge value by 0.2 l/s
  • Weight: 0.1 kg
  • Rabattgruppe: 6
