Channel body ACO ShowerDrain C - Black, Installation height top edge screed: 80 – 128 mm (EN 1253‑1)

Product benefits

  • Minimum installation height
  • Meets requirements of all sound protection levels (SSt I-III in acc. with VDI 4100)
  • Free access to the pipeline for optimal cleaning
  • Factory-welded hydro-shaped gully, guarantees permanent tightness
  • Removable foul air trap for optimal cleaning
  • High drainage capacity
  • Passivated flange

Product information

  • Material: Stainless steel, material grade 304
  • "black massive" design cover including
  • Load class: K3
  • Internal channel width: 64 mm
  • Installation height: 92-140 mm (incl. 12 mm frame height)
  • Flow rate:
    • 0.72 l/s (WS50 with 10 mm build-up)
    • 0.91 l/s (WS50 with 20 mm build-up as per EN 1253-1)
  • Outlet socket: Suitable for all push-fit pipe socket systems
  • Socket version: ND 50
  • Foul air trap: 2-part, removable
  • Type of flange: surrounding flange with sealing membrane, surrounding flange, wall flange or without flange
  • Channel body: Pickle passivated
  • Mounting: Ready for installation
  • Sound protection (as standard)
  • Height adjustability: 48 respectively 74 mm using height-adjustable feet (to be ordered as an accessory)
  • Supplementary components: ACO ShowerStep and ACO EasyStop
DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
5856451309010.91.00
6857451309010.91.01
7858451309010.91.02
8859451309010.91.03
98510451309010.91.04
108511451309010.91.05
118512451309010.91.06
5856451229010.91.14
6857451229010.91.15
7858451229010.91.16
8859451229010.91.17
98510451229010.91.18
108511451229010.91.19
118512451229010.91.20
585709010.91.28
685709010.91.29
785709010.91.30
885709010.91.31
985709010.91.32
1085709010.91.33
1185709010.91.34
LengthItem

number
585 mm9010.91.00
685 mm9010.91.01
785 mm9010.91.02
885 mm9010.91.03
985 mm9010.91.04
1085 mm9010.91.05
1185 mm9010.91.06
585 mm9010.91.14
685 mm9010.91.15
785 mm9010.91.16
885 mm9010.91.17
985 mm9010.91.18
1085 mm9010.91.19
1185 mm9010.91.20
585 mm9010.91.28
685 mm9010.91.29
785 mm9010.91.30
885 mm9010.91.31
985 mm9010.91.32
1085 mm9010.91.33
1185 mm9010.91.34

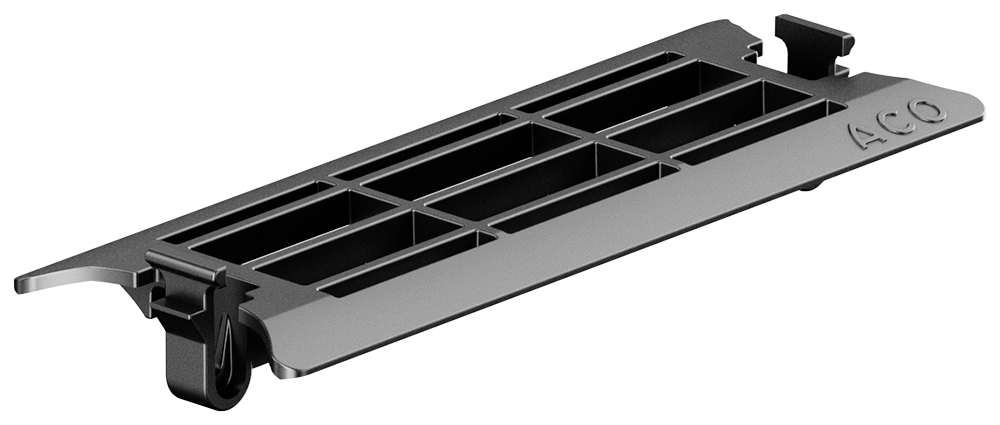

ACO EasyStop

Suitable for
  • ACO ShowerDrain E+; C
Description
  • Prevents drying out of the water seal in the odour trap
  • Material: Plastic with membrane insert and lip seal
  • DN 50
  • Weight: 0.1 kg

9010.88.56: ACO ShowerDrain C Mounting Bracket

Suitable for
  • Shower channel ACO ShowerDrain C
