ACO ShowerDrain B – channelbody and gratings


Product benefits

  • Minimum building height: 77 mm, unfinished floor level
  • Full access to pipeline for optimum cleaning
  • Stainless steel channel with screwed plastic gully,
  • No risk of leakage
  • Unique profile of grating reduces overshooting of water
  • 2 in 1 spigot with ND 40 and ND 50
  • Available with attached sealing sleeve

Product information

  • Material:
    • Channel: Stainless steel, material grade 304
    • Gully: Plastic (ABS)
  • Load class: K3
  • Internal channel width: 64 mm
  • Flow rate:
    • 0.35 l/s (without build-up)
    • 0.55 l/s (20 mm build-up as per EN1253-1)
  • Outlet socket: Suitable for all push-fit pipe socket systems
  • Socket version: ND 40/50
  • Foul air trap: 1-piece with removable submersible pipe
  • Flange design: Permanently cast-on, for optimum connection of a compound seal, alternatively with a sealing sleeve
  • Type of flange: Surrounding
  • Mounting: Ready for installation
  • Total installation height:
    • 89 mm (with water trap 30 mm)
  • Channel: Pickle passivated
  • Grating: Grinded
  • Grating variant: Design Slot included in scope of delivery
  • Supplementary components: ACO ShowerStep, ACO Lightline Pro and different gully bodies

Without sealing sleeve

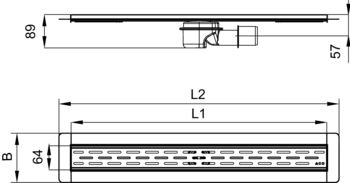

DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image6857451309010.78.70
7858451309010.78.71
8859451309010.78.72
98510451309010.78.73

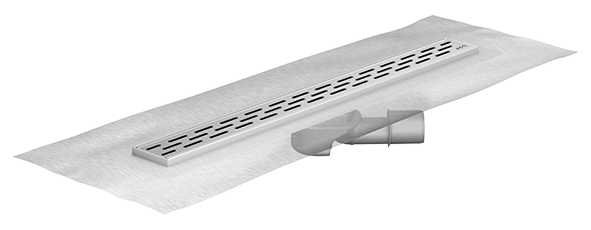

With attached sealing sleeve, 85 mm overlap

DimensionsItem

number
Remember
L1L2B
[mm][mm][mm]
Image6857451309010.79.70
7858451309010.79.71
8859451309010.79.72
98510451309010.79.73
DimensionsItem

number
L1L2B
Image685 mm745 mm130 mm9010.78.70
Image785 mm845 mm130 mm9010.78.71
Image885 mm945 mm130 mm9010.78.72
Image985 mm1045 mm130 mm9010.78.73
Image685 mm745 mm130 mm9010.79.70
Image785 mm845 mm130 mm9010.79.71
Image885 mm945 mm130 mm9010.79.72
Image985 mm1045 mm130 mm9010.79.73

Removable dirt trap

Suitable for
  • Gullies for Shower Channel
    • ACO ShowerDrain M
    • ACO ShowerDrain B
Description
  • Made from plastic, material PP
  • For retrofitting
  • Weight: 0.1 kg
