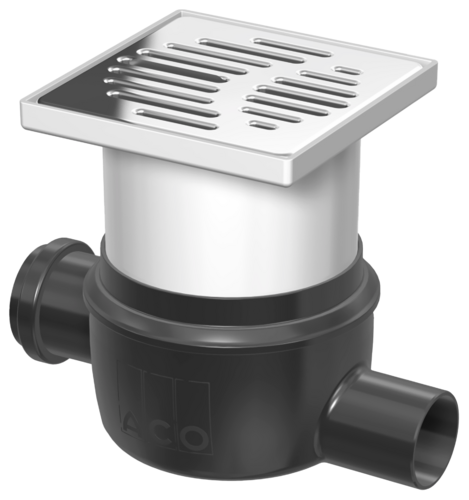

Complete gullies Easyflow, DN 50

Product benefits

  • Retrofit clamping flange
  • Optimum cleaning option
  • Adjustable height thin bed seal
  • Retrofit fire protection

Fire protection

Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887

Infobox

Note: Top sections with slot widths ≤ 8 mm are suitable for barefoot areas.

Without lateral inlet

VersionHeight-

adjustability
RecessFlow rateWeightItem

number
Remember
[mm][mm][l/s][kg]
ImageStandard15 – 96200 x 2001.50.92500.55.77
ImageStandard15 – 96200 x 2601.00.92500.05.77
ImageFlatline7 – 75200 x 2600.80.72505.05.77

With lateral inlet

VersionHeight-

adjustability
RecessFlow rateWeightItem

number
Remember
[mm][mm][l/s][kg]
ImageStandard15 – 96200 x 3301.01.12500.00.77
ImageFlatline7 – 75200 x 3300.80.92505.00.77
VersionHeight-

adjustability
RecessFlow rateWeightItem

number
ImageStandard15 – 96 mm200 x 200 mm1.5 l/s0.9 kg2500.55.77
ImageStandard15 – 96 mm200 x 260 mm1.0 l/s0.9 kg2500.05.77
ImageFlatline7 – 75 mm200 x 260 mm0.8 l/s0.7 kg2505.05.77
ImageStandard15 – 96 mm200 x 330 mm1.0 l/s1.1 kg2500.00.77
ImageFlatline7 – 75 mm200 x 330 mm0.8 l/s0.9 kg2505.00.77

Thin-bed flange

Suitable for
  • All Easyflow top sections
    • 2500.77.11.
    • 2700.77.11
    • 2700.77.12
  • Top sections with socket diameter: 125 mm
Description
  • Flange made of plastic with sprayed on non-woven material
  • Suitable for holding liquid seals applied on site using the thin bed method
  • Weight: 0.2 kg

Extension

Suitable for
  • All Easyflow floor drains
  • Top sections
    • Socket diameter 125 mm
  • Walk-in with gully sockets
Description
  • Made of plastic
  • Suitable for taking plastic top sections and clamping flanges
  • With lip seal
  • For deeper installation of floor gullies
  • Weight: 0.3 kg

Thin-bed flange

Suitable for
  • All Easyflow top sections
    • 2500.77.11
    • 2700.77.11
    • 2700.77.12
  • Top section with socket diameter 125 mm
Description
  • Plastic flange with sprayed-on fleece
  • Suitable for taking liquid sealants added on-site using thin bed process
  • Weight: 0.2 kg

Compressed seal flange

Suitable for
  • All Easyflow floor drains
Description
  • Plastic flange
  • Loose flange made from stainless steel
  • Suitable for taking sealants foils added on-site for sealing layers for point drainage
  • Weight: 0.6 kg

Odour stop

Suitable for
  • Floor gullies, Easyflow
    • Standard
    • DN 50
Description
  • Prevents unpleasant odours from the sewage system, irrespective of the water seal height
  • Weight: 0.1 kg

Odour stop

Suitable for
  • Floor gullies, Easyflow
    • Flatline
    • DN 50
Description
  • Prevents unpleasant odours from the sewage system, irrespective of the water seal height
  • Weight: 0.1 kg

Fire protection set

Suitable for
  • Floor gullies, Easyflow
    • DN 50
    • Socket inclination: 90°
Description
  • Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
  • Discharge value of the gully body reduces by 0.5 l/s in use
  • Water seal height 50 mm
  • Consisting of
    • Odour trap with heat shield
    • Fire protection cartridge
  • German approval
    • AbZ. Z‑19.17‑2159
    • abG: Z-19.53-2442
  • Weight: 0.2 kg

Fit-in installation set

Suitable for
  • Floor gullies, Easyflow
    • Socket inclination: 90°
  • DN 50
Description
  • Non-combustible
    • Building material class A1
  • For mortar-free installation in core drills: Ø 225 mm
  • Fit-in dimensions
    • Ø: 215 mm
    • Height: 139 mm
  • German approval
    • AbZ. Z‑19.17‑2159
    • abG: Z-19.53-2442
  • Weight: 3.1 kg

Frame for adjusting height

Suitable for
  • Top section
    • 2500.77.11
  • Easyflow floor gullies – complete gullies
    • 2505.05.77
    • 2505.00.77
  • Gully body
    • 620392
    • 620393
    • 620394
Description
  • Made of plastic
  • To raise the edge of the tiles from 7 to 14 mm
  • Weight: 0.1 kg
