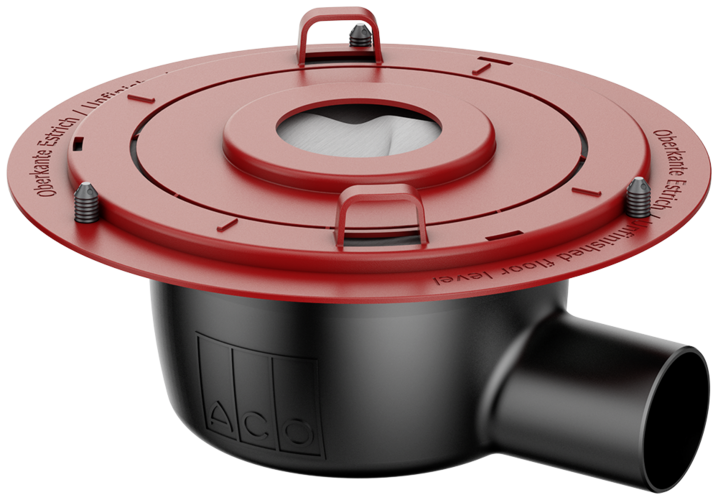

Single gully - ACO Sanitary Gully Easyflow+

Product benefits

  • Minimal installation height: 70 mm
  • Designed for different tile heights
  • Choice of different top sections and grate sizes
  • Flexible adaption to the tile layout

Product information

  • Material: Plastic
  • Socket version: ND50
  • Flow rates according to EN 1253-1:
    • 0.9 l/s (WS50 with 20mm build-up)
    • 0.7 l/s (WS50 with 10mm build-up)
    • 0.8 l/s (WS30 with 20mm build-up)
    • 0.6 l/s (WS30 with 10mm build-up)
  • Foul air trap: one-piece, removable
  • Incl. protective top cover
  • Height adjustability: stufenweise höhenverstellbar
  • Supplementary components:
    • Odour stop

Fire protection

Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887

Without lateral inlet

Nominal widthVersionRecessDescriptionItem

number
Remember
[mm][l/s]
ImageDN 50Standard240 x 240
  • Socket inclination: 90°
  • Flow rate: 1.1
  • Water trap depth: 50 mm
2019.50.912
ImageDN 50Standard240 x 300
  • Socket inclination: 1,5°
  • Flow rate: 0.9
  • Water trap depth: 50 mm
2015.50.912
ImageDN 50Flatline240 x 300
  • Socket inclination: 1,5°
  • Flow rate: 0.8
  • Water trap depth: 30 mm
2015.30.912

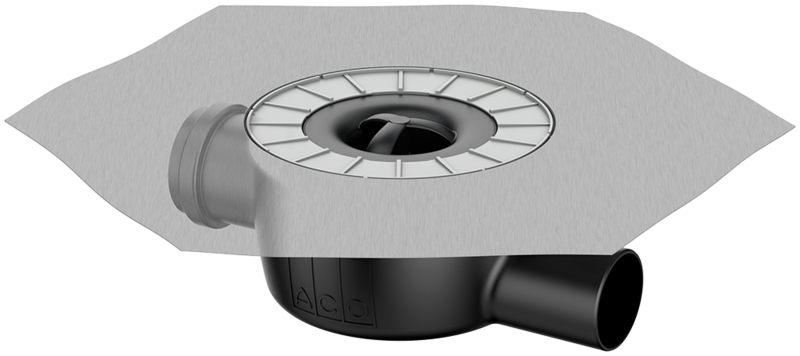

With lateral inlet

Nominal widthVersionRecessDescriptionItem

number
Remember
[mm][l/s]
ImageDN 50Standard240 x 330
  • Socket inclination: 1,5°
  • Flow rate: 0.9
  • Water trap depth: 50 mm
2515.50.912
ImageDN 50Flatline240 x 330
  • Socket inclination: 1,5°
  • Flow rate: 0.8
  • Water trap depth: 30 mm
2515.30.912
VersionNominal widthRecessDescriptionItem

number
ImageWithout lateral inletStandardDN 50240 x 240 mm
  • Socket inclination: 90°
  • Flow rate: 1.1 l/s
  • Water trap depth: 50 mm
  • With
2019.50.91
ImageWithout lateral inletStandardDN 50240 x 300 mm
  • Socket inclination: 1,5°
  • Flow rate: 0.9 l/s
  • Water trap depth: 50 mm
  • With
2015.50.91
ImageWithout lateral inletFlatlineDN 50240 x 300 mm
  • Socket inclination: 1,5°
  • Flow rate: 0.8 l/s
  • Water trap depth: 30 mm
  • With
2015.30.91
ImageWith lateral inletStandardDN 50240 x 330 mm
  • Socket inclination: 1,5°
  • Flow rate: 0.9 l/s
  • Water trap depth: 50 mm
  • With
2515.50.91
ImageWith lateral inletFlatlineDN 50240 x 330 mm
  • Socket inclination: 1,5°
  • Flow rate: 0.8 l/s
  • Water trap depth: 30 mm
  • With
2515.30.91

Fire protection set

Suitable for
  • Floor gullies, Easyflow
    • DN 50
    • Socket inclination: 90°
Description
  • Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
  • Discharge value of the gully body reduces by 0.5 l/s in use
  • Water seal height 50 mm
  • Consisting of
    • Odour trap with heat shield
    • Fire protection cartridge
  • German approval
    • AbZ. Z‑19.17‑2159
    • abG: Z-19.53-2442
  • Weight: 0.2 kg
  • Rabattgruppe: 2

Odour stop

Suitable for
  • Floor gullies, Easyflow
    • Standard
    • DN 50
Description
  • Prevents unpleasant odours from the sewage system, irrespective of the water seal height
  • Weight: 0.1 kg
  • Rabattgruppe: 2

Odour stop

Suitable for
  • Floor gullies, Easyflow
    • Flatline
    • DN 50
Description
  • Prevents unpleasant odours from the sewage system, irrespective of the water seal height
  • Weight: 0.1 kg
  • Rabattgruppe: 2

Fit-in installation set

Suitable for
  • Floor gullies, Easyflow
    • Socket inclination: 90°
  • DN 50
Description
  • Non-combustible
    • Building material class A1
  • For mortar-free installation in core drills: Ø 225 mm
  • Fit-in dimensions
    • Ø: 215 mm
    • Height: 139 mm
  • German approval
    • AbZ. Z‑19.17‑2159
    • abG: Z-19.53-2442
  • Weight: 3.1 kg
  • Rabattgruppe: 2

Top frame with grating

Description
  • Rabattgruppe: 2

Adjustable height

Description
  • Rabattgruppe: 2

Top frame with grating

Description
  • Rabattgruppe: 2

Adjustable height

Description
  • Rabattgruppe: 2

2019.10.99: ACO Montagehilfe Easyflow PLus

Description
  • Rabattgruppe: 2

Top frame

Suitable for
  • ACO Sanitary Gully Easyflow+ and design gratings
Description
  • Top frame (plastic)
  • Frame (stainless steel)
  • 140x140mm
  • Weight: 0.1 kg
  • Rabattgruppe: 6
