Gully Body Dn 50 Dn 100 With Supporting Edge 271073

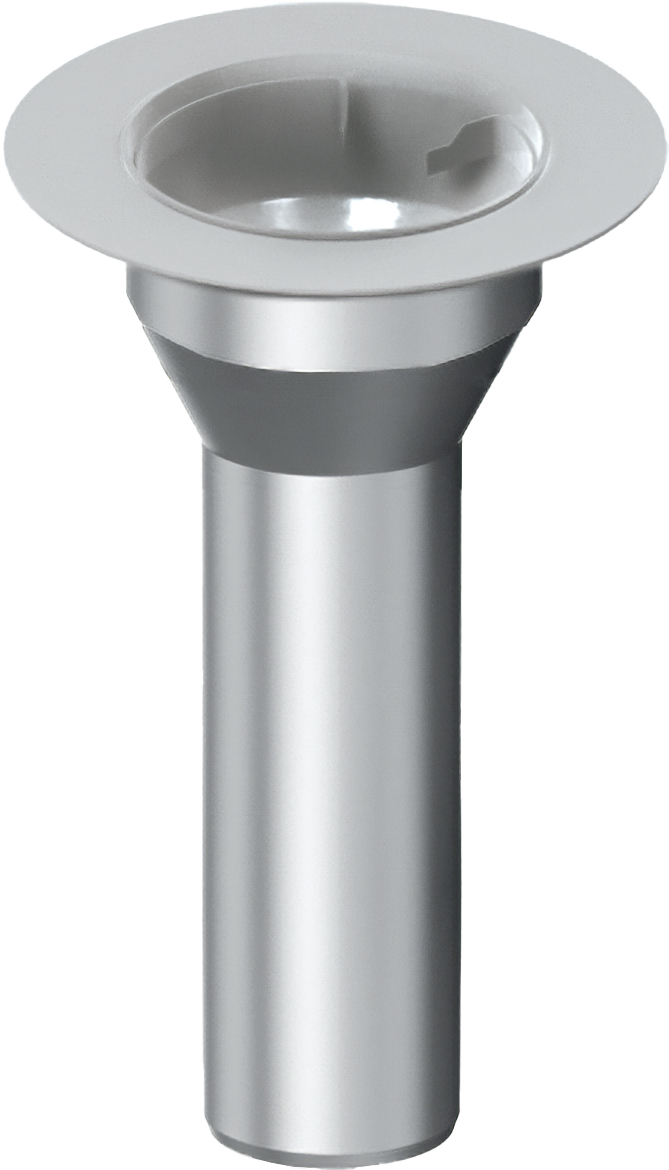

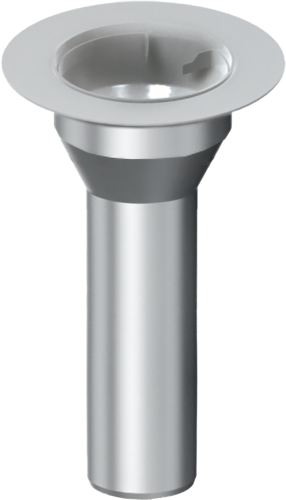

Gully body, DN 50 – DN 100 with supporting edge

Product information

  • Sealed with liquid plastic
    • Thickness: 2 mm
  • For ring strainer/strainer lid
  • Length: 300 mm
Nominal widthVersionDimensionsWeightItem

number		Remember
d1d2d3l1l2
[mm][mm][mm][mm][mm][kg]
ImageDN 70With supporting rim731171903003121.550811607013
DN 100With supporting rim1021402453003133.20174.42.7513
Nominal widthWeightItem

number
ImageDN 701.5 kg508116070
ImageDN 1003.2 kg0174.42.75
Artikel-Nr. StutzenneigungMit Sieb​​Ablaufleistung​Mit Ringsieb und GM-X Rohr​​Ablaufleistung
Artikel-Nr.[l/s]Artikel-Nr.[l/s]
0174.42.7390°0174.52.476,00174.52.511,1
0174.42.740174.96.825,50174.52.561,3
0174.42.750174.52.497,00174.52.571,3

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 70
  • h = 11 mm
  • d = 117 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.96.82

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 100
  • h = 8 mm
  • d = 141 mm
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.52.49

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • Direct balcony drain with supporting edge
Description
  • Made of stainless steel
  • DN 50
  • h = 9 mm
  • d = 98 mm
  • d1 = 55 mm
  • Weight: 0.1 kg
Item no.
0174.52.51

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • With/without bell, with compression seal flange
    • With supporting edge
    • With adhesive flange
Description
  • Made of stainless steel
  • DN 70
  • h = 12 mm
  • d = 118 mm
  • d1 = 76 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.52.56

Ring strainer

Description
  • Made of stainless steel
  • DN 100
  • h = 10 mm
  • d = 141 mm
  • d1 = 103 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.52.57

Nominal widthVersionDimensionsWeightItem

number		Remember
d1d2d3l1l2
[mm][mm][mm][mm][mm][kg]
ImageDN 70With supporting rim731171903003121.550811607013
DN 100With supporting rim1021402453003133.20174.42.7513
Nominal widthWeightItem

number
ImageDN 701.5 kg508116070
ImageDN 1003.2 kg0174.42.75

Artikel-Nr. StutzenneigungMit Sieb​​Ablaufleistung​Mit Ringsieb und GM-X Rohr​​Ablaufleistung
Artikel-Nr.[l/s]Artikel-Nr.[l/s]
0174.42.7390°0174.52.476,00174.52.511,1
0174.42.740174.96.825,50174.52.561,3
0174.42.750174.52.497,00174.52.571,3
