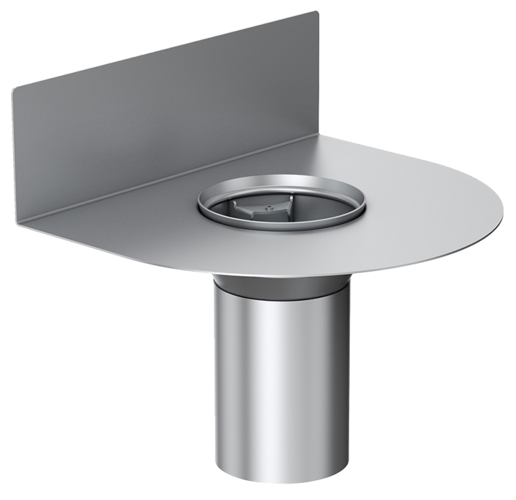

Gully body ACO direct balcony drain with upstand for the wall


Version: without formwork bell

Nominal widthFlow rate as required by DINSocket inclinationDimensionsItem

number
Remember
d1l1l2L3
[l/s][mm][mm][mm][mm]
DN 506.090°53188200300174.58.80
DN 705.590°73188200300174.58.81
DN 1007.090°102188200300174.58.82

Version: With bell

Nominal widthFlow rate as required by DINSocket inclinationDimensionsItem

number
Remember
d1d2l1l2L3
[l/s][mm][mm][mm][mm][mm]
DN 506.090°5373188200300174.58.83
DN 705.590°73102188200300174.58.84
DN 1007.090°102133188200300174.58.85
Nominal widthFlow rate as required by DINItem

number
DN 506.0 l/s0174.58.80
DN 705.5 l/s0174.58.81
DN 1007.0 l/s0174.58.82
DN 506.0 l/s0174.58.83
DN 705.5 l/s0174.58.84
DN 1007.0 l/s0174.58.85

Bottom section


Bottom section


Bottom section


Insulation casing


Insulation casing


Insulation casing


Grating holder

Description
  • Made of plastic
  • Weight: 0.2 kg

Grating holder

Description
  • Made of plastic
  • Weight: 0.2 kg

Grating holder

Description
  • Stainless steel, material grade 304
  • With plastic coating
  • Weight: 0.8 kg

Grating holder

Description
  • Stainless steel, material grade 304
  • With plastic coating
  • Weight: 1.1 kg

Grating holder

Description
  • Stainless steel, material grade 304
  • With strainer perforations
  • Weight: 0.7 kg

Grating holder

Description
  • Stainless steel, material grade 304
  • With strainer perforations
  • Weight: 0.6 kg

Casing bell

Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 50
  • Weight: 0.1 kg

Casing bell

Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 70
  • Weight: 0.2 kg

Casing bell

Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 100
  • Weight: 0.2 kg

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 70
  • h = 11 mm
  • d = 117 mm
  • Weight: 0.1 kg

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 100
  • h = 8 mm
  • d = 141 mm
  • Weight: 0.2 kg

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • With/without bell, with compression seal flange
    • With adhesive flange
Description
  • Made of stainless steel
  • Weight: 0.1 kg

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • With/without bell, with compression seal flange
    • With supporting edge
    • With adhesive flange
Description
  • Made of stainless steel
  • DN 70
  • h = 12 mm
  • d = 118 mm
  • d1 = 76 mm
  • Weight: 0.1 kg

Ring strainer

Description
  • Made of stainless steel
  • DN 100
  • h = 10 mm
  • d = 141 mm
  • d1 = 103 mm
  • Weight: 0.1 kg

Grating

Suitable for
  • Grating holders DN 50/DN 70
    • 0174.58.61, 0174.58.62, 0174.58.63
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 117 x 117 mm
  • Weight: 0.2 kg

Grating

Suitable for
  • Grating holder DN 100
    • 0174.58.71, 0174.58.72, 0174.58.73
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 142 x 142 mm
  • Weight: 0.3 kg

Grating

Description
  • Weight: 0.2 kg

Grating

Suitable for
  • Grating holders DN 70
    • 0174.58.61, 0174.58.62, 0174.58.63
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 117 x 117 mm
  • Weight: 0.2 kg

Grating

Suitable for
  • Grating holder DN 100
    • 0174.58.71, 0174.58.72, 0174.58.73
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 142 x 142 mm
  • Weight: 0.2 kg

Strainer pipe

Description
  • Stainless steel, material grade 304
  • Shape: round
  • Including sealing element
  • Weight: 0.8 kg

Strainer pipe

Description
  • Stainless steel, material grade 304
  • Shape: round
  • Including sealing element
  • Weight: 0.9 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg
