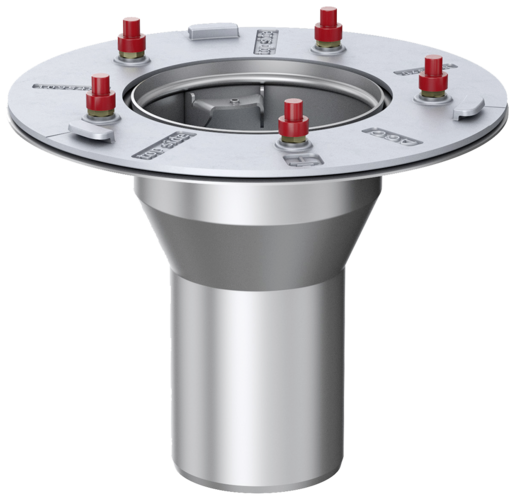

Gully bodies DN 50 – DN 100

	Nominal width	Socket inclination	Version	Dimensions					Item number	Downloads	Remember
				d1	d3	d4	l1	l2
				[mm]	[mm]	[mm]	[mm]	[mm]
	DN 50	90°	Mechanical clamping flange	53	123	286	188	200	0174.58.75
	DN 70	90°	Mechanical clamping flange	73	123	286	188	200	0174.58.76
	DN 100	90°	Mechanical clamping flange	102	146	314	188	200	0174.58.77
	DN 50	1,5°	Mechanical clamping flange	53		286	82	94	0174.58.78
	DN 70	1,5°	Mechanical clamping flange	73		286	82	94	0174.58.79

	Nominal width	Item number

	DN 50	0174.58.75
	DN 70	0174.58.76
	DN 100	0174.58.77

	DN 50	0174.58.78
	DN 70	0174.58.79

Bottom section

Item no.
0174.58.86

Bottom section

Item no.
0174.58.87

Bottom section

Item no.
0174.58.88

Insulation casing

Item no.
0174.59.09

Insulation casing

Item no.
0174.59.10

Insulation casing

Item no.
0174.59.11

Grating holder

Description

Made of plastic
Weight: 0.2 kg
Weight: 0.2 kg

Item no.
0174.58.61

Grating holder

Description

Made of plastic
Weight: 0.2 kg
Weight: 0.2 kg

Item no.
0174.58.71

Grating holder

Description

Stainless steel, material grade 304
With plastic coating
Weight: 1 kg
Weight: 0.8 kg

Item no.
0174.58.62

Grating holder

Description

Stainless steel, material grade 304
With plastic coating
Weight: 1 kg
Weight: 1.1 kg

Item no.
0174.58.72

Grating holder

Description

Stainless steel, material grade 304
With strainer perforations
Weight: 0.5 kg
Weight: 0.7 kg

Item no.
0174.58.73

Grating holder

Description

Stainless steel, material grade 304
With strainer perforations
Weight: 0.5 kg
Weight: 0.6 kg

Item no.
0174.58.63

Strainer

Suitable for

Balcony and terrace gullies
- Direct gully with supporting flange and with bell

Description

Made of stainless steel
Weight: 0.1 kg
DN 70
h = 11 mm
d = 117 mm
Weight: 0.1 kg

Item no.
0174.96.82

Strainer

Suitable for

Balcony and terrace gullies
- Direct gully with supporting flange and with bell

Description

Made of stainless steel
Weight: 0.1 kg
DN 100
h = 8 mm
d = 141 mm
Weight: 0.2 kg

Item no.
0174.52.49

Ring strainer

Suitable for

Balcony and terrace gullies
- Direct gully bodies

Description

Made of stainless steel
Weight: 0.1 kg
DN 70
h = 12 mm
d = 118 mm
d1 = 76 mm
Weight: 0.1 kg

Item no.
0174.52.56

Ring strainer

Suitable for

Balcony and terrace gullies
- Direct gully bodies

Description

Made of stainless steel
Weight: 0.1 kg
DN 100
h = 10 mm
d = 141 mm
d1 = 103 mm
Weight: 0.1 kg

Item no.
0174.52.57

Grating

Suitable for

Grating holders
- 0174.43.20
- 0174.43.22
- 0174.43.24
- 0174.43.46
- 0174.43.47
- 0174.43.48

Description

Stainless steel, material grade 304
Grating dimensions (R): 117 x 117 mm
Weight: 0.3 kg
Weight: 0.2 kg

Item no.
0174.52.58

Grating

Suitable for

Grating holder
- 0174.43.21
- 0174.43.23
- 0174.43.26

Description

Stainless steel, material grade 304
Grating dimensions (R): 142 x 142 mm
Weight: 0.3 kg
Weight: 0.3 kg

Item no.
0174.52.59

Grating

Suitable for

Grating holders
- 0174.43.20
- 0174.43.22
- 0174.43.24

Description

Stainless steel, material grade 304
Grating dimensions (R): 117 x 117 mm
Weight: 0.3 kg
Weight: 0.2 kg

Item no.
0174.52.60

Grating

Suitable for

Grating holder
- 0174.43.21
- 0174.43.23
- 0174.43.26

Description

Stainless steel, material grade 304
Grating dimensions (R): 142 x 142 mm
Weight: 0.3 kg
Weight: 0.2 kg

Item no.
0174.52.61

Strainer pipe

Description

Stainless steel, material grade 304
Shape: round
Including sealing element
Weight: 0.8 kg
Weight: 0.8 kg

Item no.
0174.58.64

Strainer pipe

Description

Stainless steel, material grade 304
Shape: round
Including sealing element
Weight: 0.8 kg
Weight: 0.9 kg

Item no.
0174.58.74

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
EPDM
Weight: 0.4 kg

Item no.
5169.20.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
PVC-weich
Weight: 0.4 kg

Item no.
5169.30.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
NBR/SBR
Weight: 0.5 kg

Item no.
5169.40.26
