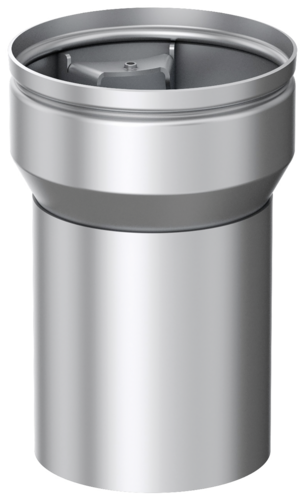

Gully Body ACO Direct Balcony Drain 271069

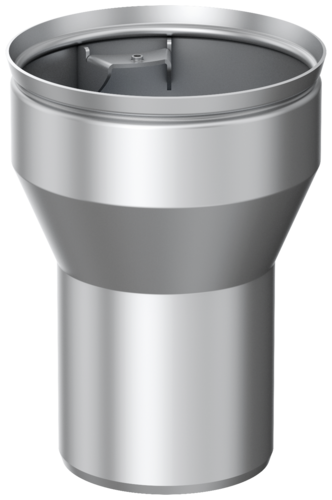

Gully Body ACO Direct Balcony Drain 378534

Gully body ACO direct balcony drain

Product benefits

  • Adjustable to local terrain thanks to modular approach

Contact
Downloads

Product information

  • Gully bodies DN 50 – DN 100
  • Stainless steel, material grade 304
  • For locally built concrete or ready-made concrete slabs
    • Balcony slab thicknesses: 120, 140, 160, 180 or 200 mm
  • For ring strainer/strainer lid
    • Strainer height not adjustable

Version: With bell

Nominal widthSocket inclinationDimensionsWeightItem

number		Remember
d1d2d3d4l1l2
[mm][mm][mm][mm][mm][mm][kg]
ImageDN 5090°53117120731001201.050174.58.4313
1201401.150174.58.4413
1401601.260174.58.4513
1601801.360174.58.4613
1802001.470174.58.4713
2002201.470174.58.4813
DN 7090°731171181021021201.150174.52.6413
1221401.320174.52.6713
1421601.490174.52.7013
1621801.660174.52.7613
1822001.830174.52.7913
2022201.830174.58.5213
2222401.830174.58.5413
DN 10090°1021401411331021201.80174.52.6513
1221402.080174.52.6813
1421602.360174.52.7113
1621802.650174.52.7713
1822002.930174.52.8013
2022202.930174.58.5313

Version: without formwork bell

Nominal widthSocket inclinationDimensionsItem

number		Remember
d1d3l2
[mm][mm][mm]
ImageDN 7090°731172000174.58.4013
DN 10090°1021402000174.58.5013
Nominal widthWeightItem

number
ImageDN 501.05 kg0174.58.43
ImageDN 501.15 kg0174.58.44
ImageDN 501.26 kg0174.58.45
ImageDN 501.36 kg0174.58.46
ImageDN 501.47 kg0174.58.47
ImageDN 501.47 kg0174.58.48
ImageDN 701.15 kg0174.52.64
ImageDN 701.32 kg0174.52.67
ImageDN 701.49 kg0174.52.70
ImageDN 701.66 kg0174.52.76
ImageDN 701.83 kg0174.52.79
ImageDN 701.83 kg0174.58.52
ImageDN 701.83 kg0174.58.54
ImageDN 1001.8 kg0174.52.65
ImageDN 1002.08 kg0174.52.68
ImageDN 1002.36 kg0174.52.71
ImageDN 1002.65 kg0174.52.77
ImageDN 1002.93 kg0174.52.80
ImageDN 1002.93 kg0174.58.53
ImageDN 700174.58.40
ImageDN 1000174.58.50

Casing bell

Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 50
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.43.50

Casing bell

Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 70
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.43.51

Casing bell

Description
  • Made of plastic (PE)
  • Can be pushed on
  • DN 100
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.43.52

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • Direct balcony drain with supporting edge
Description
  • Made of stainless steel
  • DN 50
  • h = 9 mm
  • d = 98 mm
  • d1 = 55 mm
  • Weight: 0.1 kg
Item no.
0174.52.51

Ring strainer

Suitable for
  • Balcony and terrace gullies
    • With/without bell, with compression seal flange
    • With supporting edge
    • With adhesive flange
Description
  • Made of stainless steel
  • DN 70
  • h = 12 mm
  • d = 118 mm
  • d1 = 76 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.52.56

Ring strainer

Description
  • Made of stainless steel
  • DN 100
  • h = 10 mm
  • d = 141 mm
  • d1 = 103 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.52.57

Grating holder

Description
  • Made of plastic
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.58.61

Grating holder

Description
  • Made of plastic
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.58.71

Grating holder

Description
  • Stainless steel, material grade 304
  • With plastic coating
  • Weight: 0.8 kg
  • Rabattgruppe: 13
Item no.
0174.58.62

Grating holder

Description
  • Stainless steel, material grade 304
  • With plastic coating
  • Weight: 1.1 kg
  • Rabattgruppe: 13
Item no.
0174.58.72

Grating holder

Description
  • Stainless steel, material grade 304
  • With strainer perforations
  • Weight: 0.7 kg
  • Rabattgruppe: 13
Item no.
0174.58.73

Grating holder

Description
  • Stainless steel, material grade 304
  • With strainer perforations
  • Weight: 0.6 kg
  • Rabattgruppe: 13
Item no.
0174.58.63

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 70
  • h = 11 mm
  • d = 117 mm
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.96.82

Strainer

Suitable for
  • Balcony and terrace gullies
    • Direct gully with supporting flange and with bell
Description
  • Made of stainless steel
  • DN 100
  • h = 8 mm
  • d = 141 mm
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.52.49

Grating

Suitable for
  • Grating holders DN 50/DN 70
    • 0174.58.61, 0174.58.62, 0174.58.63
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 117 x 117 mm
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.52.58

Grating

Suitable for
  • Grating holder DN 100
    • 0174.58.71, 0174.58.72, 0174.58.73
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 142 x 142 mm
  • Weight: 0.3 kg
  • Rabattgruppe: 13
Item no.
0174.52.59

Grating

Description
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.58.66

Grating

Suitable for
  • Grating holders DN 70
    • 0174.58.61, 0174.58.62, 0174.58.63
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 117 x 117 mm
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.52.60

Grating

Suitable for
  • Grating holder DN 100
    • 0174.58.71, 0174.58.72, 0174.58.73
Description
  • Stainless steel, material grade 304
  • Grating dimensions (R): 142 x 142 mm
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.52.61

Strainer pipe

Description
  • Stainless steel, material grade 304
  • Shape: round
  • Including sealing element
  • Weight: 0.8 kg
  • Rabattgruppe: 13
Item no.
0174.58.64

Strainer pipe

Description
  • Stainless steel, material grade 304
  • Shape: round
  • Including sealing element
  • Weight: 0.9 kg
  • Rabattgruppe: 13
Item no.
0174.58.74

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg
  • Rabattgruppe: 1
Item no.
5169.20.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg
  • Rabattgruppe: 1
Item no.
5169.30.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg
  • Rabattgruppe: 1
Item no.
5169.40.26
