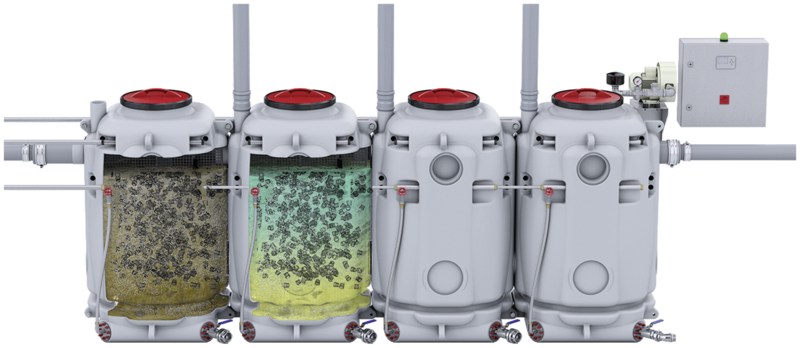

Waste water treatment plant ACO BioJet-P-OM

Product benefits

Specific reduction of greasy emulsions
Low cost of maintenance and management
Side channel blower, free from wear parts
Easy plug system
Modular system for easy upgrade
Ecological/cost-effective system due to customized operation time of the side channel blower

Product information

Biological wastewater treatment downstream of grease separators as per EN 1825/DIN 4040-100 for NS (2/4/5,5/7/8,5/10/15/20/25)
Low energy and user-friendly automatic version
To be installed indoors, free-standing
Bioreactor, tank made of polyethylene (LLD-PE)
Sealed odour-free installation
The following system upgrades are possible:
- Inspection window for visual check of fluidized bed
- Sedimentation unit for continuous sedimentation of the waste water, including automatic disposal of the solids
- Dosing of special microorganism and nutrient
- With bottom outlet DN 50 for maintenance.
Inlet and outlet DN 150, Connection port or nozzle for connection pipe with external diameter: 160 mm
Separate plant air extraction, connection nozzle with external diameter 110 mm
Electrical connection: 400 V/50 Hz/2.5 kW
Required air volume: 3 times space volume per hour

Infobox

Note: Container as segment construction on request.

Type	Number of bioreactors	Contents		Weight		Item number		Downloads	Remember
		Bioreactors	Overall	Empty	Full
		[l]	[l]	[kg]	[kg]
2	1	820	900	150	970	3502.10.00	14
4	2	1640	1720	300	1940	3504.10.00	14
5,5	3	2460	2540	450	2910	3505.10.00	14
7	4	3280	3360	600	3880	3507.10.00	14
8,5	5	4100	4180	750	4850	3508.10.00	14
10	6	4920	5000	900	5820	3510.10.00	14
15	8	6560	6720	1200	7760	3515.10.00	14
20	10	8200	8360	1500	9700	3520.10.00
25	12	9840	10000	1800	11640	3525.10.00	14

	Type	Number of bioreactors	Contents		Weight		Operation side	Item number
	Type	Number of bioreactors	Bioreactors	Overall	Empty	Full	Operation side	Item number
	2	1	820 l	900 l	150 kg	970 kg	Left/right-hand	3502.10.00
	4	2	1640 l	1720 l	300 kg	1940 kg	Left/right-hand	3504.10.00
	5,5	3	2460 l	2540 l	450 kg	2910 kg	Left/right-hand	3505.10.00
	7	4	3280 l	3360 l	600 kg	3880 kg	Left/right-hand	3507.10.00
	8,5	5	4100 l	4180 l	750 kg	4850 kg	Left/right-hand	3508.10.00
	10	6	4920 l	5000 l	900 kg	5820 kg	Left/right-hand	3510.10.00
	15	8	6560 l	6720 l	1200 kg	7760 kg	Left/right-hand	3515.10.00
	20	10	8200 l	8360 l	1500 kg	9700 kg	Left/right-hand	3520.10.00
	25	12	9840 l	10000 l	1800 kg	11640 kg	Left/right-hand	3525.10.00

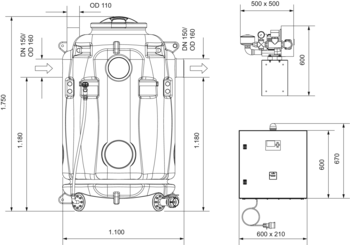

Scale drawing

Type	Number of bioreactors
2	1
4	2
5,5	3
7	4
8,5	5
10	6
15	8
20	10
25	12

Viewing window

Suitable for

Grease separator
- LipuJet-P-OB/OD/R/RD
- LipuSmart-P-OB/OD
BioJet-P-OM/RM (NS 2-25)

Description

Nominal width: DN 200
With screen wiper
Weight: 3.2 kg
Rabattgruppe: 11

Item no.
3300.11.10

Sedimentation unit

Suitable for

BioJet-P-OM
- NS 2-25

Description

For further reduction of lipophilic materials
For continual sedimentation of the treated wastewater
Including automatic disposal of separated solids
Sludge pump (0.37 kW, 230V, 50Hz)
No separate control necessary, connection to overall control of BioJet-P-OM
Volume: approx. 820 kg
Weight: 150 kg

Item no.
3500.10.00

Dosing

Suitable for

BioJet-P-OM/RM
- NS 2-25

Description

For further reduction of lipophilic materials
Lockable control cabinet made of plastic
10 L container ACO BioPlus (operating material)
Including suction fitting
Precision dosing pump for reliable discharge
Signal lamp for status display
Material for wall mounting
No separate control necessary, connection to overall control of BioJet-P-OM
Dimension (HxWxD): 600 x 380 x 210
Weight: 15 kg

Item no.
3501.10.00
