Sedismart G

Sedismart G 326368

Product benefits

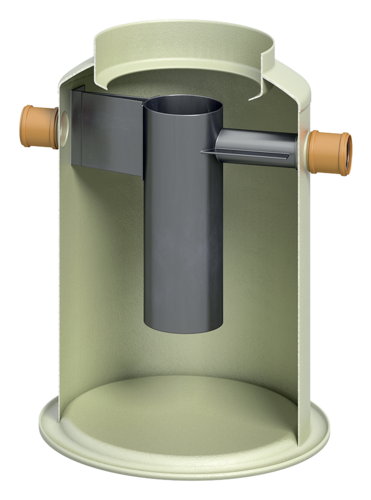

Special internal structure for optimised sedimentation
Significantly higher efficiency than standard sludge trap
Conforms to DWA-M 153 type D24
Compact design

Product information

Vertical tank made of glass reinforced plastic - no heavy machinery required, resistant material
Inner parts made of PEHD
Suitable top sections
Pipe connection using suitable push sockets or pipe connectors (no welded sockets)

Nominal size	Qin at 10 m³(m²h)	Inlet/outlet DN/OD	Contents		Weight	Item number	Downloads	Remember
	Qin at 10 m³(m²h)		Sludge trap	Total capacity	Weight
	[l/s]		[l]	[l]	[kg]
4 NS	4	110	400	902	105	12830.41
7 NS	7.1	160	690	1551	175	12831.41
11 NS	11	160	1100	2375	225	12832.41
24 NS	23.8	200	2500	4926	575	12833.41

Nominal size	Qin at 10 m³(m²h)	Inlet/outlet DN/OD	Contents		Weight	Item number
Nominal size	Qin at 10 m³(m²h)	Inlet/outlet DN/OD	Sludge trap	Total capacity	Weight	Item number
4 NS	4 l/s	110	400 l	902 l	105 kg	12830.41
7 NS	7.1 l/s	160	690 l	1551 l	175 kg	12831.41
11 NS	11 l/s	160	1100 l	2375 l	225 kg	12832.41
24 NS	23.8 l/s	200	2500 l	4926 l	575 kg	12833.41

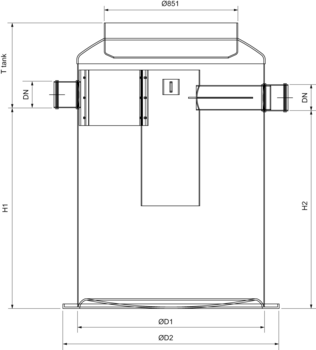

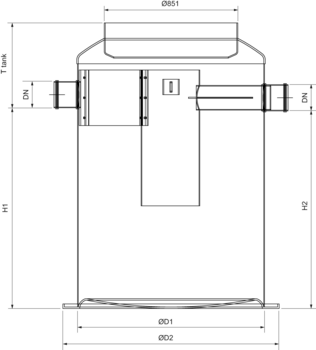

Scale drawing

Item number	Nominal size	Dimensions						Required top sections
		H1	H2	D1	D2	T tank	Total height	Required top sections
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[piece]
12830.41	4 NS	1205	1185	1000	1246	420	1625	1 x DN 600
12831.41	7 NS	1430	1410	1200	1434	500	1930	1 x DN 600
12832.41	11 NS	1395	1375	1500	1759	600	1995	1 x DN 600
12833.41	24 NS	1460	1440	2200	2455	760	2220	1 x DN 600

Top sections reduced for light oil separators

Top sections reduced for light oil separators

Top sections for GRP sampling units

Top sections for GRP sampling units

Sampling units for GRP separators

Sampling units for GRP separators
