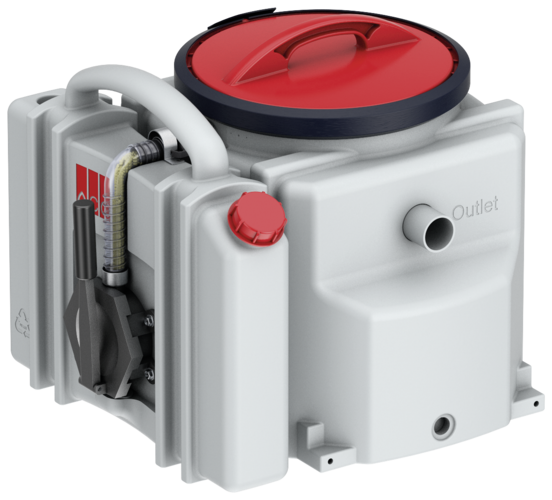

Grease separator LipuMobil-P

Grease separator LipuMobil-P

Product benefits

  • Suitable for flow rates up to 0.8 l/s
  • Optional set of wheels for transportation
  • Optional extraction valve for tank discharge
Contact
Downloads

Product information

  • Applications:
    • Mobile snack bars
    • Mobile dishwashers
    • Occasional meal preparation
  • For free-standing installation in frost-proof areas, odour-proof sealed, with removable cover and fastening ring
  • Inlet and outlet DN 50 (OD 50 mm) for connection with fitting pipe systems
  • Total volume: 48 liters
  • Grease storage volume: 15 liters
  • Sludge storage volume: 16 liters
  • Optionally with grease storage tank from PE, mounted at the separator, with discharge pump, volume 10 liters
  • German approval Z-54.6-546 (valid only in Germany)
  • Type test report for flow rate (NS): 60143586-001
  • Suitable for flow rates up to 0.8 l/s

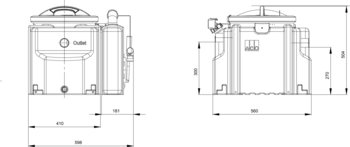

Scale drawing

Version: Without grease storage tank

Nominal widthContentsWeightItem

number		Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
ImageDN 501615488603700.04.0011

Version: With grease storage tank (operating side right)

Nominal widthContentsWeightItem

number		Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
ImageDN 5016154811.5813700.04.1011

Version: With grease storage tank (operating side left)

Nominal widthContentsWeightItem

number		Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
ImageDN 5016154811.5813700.04.2011

Version: With grease storage tank (operating side right), Partial extraction of fat and sludge possible (3-way ball valve)

Nominal widthContentsWeightItem

number		Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
ImageDN 5016154811.5813700.04.1511

Version: With grease storage tank (operating side left), Partial extraction of fat and sludge possible (3-way ball valve)

Nominal widthContentsWeightItem

number		Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
ImageDN 5016154811.5813700.04.2511
Scale drawing
Nominal sizeNominal widthContentsVersionWeightItem

number
Sludge trapGrease storeOverallEmptyFull
ImageImageNS 0.8DN 5016 l15 l48 lWithout grease storage tank8 kg60 kg3700.04.00
ImageImageNS 0.8DN 5016 l15 l48 lWith grease storage tank (operating side right)11.5 kg81 kg3700.04.10
ImageImageNS 0.8DN 5016 l15 l48 lWith grease storage tank (operating side left)11.5 kg81 kg3700.04.20
ImageImageNS 0.8DN 5016 l15 l48 lWith grease storage tank (operating side right), Partial extraction of fat and sludge possible (3-way ball valve)11.5 kg81 kg3700.04.15
ImageImageNS 0.8DN 5016 l15 l48 lWith grease storage tank (operating side left), Partial extraction of fat and sludge possible (3-way ball valve)11.5 kg81 kg3700.04.25

Inlet valve DN 50

Suitable for
  • LipuMobil-P 0,8
  • Muli-Mini
Description
  • Made of PVC
  • DN 50
  • With sealing ring as per DIN EN 19538
  • Weight: 0.4 kg
  • Rabattgruppe: 12
Item no.
0175.18.33

Set of wheel

Suitable for
  • LipuMobil-P 0,8
Description

Set of wheel, consisting of four wheel, two of them with fastener for tank fixation

  • Rabattgruppe: 11
Item no.
3700.04.30

Extraction valve

Suitable for
  • LipuMobil-P 0,8
Description
  • Extraction valve of plastics for tank discharge
  • Rabattgruppe: 11
Item no.
3700.04.40

Replacement drum

Suitable for
  • Grease separators Lipator-P/Lipator-S
  • LipuMobil-P 0,8
Description
  • Drum
    • Volume: 60 l
  • With lid and tension ring
  • Height: approx. 630 mm
  • Diameter: approx. 380 mm
  • Weight: 5 kg
  • Rabattgruppe: 11
Item no.
7600.00.15
