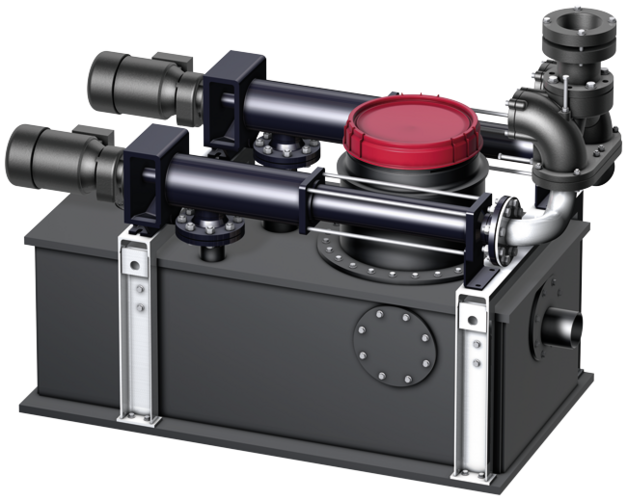

Upstream tank plant - duo

Product benefits

  • Low turbulence wastewater supply to grease separator plant thanks to displacement pumps
  • Compact construction
  • Low energy consumption
  • Secure level regulation thanks to use of air bubble injection

Product information

  • Areas of application
    • Operation over sizeable distances between water point of incidence and grease separator plant
    • Low inlet connection for grease separator
  • Polyethylene container
    • 1 x maintenance opening for simple maintenance (350 mm width clearance) with odour proof screw-on cover
    • Fixing kit for buoyancy-proof anchorage
    • Strainer insert to match inflow
    • 1 x horizontal inflow sockets
      • DN 100, Ø110 (types 2 + 4)
      • DN 150, Ø160 (types 7 + 10)
      • DN 200, Ø200 (types 15 + 20)
    • 2x horizontal blank flange
      • DN 100 (types 2 + 4)
      • DN 150 (types 7 + 10)
    • 1x vertical socket DN 100 (ventilation)
  • 2 x eccentric screw pumps
    • Gear motor 400 V, 50 Hz
    • IP 55 protection
    • Integrated thermal monitoring
    • Integrated flow volume monitoring
    • 10 m mains cable
  • Extension pressure line
    • Special encased ball backflow stop, presented as a Y-branch pipe (with integrated venting and fixing screws)
    • Special mounting adaptor for elastic connection of the DN 100 pressure pipe (pipe external diameter: Diameter 108 – 114.3 mm/optional DN 80)
  • Level switching
    • Pneumatic level switching with 10 m control line
    • With air bubble injection via a mini compressor
  • Controls
    • IP 54 protection
    • 1.5 m cable and EEC plug (32 A)
    • Mains-free group fault and operational messages
TypeNominal widthPerformancePower consumptionHeight of inflowTotal capacityWeightItem

number
Remember
EmptyFull
[kW][A][mm][l][kg][kg]
2DN 1001.53.233554354108700175.34.3012
4DN 1001.53.343554354108700175.34.3112
7DN 1501.53.343805254108700175.34.3212
10DN 1504.07.8538064548010200175.34.3312
15DN 2004.07.8545064568014000175.34.3412
20DN 2004.08.0245064568014000175.34.3512
TypeNominal widthPerformancePower consumptionHeight of inflowTotal capacityWeightItem

number
EmptyFull
Image2DN 1001.5 kW3.23 A355 mm435 l410 kg870 kg0175.34.30
Image4DN 1001.5 kW3.34 A355 mm435 l410 kg870 kg0175.34.31
Image7DN 1501.5 kW3.34 A380 mm525 l410 kg870 kg0175.34.32
Image10DN 1504 kW7.85 A380 mm645 l480 kg1020 kg0175.34.33
Image15DN 2004 kW7.85 A450 mm645 l680 kg1400 kg0175.34.34
Image20DN 2004 kW8.02 A450 mm645 l680 kg1400 kg0175.34.35

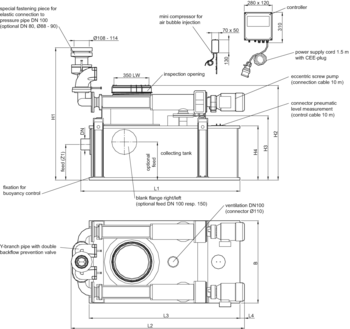

Scale drawing
TypeDimensions
Height of inflowL1L2L3L4BH1H2H3H4
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
2355158517451500458201330940645540
4355158517451500458201330940645540
7380158517451500458201330940645540
10380188520201800258201340940650540
154501885202018002094014201035730630
2045018852260180024094014601035730630

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg
  • Rabattgruppe: 12

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg
  • Rabattgruppe: 12

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg
  • Rabattgruppe: 12

Inlet valve DN 100

Suitable for
  • Grease separator made of polyethylene
  • Starch separator made of polyethylene
  • Upstream tank systems type 2 and 4
  • LipuMobil – type 0.5
Description
  • Made out of PVC
  • Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
  • Total dimensions: 176 x 360 mm (L x H)
  • Weight: 5.9 kg
  • Rabattgruppe: 12

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg
  • Rabattgruppe: 12

Inlet valve DN 150

Suitable for
  • Grease separator made of polyethylene
  • Starch separator made of polyethylene
  • Upstream tank systems type 7 to 10
Description
  • Made out of PVC
  • Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
  • Total dimensions: 226 x 420 mm (L x H)
  • Weight: 10.2 kg
  • Rabattgruppe: 12

Connection ports

Suitable for
  • Upstream tank plant-duo
    • Type 2 – Type 7
Description
  • Nominal width: DN 100
  • For connection of additional pipes
  • Weight: 1.2 kg
  • Rabattgruppe: 12

Connection ports

Suitable for
  • Upstream tank plant-duo
    • Type 2 – Type 7
Description
  • Nominal width: DN 150
  • For connection of additional pipes
  • Weight: 1.6 kg
  • Rabattgruppe: 12

Connection ports

Suitable for
  • Upstream tank plant-duo
    • Type 10
Description
  • Nominal width: DN 150
  • For connection of additional pipes
  • Weight: 4 kg
  • Rabattgruppe: 12

Sealing ring

Suitable for
  • LipuSmart-P
  • Powerlift installation kit DN 100
  • Fäkablock II
  • All Muli wastewater lifting plants
Description
  • As additional component for pressure line DN 80
  • Clamping range: 88 - 93 mm
  • Weight: 0.3 kg
