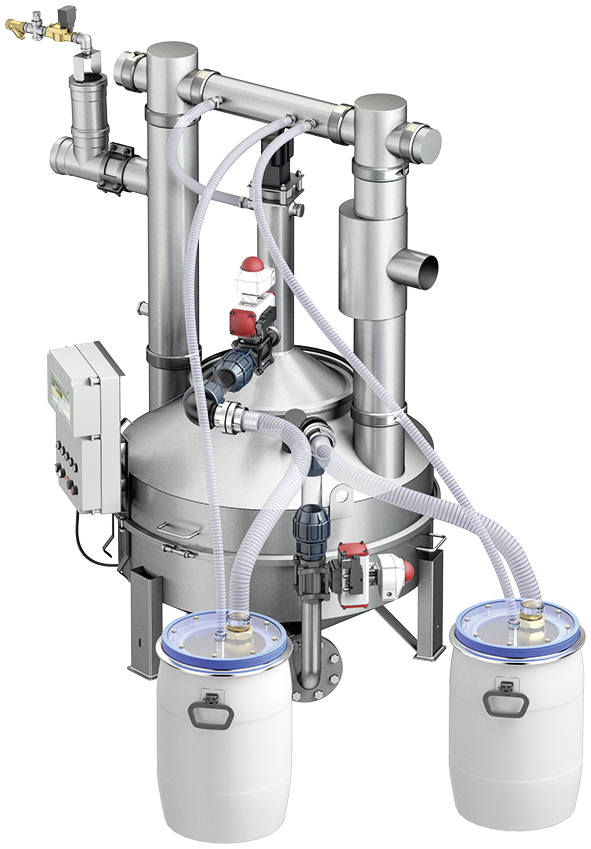

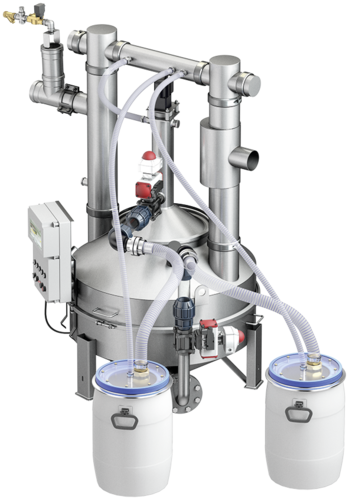

Grease separator Lipator-S-RA extension stage 3
Product benefits
- Compact footprint dimensions for small applications
- Easy handling and insertion
- Self-explaining and illuminated control box
- Adjustable timer clock for flexible grease extraction
- Automated grease and sludge extraction
Product information
- Grease separator plant according to EN 1825 for free-standing installation in frost proof rooms
- Manufactured of stainless steel, material grade 316
- With automated grease and sludge extraction
- With hoses and four tanks 60 liters for grease and sludge collection
- With heating rod and timer clock for homogenizing of grease
- With agitating device; slow running agitator with scrapers in the upper cone
- Electric connection: 230 V, 50/60 Hz

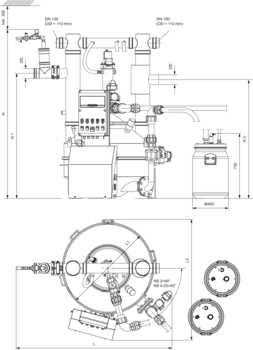

| Nominal size | Dimensions | |||||
|---|---|---|---|---|---|---|
| L | L1 | L2 | H | H1 | H2 | |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| NS 2 | 1170 | 640 | 970 | 1700 | 1300 | 1230 |
| NS 4 | 1240 | 980 | 1300 | 1850 | 1400 | 1330 |
| NS 10 | 1710 | 1500 | 1670 | 2200 | 1800 | 1730 |
| NS 20 | 1950 | 1750 | 1880 | 2320 | 1900 | 1830 |
| NS 25 | 1950 | 1750 | 1880 | 2420 | 2000 | 1930 |
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.9 kg
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 12.2 kg
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 15 – 20
- Light oil separator Coalisator-E
- NS 20
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 200 horizontal pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 13.1 kg
Coarse trap DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 100 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11 kg
Coarse trap DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 150 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 13.4 kg
Coarse trap DN 200
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 15 – 20
Description
- Stainless steel, material grade 316
- Round shape
- Gradient drop: 70 mm
- For installation in DN 200 vertical pipes going to grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 14.3 kg
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 1 – 4
- Starch separator FapuJet-S
- NS 0.5 – 1
- Light oil separator Coalisator-R/-RD
- NS 3
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 100 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 9.5 kg
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 5.5 – 10
- Starch separator FapuJet-S
- NS 2
- Light oil separator Coalisator-R/-RD
- NS 6 – 10
Description
- Stainless steel, material grade 316
- Round shape
- For installation in DN 150 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11.3 kg
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-S/Lipator-S
- NS 15 – 20
- Light oil separator Coalisator-E
- NS 20
Description
- Made from stainless steel, material grade 304
- Round shape
- For installation in DN 200 vertical pipes coming from grease separator
- With EC connector and claw
- Connections tested to DIN EN 877
- Weight: 11 kg
Coarse trap DN 100
Suitable for
- Grease separator Lipator-P/Lipator-S
- NS 2 – 4
Description
- Coarse trap, PE
- With cone and penstock
- Housing 480 mm
- Drainage connection
- With stop valve
- Ventilation connection DN 20 for venting the on-site collecting tank
- Cover with clamping ring odourproof
- Tabs for ceiling fixing on site
- Weight: 13.6 kg
Coarse trap DN 150
Suitable for
- Grease separator Lipator-P/Lipator-S
- NS 10
Description
- Coarse trap, PE
- With cone and penstock
- Housing 480 mm
- Drainage connection
- With stop valve
- Ventilation connection DN 20 for venting the on-site collecting tank
- Cover with clamping ring odourproof
- Tabs for ceiling fixing on site
- Weight: 14.2 kg
Coarse trap DN 200
Suitable for
- Grease separator Lipator-P/Lipator-S
- NS 20 - 25
Description
- Coarse trap, PE
- With cone and penstock
- Housing 480 mm
- Drainage connection
- With stop valve
- Ventilation connection DN 20 for venting the on-site collecting tank
- Cover with clamping ring odourproof
- Tabs for ceiling fixing on site
- Weight: 14.7 kg
Set replacement drums
Suitable for
- Grease separator Lipator-P/Lipator-S
- NS 2 – 25
Description
- 2 complet drums
- 2 drums, complete with hoses
- Capacity 60 liters with Plexiglas cover
- Clamping ring and hose connection DN 25 and DN 40,
- 2 hoses DN 25 (length 2,500 mm) and 2 hoses DN 400 (1,500 mm length)
- 2 replacement drums
- 60 liters with cover and clamping ring only
- Weight: 27 kg
Replacement drum
Suitable for
- Grease separators Lipator-P/Lipator-S
- LipuMobil-P 0,8
Description
- Drum
- Volume: 60 l
- With lid and tension ring
- Height: approx. 630 mm
- Diameter: approx. 380 mm
- Weight: 5 kg
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
