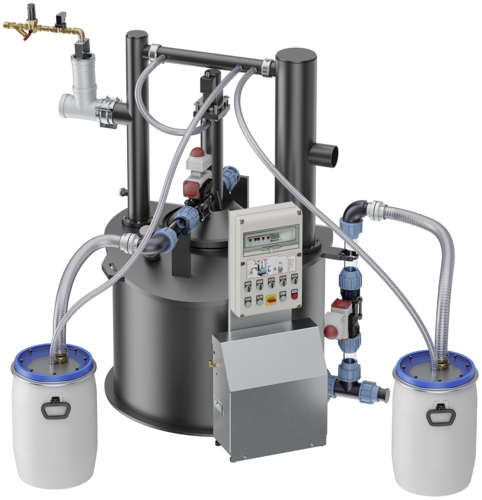

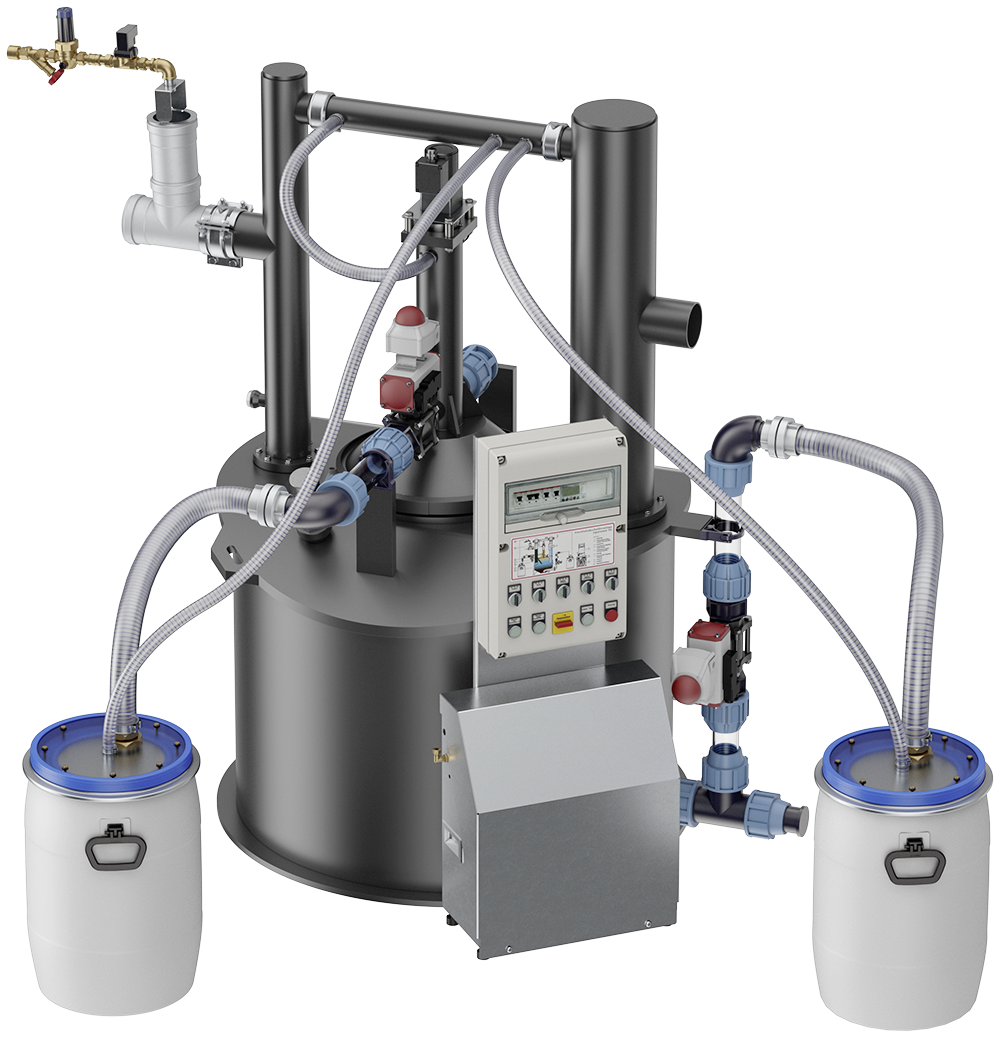

Grease separator Lipator-P-RA extension stage 3

Product benefits

  • Compact footprint dimensions for small applications
  • Easy handling and insertion
  • Self-explaining and illuminated control box
  • Adjustable timer clock for flexible grease extraction
  • Automated grease and sludge extraction

Product information

  • Grease separator plant according to EN 1825 for free-standing installation in frost proof rooms
  • Manufactured of welded polyethylene
  • With automated grease and sludge extraction
  • With hoses and four tanks 60 liters for grease and sludge collection
  • With heating rod and timer clock for homogenizing of grease
  • With agitating device and scrappers
  • Electric connection: 230 V, 50/60 Hz

Version: automatic controls

Nominal sizeNominal widthTotal capacityLargest componentWeightItem

number
Remember
Diameter x HeightHeaviest single componentEmptyFull
[l][mm][kg][kg][kg]
NS 4DN 1005701270 x 860802408103574.70.10
NS 10DN 15015701660 x 66012038019503580.70.10
NS 20DN 20022501920 x 70016044026903590.70.10
NS 25DN 20025001920 x 70016047029703595.70.10
Nominal sizeNominal widthTotal capacityLargest componentWeightItem

number
Diameter x HeightHeaviest single componentEmptyFull
ImageNS 4DN 100570 l1270 x 860 mm80 kg240 kg810 kg3574.70.10
ImageNS 10DN 1501570 l1660 x 660 mm120 kg380 kg1950 kg3580.70.10
ImageNS 20DN 2002250 l1920 x 700 mm160 kg440 kg2690 kg3590.70.10
ImageNS 25DN 2002500 l1920 x 700 mm160 kg470 kg2970 kg3595.70.10

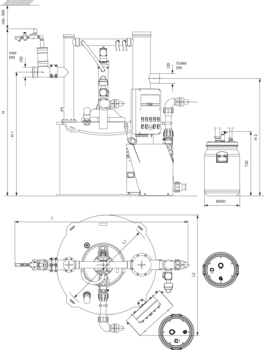

Scale drawing
Nominal sizeDimensions
LL1L2HH1H2
[mm][mm][mm][mm][mm][mm]
NS 4195010601350185014001330
NS 1025015301850232018001730
NS 20275017802050256019001830
NS 25275017802050266020001930

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation of horizontal pipes DN 100 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

Coarse trap DN 100

Suitable for
  • Grease separator Lipator-P/Lipator-S
    • NS 2 – 4
Description
  • Coarse trap, PE
  • With cone and penstock
  • Housing 480 mm
  • Drainage connection
  • With stop valve
  • Ventilation connection DN 20 for venting the on-site collecting tank
  • Cover with clamping ring odourproof
  • Tabs for ceiling fixing on site
  • Weight: 13.6 kg

Coarse trap DN 150

Suitable for
  • Grease separator Lipator-P/Lipator-S
    • NS 10
Description
  • Coarse trap, PE
  • With cone and penstock
  • Housing 480 mm
  • Drainage connection
  • With stop valve
  • Ventilation connection DN 20 for venting the on-site collecting tank
  • Cover with clamping ring odourproof
  • Tabs for ceiling fixing on site
  • Weight: 14.2 kg

Coarse trap DN 200

Suitable for
  • Grease separator Lipator-P/Lipator-S
    • NS 20 - 25
Description
  • Coarse trap, PE
  • With cone and penstock
  • Housing 480 mm
  • Drainage connection
  • With stop valve
  • Ventilation connection DN 20 for venting the on-site collecting tank
  • Cover with clamping ring odourproof
  • Tabs for ceiling fixing on site
  • Weight: 14.7 kg

Set replacement drums

Suitable for
  • Grease separator Lipator-P/Lipator-S
    • NS 2 – 25
Description
  • 2 complet drums
    • 2 drums, complete with hoses
    • Capacity 60 liters with Plexiglas cover
    • Clamping ring and hose connection DN 25 and DN 40,
    • 2 hoses DN 25 (length 2,500 mm) and 2 hoses DN 400 (1,500 mm length)
  • 2 replacement drums
    • 60 liters with cover and clamping ring only
  • Weight: 27 kg

Replacement drum

Suitable for
  • Grease separators Lipator-P/Lipator-S
  • LipuMobil-P 0,8
Description
  • Drum
    • Volume: 60 l
  • With lid and tension ring
  • Height: approx. 630 mm
  • Diameter: approx. 380 mm
  • Weight: 5 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
