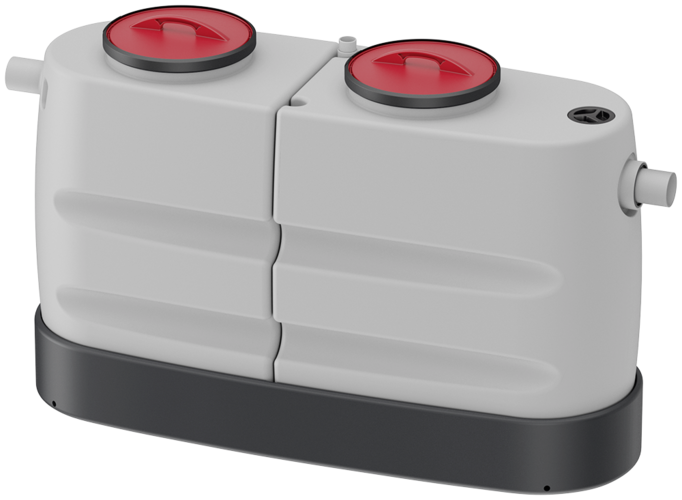

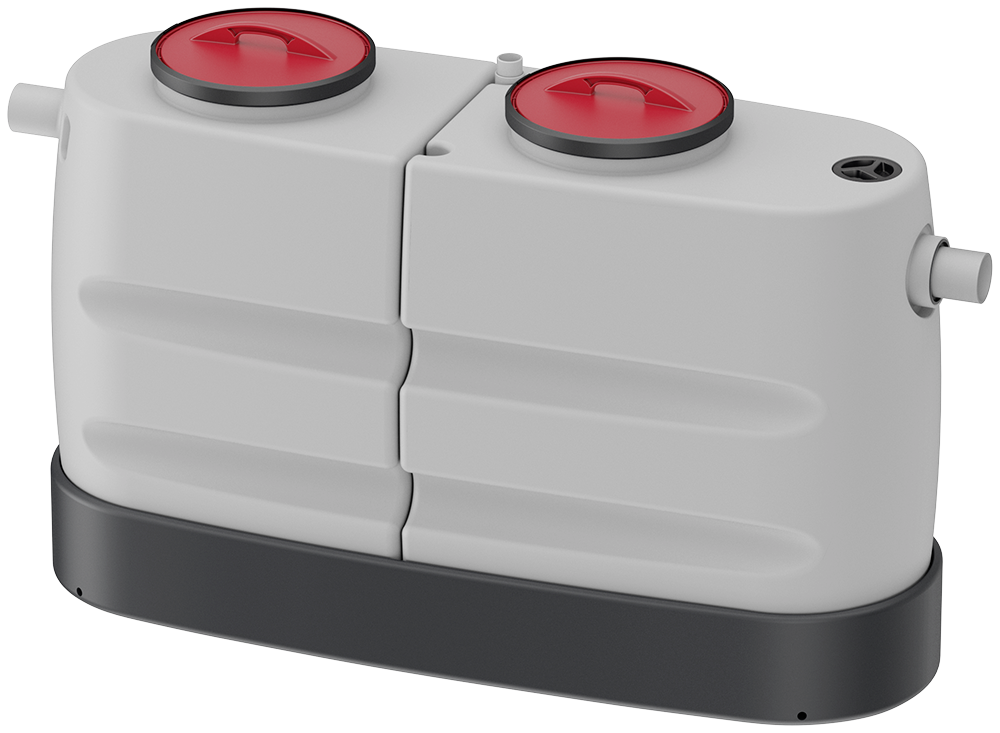

Grease separator LipuJet-P-SD extension stage 1
Product benefits
- Proven stability
- Simple to fit thanks to plug-in system
- Can be delivered to installation sites with difficult access because plant is in 3 pieces
- Empty directly without odour
- Low weight
Product information
- Grease separator plant as per DIN EN 1825 and DIN 4040-100
- For indoors installation – frost free
- With separate sludge trap
- With draining connection DN 50 and fire hose quick coupling B 2"
- Suction and emptying sump with drain plug socket 1"
- Odour-proof maintenance opening, diameter: 450 mm

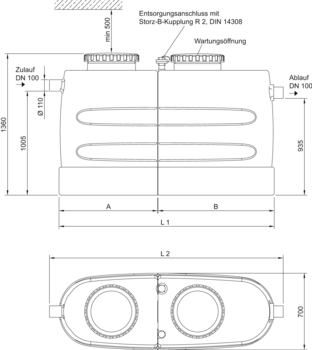

| Item number | Nominal size | Dimensions | |||
|---|---|---|---|---|---|
| L1 | L2 | A | B | ||
| [mm] | [mm] | [mm] | [mm] | ||
| 3802.50.00 | NS 2 | 1180 | 1360 | 510 | 660 |
| 3804.50.00 | NS 4 | 2070 | 2250 | 945 | 1115 |
Filling device
Suitable for
- LipuJet-P-SB/SD
Description
- To be fitted upstream of the separator
- Stainless steel, material grade 316
- Consisting of
- Pipe sockets DN 100
- Length: 300 mm
- Filling device (DVGW / KIWA approval) with foul air trap welded on and inclined valve R ¾"
- Pressure relief valve with integrated dirt trap
- 1 pipe connector DN 100
- Weight: 7 kg
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 1 – 4
- Starch separator FapuJet-P-OAP
- NS 0.5 – 1
Description
- For installation of horizontal pipes DN 100 to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.2 kg
Sampling pot DN 100
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 1 – 4
- Starch separator FapuJet-P-OAP
- NS 0.5 – 1
Description
- For installation in vertical pipes DN 100 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.2 kg
Coarse trap DN 100
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 1 – 4
- Starch separator FapuJet-P-OAP
- NS 0.5 – 1
Description
- For installation in vertical pipes DN 100 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 9.7 kg
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
