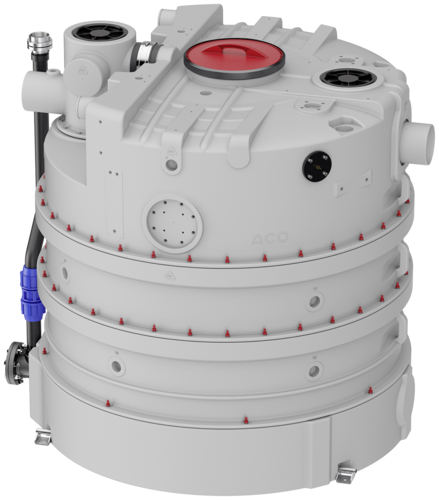

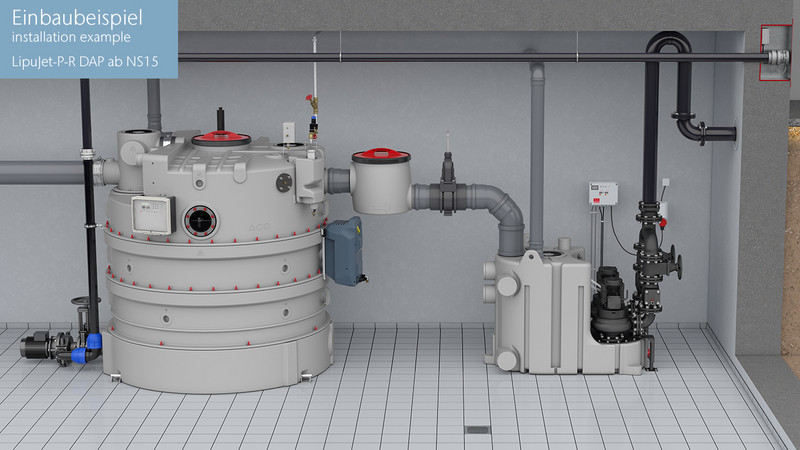

Grease separator LipuJet-P-RD extension stage 1
Product benefits
- Easy to transport and assemble when bringing-in in individual segments
- Optimum insertion dimensions
- Easy handling thanks to lightweight individual segments (100 kg)
- Rotatable inlet fitting and plug-in foul air trap
- Integrated slant for easier disposal for optimized emptying
- Emptying and filling without odor nuisance
Product information
- Grease separator according to EN 1825 - Nominal Sizes (5,5-22.5)
- With integrated sludge trap
- Container made of polyethylene, in segment construction
- For indoor installation – frost-free
- Suction and drainage sump
- Odour-tight maintenance opening (clear width Ø450 mm)
- Odour-tight inspection opening through Inlet and outlet
- Central connection for direct suction with fixed coupling and blind coupling
- Inspection window with wiper (optional)
- Filling unit (components with DVGW and KIWA approvals) for manual refilling (optional):
- Free-flow valve
- Pressure reducer with dirt trap
- Odour trap
- Pipe connectors on the inlet and outlet with transition seal for pipe OD 200 mm (NS 15-22.5) / OD 160mm (NS 5.5-10)
- Execution right or left / following components are to be operated on the right or left to the central axis:
- Direct suction
- Inspection window (optional)
- Filling unit (optional)
- Declaration of Performance (DoP) No: BD-G1-1025
- Connections:
- Inlet and outlet OD 200mm (NS 15-22.5) / OD 160mm (NS 5.5-10)
- Vent DN100/OD110 mm
- Direct suction with fixed coupling Storz-B/2½" and blind coupling
- Water connection filling unit Rp ¾" (optional)
- Bottom outlet Rp1"

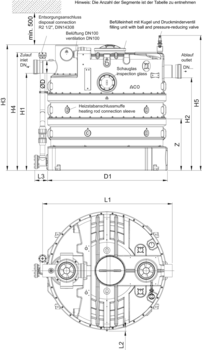

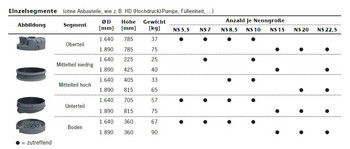

| Item number | Nominal size | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | H1 | H2 | H3 | H4 | H5 | D | D1 | Z/Anzahl Segmente | ||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| 3505.51.00 | NS 5.5 | 1790 | 65 | 1060 | 990 | 1500 | 1570 | 1650 | 160 | 1620 | 3 | |
| 3507.51.00 | NS 7 | 1790 | 65 | 1240 | 1170 | 1685 | 1750 | 1830 | 160 | 1620 | 4 | |
| 3508.51.00 | NS 8.5 | 1790 | 65 | 1420 | 1350 | 1865 | 1930 | 2010 | 160 | 1620 | 4 | |
| 3510.51.00 | NS 10 | 1790 | 65 | 1600 | 1530 | 2045 | 2110 | 2190 | 160 | 1620 | 5 | |
| 3515.51.00 | NS 15 | 2500 | 65 | 210 | 1535 | 1465 | 1990 | 1870 | 2150 | 200 | 1890 | 4 |
| 3520.51.00 | NS 20 | 2500 | 65 | 210 | 1925 | 1855 | 2380 | 2260 | 2540 | 200 | 1890 | 4 |
| 3525.51.00 | NS 22.5 | 2500 | 65 | 210 | 2305 | 2235 | 2760 | 2640 | 2910 | 200 | 1890 | 5 |
Inlet valve DN 150
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Type 7 – Type 10
Description
- Made of PVC
- 160 mm push socket on both sides with rim sealing ring
- Overall dimensions: 226 x 510 mm (L x H)
- Weight: 7 kg
Inlet valve DN 200
Suitable for
- Wastewater lifting plant
- Muli-Star DDP 1/2
- Grease separator made of polyethylene
- From NS 15
Description
- Made out of PVC
- Push socket 200 mm with lip sealing ring on both sides
- Total dimensions: 264 x 637 mm (L x H)
- Weight: 8.4 kg
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 5.5 – 10
- Starch separator FapuJet-P-OAP
- NS 2
Description
- For installation of horizontal pipes DN 150 to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.1 kg
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation of horizontal pipes DN 200 to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.3 kg
Sampling pot DN 150
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 5.5 – 10
- Starch separator FapuJet-P-OAP
- NS 2
Description
- For installation in vertical pipes DN 150 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.1 kg
Sampling pot DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation in vertical pipes DN 200 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Odour-proof maintenance opening DN 450
- Weight: 10.2 kg
Grease layer thickness measuring device
Suitable for
- LipuJet-P
- Oval NS 1 – 10
- Round NS 2 – 22,5
- LipuJet-S
- Oval NS 1 – 10
- Round NS 2 – 20
- LipuSmart-P
- Oval NS 1 – 10
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
- With visual display of fill level
- With heated probe rod to increase reliability of operation
- Operating voltage: 230VAC/5 VA
- Max consumption approx. 12W
- Weight: 2.8 kg
Coarse trap DN 150
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 5.5 – 10
- Starch separator FapuJet-P-OAP
- NS 2
Description
- For installation in vertical pipes DN 150 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 12.6 kg
Coarse trap DN 200
Suitable for
- Grease separator LipuJet-P
- NS 15 – 22,5
Description
- For installation in vertical pipes DN 200 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 9.9 kg
Heating rod
Suitable for
- Grease separators
Description
- To liquefy grease layer
- Incl. control
- Electrical connector
- 400 V/50 Hz/6.0 kW
- Weight: 15 kg
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 150
- Length (L): 60 mm
- Spindle travel (H1 – H2): 478 – 639 mm
- Manual wheel diameter: 200 mm
- Weight: 29.4 kg
Stop valve
Suitable for
- Grease separator for free-standing installation
- NS 15-20
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 200
- Length (L): 60 mm
- Spindle travel (H1 – H2): 542 – 743 mm
- Manual wheel diameter: 250 mm
- Weight: 36 kg
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 150
- Length (L): 75 mm
- Weight: 10 kg
Flange connection part
Suitable for
- Stop valve DN 200
- 7610.00.12
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 200
- Length (L): 120 mm
- Weight: 12.9 kg
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
Viewing window
Suitable for
- LipuJet-P-RB /-RD
Description
- With screen wiper
- Weight: 2.1 kg
Filling device
Suitable for
- LipuJet-P-RB /-RD
Description
- Components with DVGW and KIWA approvals for manual refilling:
- Free-flow valve
- Pressure reducer with dirt trap
- Odor trap
- Weight: 4.7 kg
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
