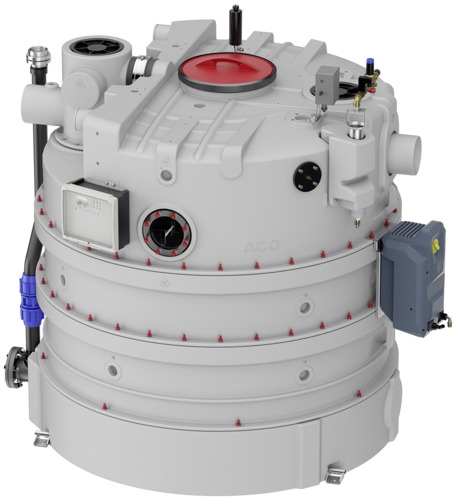

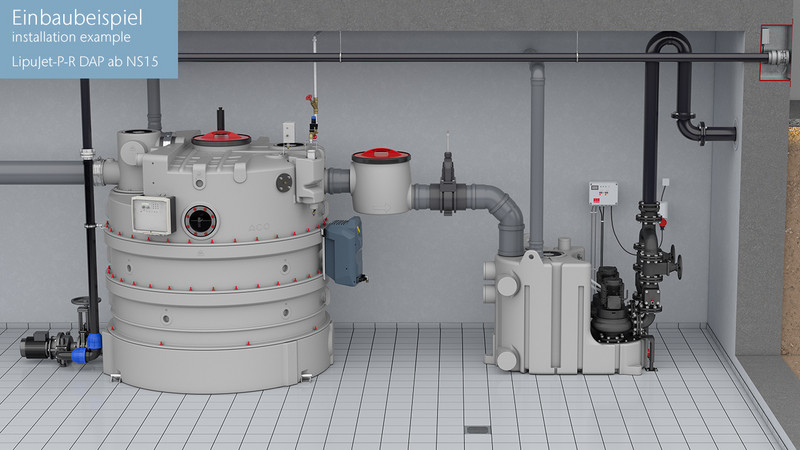

Grease separator LipuJet-P-RA extension stage 3

Product benefits

  • Easy to transport and assemble (incorporation in individual segments)
  • Optimum insertion dimension
  • Easier handling due to weight reduction
  • Rotatable inlet fitting and stretchable odor trap
  • Multifunctional container
  • Emptying, cleaning and filling without odor nuisance
  • Individually adjustable pre- and after-cleaning times
  • Hydromechanical high-pressure interior cleaning – cold water connection only necessary

Product information

  • Grease separator according to EN 1825 - Nominal Sizes (5,5-22.5)
  • With integrated sludge trap
  • Container made of polyethylene, in segment construction
  • For indoor installation – frost-free
  • Fastening set for buoyancy-proof anchoring
  • Suction and drainage sump
  • Odour-tight maintenance opening (clear width Ø450 mm)
  • Odour-tight inspection opening through Inlet and outlet
  • Central connection for direct suction with fixed coupling and blind coupling
  • Inspection window with wiper
  • High-pressure internal cleaning:
    • Motor-driven high-pressure spray head (360° cleaning over two axles)
    • HP (high pressure) pump (nominal pressure 175 bar)
  • Filling unit (components with DVGW and KIWA approvals) for automatic refilling:
    • Free-flow valve
    • Pressure reducer with dirt trap
    • Solenoid valve
    • Odour trap
  • Level measurement via pneumatic pressure measurement including bubbler injection:
    • Pneumatic box with miniature compressor and pressure sensor
    • Pitot tube
  • Control with connection cable 1.5  m
  • And CEE plug 16 A including phase changer, protection class IP 54
  • Pipe connectors on the inlet and outlet with transition seal for pipe OD 210 mm
  • Execution right or left / following components are to be operated on the right or left to the central axis:
    • Inspection window
    • Direct suction
    • Filling unit
    • High pressure spray head
    • HP pump
    • Pneumatic box
    • Control
  • Declaration of Performance (DoP) No: BD-G1-1025
  • Connections:
    • Inlet and outlet DN200/OD200 mm
    • Vent DN100/OD110 mm
    • Direct suction with fixed coupling Storz-B/2½" and blind coupling
    • Water connection filling unit Rp ¾"
    • Bottom outlet Rp1"
  • Electrical connection:
    • 400V/50Hz/16A/4.2 kW
    • Fusing: 3x16A (slow) or according to local conditions

Operation side: Right-hand

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 5.5DN 150555290147519016653505.53.00
NS 7DN 150730290179022020153507.53.00
NS 8.5DN 150855405211023023453508.53.00
NS 10DN 150970405243026026903510.53.00
NS 15DN 2001550600313033034603515.53.00
NS 20DN 2002020800407035044203520.53.00
NS 22.5DN 20025501000500040054003525.53.00

Operation side: left

Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFull
[l][l][l][kg][kg]
NS 5.5DN 150555290147519016653505.53.10
NS 7DN 150730290179022020153507.53.10
NS 8.5DN 150855405211023023453508.53.10
NS 10DN 150970405243026026903510.53.10
NS 15DN 2001550600313033034603515.53.10
NS 20DN 2002020800407035044203520.53.10
NS 22.5DN 20025501000500040054003525.53.10
Nominal sizeNominal widthContentsWeightOperation sideItem

number
Sludge trapGrease storeOverallEmptyFull
NS 5.5DN 150555 l290 l1475 l190 kg1665 kgRight-hand3505.53.00
NS 5.5DN 150555 l290 l1475 l190 kg1665 kgleft3505.53.10
NS 7DN 150730 l290 l1790 l220 kg2015 kgRight-hand3507.53.00
NS 7DN 150730 l290 l1790 l220 kg2015 kgleft3507.53.10
NS 8.5DN 150855 l405 l2110 l230 kg2345 kgRight-hand3508.53.00
NS 8.5DN 150855 l405 l2110 l230 kg2345 kgleft3508.53.10
NS 10DN 150970 l405 l2430 l260 kg2690 kgRight-hand3510.53.00
NS 10DN 150970 l405 l2430 l260 kg2690 kgleft3510.53.10
NS 15DN 2001550 l600 l3130 l330 kg3460 kgRight-hand3515.53.00
NS 15DN 2001550 l600 l3130 l330 kg3460 kgleft3515.53.10
NS 20DN 2002020 l800 l4070 l350 kg4420 kgRight-hand3520.53.00
NS 20DN 2002020 l800 l4070 l350 kg4420 kgleft3520.53.10
NS 22.5DN 2002550 l1000 l5000 l400 kg5400 kgRight-hand3525.53.00
NS 22.5DN 2002550 l1000 l5000 l400 kg5400 kgleft3525.53.10

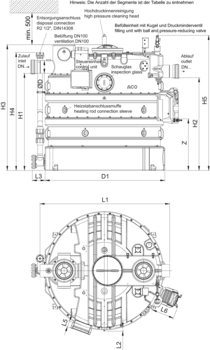

Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4B1DD1Z/Anzahl SegmenteB
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3505.53.00NS 5.580802050106099015001650160162031790
3505.53.10NS 5.580802050106099015001650160162031790
3507.53.00NS 7808020501240117016851830160162041790
3507.53.10NS 7808020501240117016851830160162041790
3508.53.00NS 8.5808020501420135018652010160162041790
3508.53.10NS 8.5808020501420135018652010160162041790
3510.53.00NS 10808020501600153020452190160162051790
3510.53.10NS 10808020501600153020452190160162051790
3515.53.00NS 15210275205015351465199021501900200189042550
3515.53.10NS 15210275205015351465199021501900200189042550
3520.53.00NS 20210275205019251855238025401900200189042550
3520.53.10NS 20210275205019251855238025401900200189042550
3525.53.00NS 22.5210275205023052235276029101900200189052550
3525.53.10NS 22.5210275205023052235276029101900200189052550

Inlet valve DN 200

Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 15
Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Remote control

Suitable for
  • Grease separator
    • LipuJet-P OA/OAP/RA/RAP
    • LipuJet-S OA/OAP/RA/RAP
    • LipuMax-P-DA
    • LipuSmart-P-OA/OAP
  • Starch separator FapuJet
Description
  • For internal fitting or fitting in connection boxes
  • Control line without protective conductor on-site
    • Up to 50 m: 7 x 1.0 mm²
    • 50 – 200 m 7 x 1.5 mm²
  • Weight: 1 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
