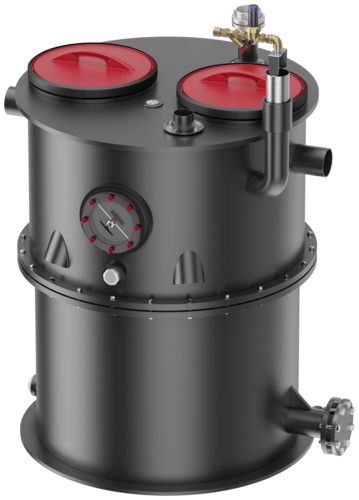

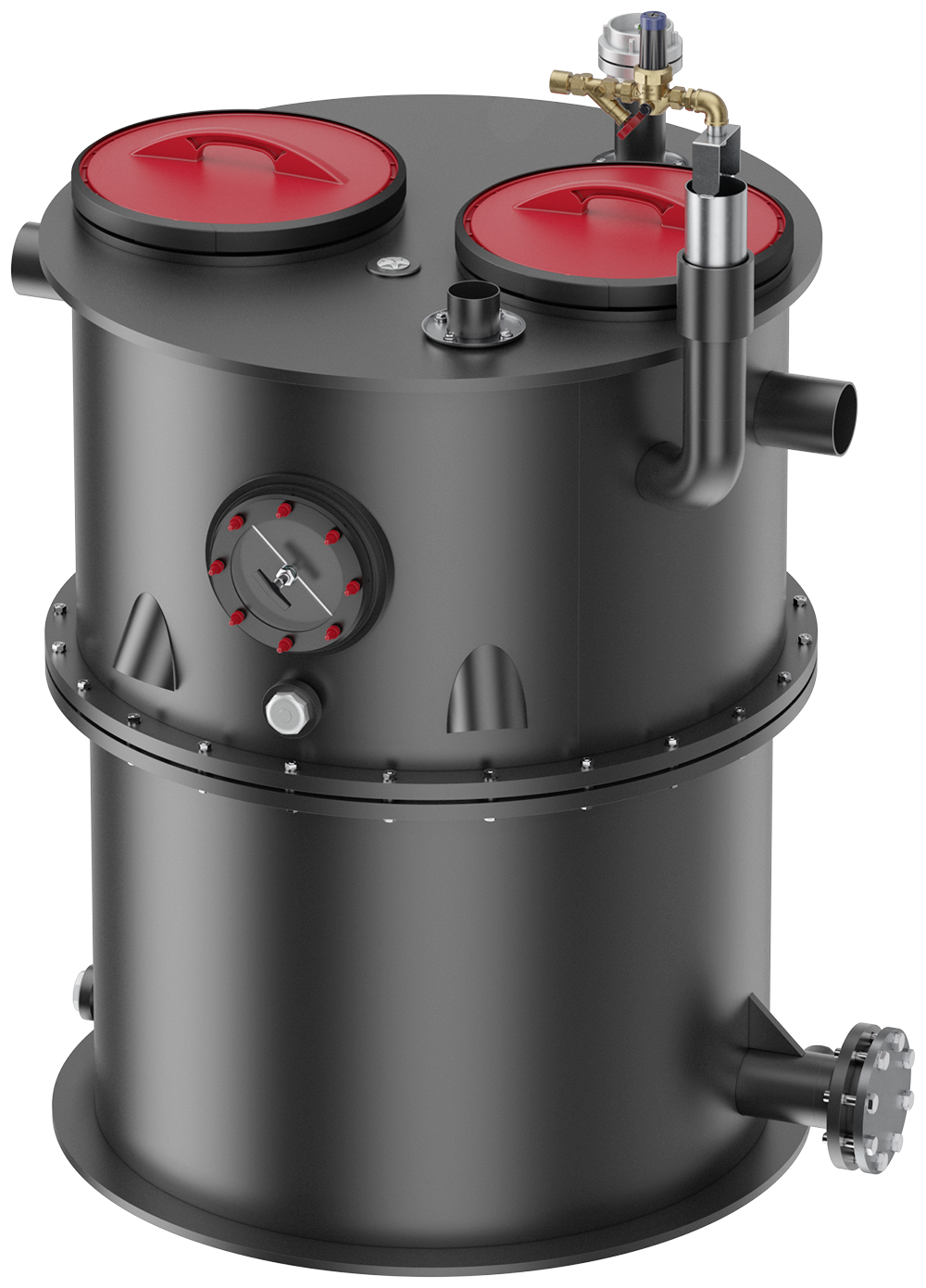

Grease separator LipuJet-P-RD extension stage 1

Product benefits

  • Easy to transport and fit thanks delivery of individual parts
  • Empty directly without odour
  • Small delivery dimensions
  • Low weight

Product information

  • Grease separator plant as per DIN EN 1825 and DIN 4040-100
  • For indoors installation – frost free
  • With integrated sludge trap
  • Operating side: right/left
  • Draining connection, fire hose quick coupling B 2½"
  • Suction and emptying sump with drain plug socket 1½"
  • Odour-proof maintenance opening, diameter: 350 mm
Nominal sizeNominal widthContentsWeightItem

number
Remember
Sludge trapGrease storeOverallEmptyFullHeaviest single component
[l][l][l][kg][kg][kg]
NS 2DN 100240120620123803483502.62.30
NS 4DN 1004551658301391029553504.62.30
Nominal sizeNominal widthContentsWeightItem

number
Sludge trapGrease storeOverallEmptyFullHeaviest single component
ImageNS 2DN 100240 l120 l620 l123 kg803 kg48 kg3502.62.30
ImageNS 4DN 100455 l165 l830 l139 kg1029 kg55 kg3504.62.30

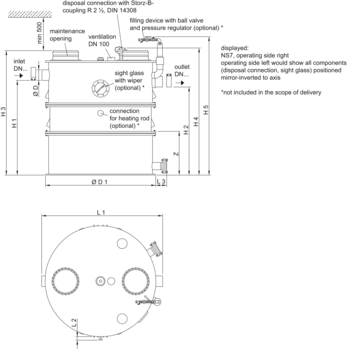

Scale drawing
Item

number
Nominal sizeDimensions
L1L2L3H1H2H3H4H5DD1Z/Anzahl Segmente
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
3502.62.30NS 21255602009759051320137015201101150795/2
3504.62.30NS 4125560200124011701580163017801101150820/2

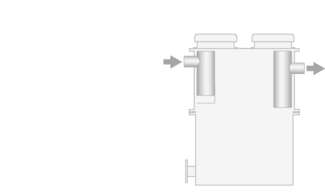

Features of base version:

  • Emptying and cleaning via maintenance opening
  • Odour build-up during emptying and cleaning
LipuJet-P-RB

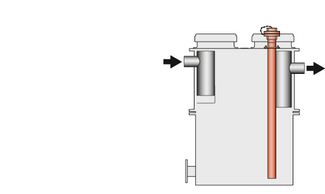

Features of upgrade level 1:

  • Connection for direct suction
  • Odour build-up only during cleaning

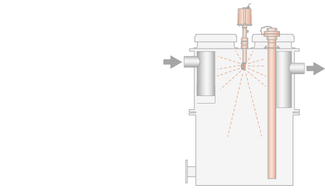

Features of upgrade level 2:

  • Connection for direct suction
  • High pressure cleaning operated manually
  • No odour build-up
LipuJet-P-RM (without disposal pump)

Features of upgrade level 3:

  • Connection for direct suction
  • Completely automatic programme
  • Optionally with drainage pump and remote control
  • No odour build-up
LipuJet-P-RA (without disposal pump)
LipuJet-P-RAP (with disposal pump)

Grease layer thickness measuring device

Suitable for
  • LipuJet-P
    • Oval NS 1 – 10
    • Round NS 2 – 22,5
  • LipuJet-S
    • Oval NS 1 – 10
    • Round NS 2 – 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
  • With visual display of fill level
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230VAC/5 VA
  • Max consumption approx. 12W
  • Weight: 2.8 kg

Grease layer thickness measuring device Multi Control

Suitable for
  • LipuJet-P
    • Oval NS 1 – NS 30
    • Round NS 2 – NS 20
  • LipuJet-S
    • Oval NS 1 – NS 10
    • Round NS 2 – NS 20
  • LipuSmart-P
    • Oval NS 1 – 10
Description
  • To determine the disposal intervals of grease separators
  • Suitable for liquid and/or harden fats
  • Delineation with colour-touchpanel
  • With integrated SD-card (4GB) for recording of the measuring process
  • With headed sounding stick (temperature is adjustable) to increase the operation safety
  • Three free of potential contacts for outoput of pre-alarm (adjustable), full-alarm (adjustable) and error
  • Measuring stick with adjusting scale
  • Delineation with plug-in cable connection, 3 m
  • Service voltage: 100 240VAC 50/60 Hz, 2 A
  • Power: ca. 43 W
  • Weight: 2.7 kg

Smell neutralisation

Suitable for
  • Grease separators (incl. external makes)
Description
  • Lockable control cabinet
    • From stainless steel, material grade 304
    • Ground surface
    • With side ventilation slots
  • Integrated timer
  • Incl. odour neutralisers: 9 l
  • With dosing pump for reliable discharge
  • Chemical resistant dosing hose
  • Signal column for status monitoring
  • PG gland for on-site connection
  • Control cabinet dimensions: 380 x 600 x 210 mm (W x H x D)
  • System ready to plug in
    • Incl. cable: 1.5 m
  • 230 V socket to be produced on-site
  • Weight: 36.2 kg

ACO Ozone Generator

Suitable for
  • Grease separators, indoors
  • Grease separators, outdoors
  • Lifting stations
  • Pumping stations
Description
  • ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
  • Material: acid-resistant stainless steel

Consists:

  • ACO Ozone - ozone generator
    • Size (L x W x H): 270 x 100 x 85 mm
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP20
  • ACO Ozone pump - feed pump
    • Size (L x W x H): 160 x 90 x 90 mm
    • Integrated filter
    • Nominal voltage 230 V / 50 Hz
    • Degree of protection IP54
  • ACO Ozone bracket - wall bracket
    • Size (L x W x H): 295 x 110 x 90 mm
  • Hoses

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Heating rod

Suitable for
  • Grease separators
Description
  • To liquefy grease layer
  • Incl. control
  • Electrical connector
    • 400 V/50 Hz/6.0 kW
  • Weight: 15 kg

Filling device

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Free outlet as per DIN 1988 Part 4
  • For connection to drinking water supply
  • With DVGW / KIWA approval and inclined valve R ¾ "
  • With pressure relief valve with dirt trap
  • Weight: 3.5 kg

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg

Viewing window

Suitable for
  • Grease separator
    • LipuJet-P-OB/OD/R/RD
    • LipuSmart-P-OB/OD
  • BioJet-P-OM/RM (NS 2-25)
Description
  • Nominal width: DN 200
  • With screen wiper
  • Weight: 3.2 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation of horizontal pipes DN 100 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation of horizontal pipes DN 150 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation of horizontal pipes DN 200 to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.3 kg

Sampling pot DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Sampling pot DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.1 kg

Sampling pot DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Odour-proof maintenance opening DN 450
  • Weight: 10.2 kg

Coarse trap DN 100

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Starch separator FapuJet-P-OAP
    • NS 0.5 – 1
Description
  • For installation in vertical pipes DN 100 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.7 kg

Coarse trap DN 150

Suitable for
  • Grease separator LipuJet-P/LipuSmart-P
    • NS 5.5 – 10
  • Starch separator FapuJet-P-OAP
    • NS 2
Description
  • For installation in vertical pipes DN 150 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 12.6 kg

Coarse trap DN 200

Suitable for
  • Grease separator LipuJet-P
    • NS 15 – 22,5
Description
  • For installation in vertical pipes DN 200 going to grease separator
  • Round shape with
    • Coupling socket seal (material SBR) on inlet and spigot on outflow
    • Basket made from stainless steel, material grade 316 to retain coarse substances
    • Odour-proof maintenance opening DN 450
  • Weight: 9.9 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 100
  • Length (L): 50 mm
  • Spindle travel (H1 – H2): 365 – 465 mm
  • Manual wheel diameter: 200 mm
  • Weight: 15 kg

Stop valve

Suitable for
  • Grease separators for free-standing installation
  • Starch separator for free-standing installation
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 150
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 478 – 639 mm
  • Manual wheel diameter: 200 mm
  • Weight: 29.4 kg

Stop valve

Suitable for
  • Grease separator for free-standing installation
    • NS 15-20
Description
  • Made of cast iron
  • Penstock plate, spindle made from stainless steel, material grade 304
  • DN 200
  • Length (L): 60 mm
  • Spindle travel (H1 – H2): 542 – 743 mm
  • Manual wheel diameter: 250 mm
  • Weight: 36 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 100
  • Length (L): 75 mm
  • Weight: 6.5 kg

Flange connection part

Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 150
  • Length (L): 75 mm
  • Weight: 10 kg

Flange connection part

Suitable for
  • Stop valve DN 200
    • 7610.00.12
Description
  • Stainless steel, material grade 304
  • Seal: NBR
  • DN 200
  • Length (L): 120 mm
  • Weight: 12.9 kg

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Inlet valve DN 200

Suitable for
  • Wastewater lifting plant
    • Muli-Star DDP 1/2
  • Grease separator made of polyethylene
    • From NS 15
Description
  • Made out of PVC
  • Push socket 200 mm with lip sealing ring on both sides
  • Total dimensions: 264 x 637 mm (L x H)
  • Weight: 8.4 kg

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
