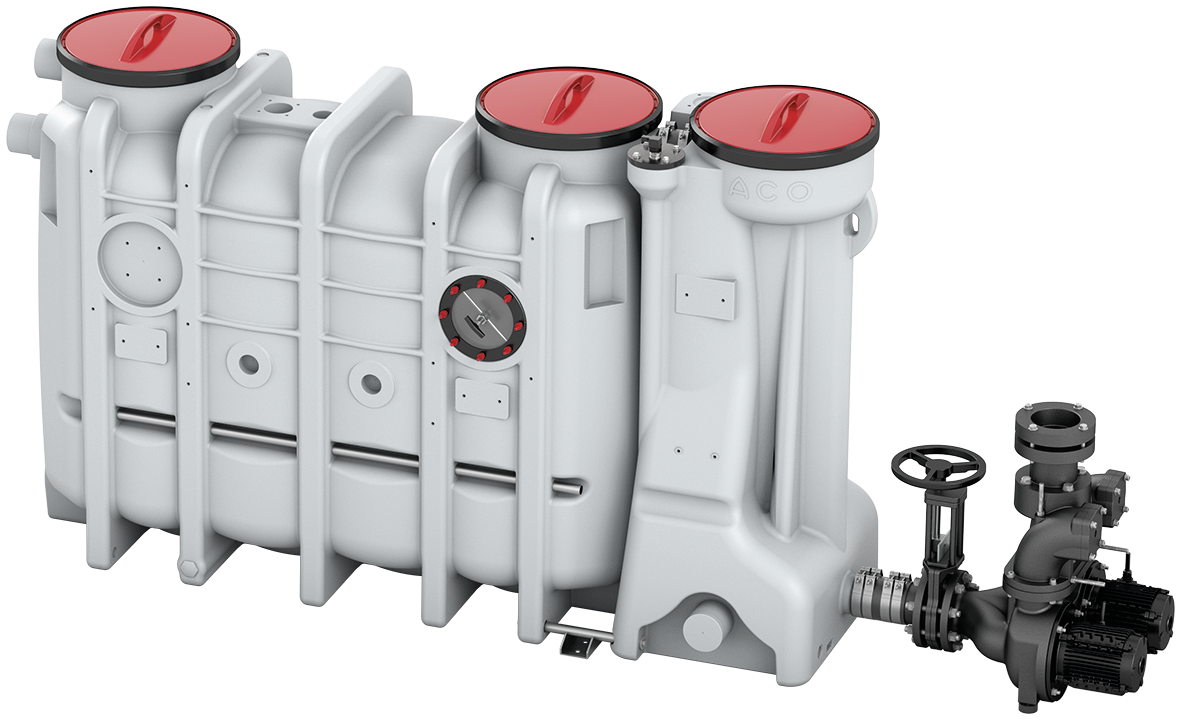

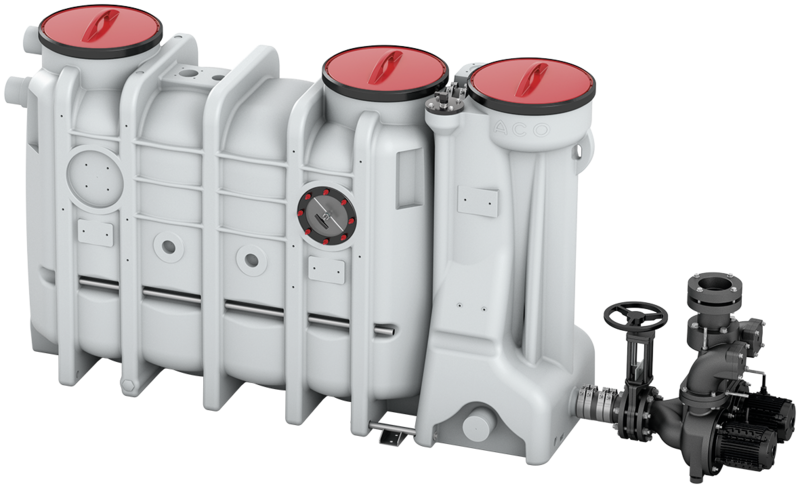

Grease separator with integrated lifting plant LipuSmart-P-OB basic model
Product benefits
- Integrated backflow protection
- Only one vent stack necessary
- For the LipuSmart-P NS 2, ACO recommends the on-site installation of 2 ventilation lines

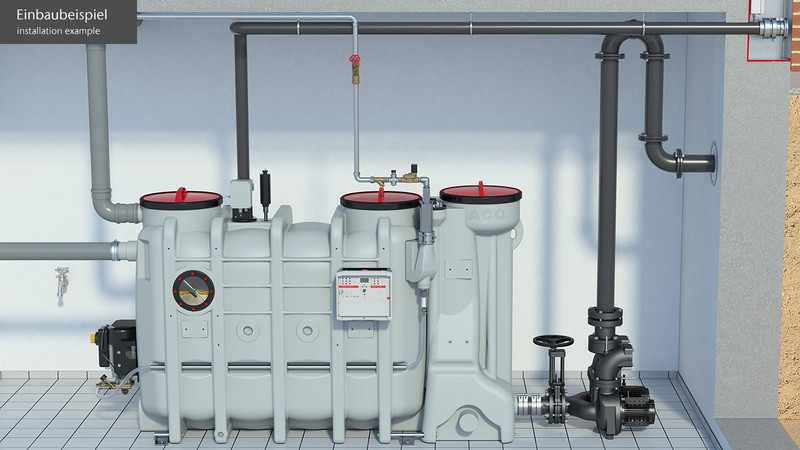

- Compact installation dimensions: The pump technology can be flexibly installed on 3 sides
- Innovative overall system control via integration in the building control technology
- 4in1 – complete solution
- Optional Modbus connection
- Structural stability of the container stability verification according to German Standard DIN 19901
Product information
- Disposal and cleaning by opening the cover (connected with odour generation)
Infobox

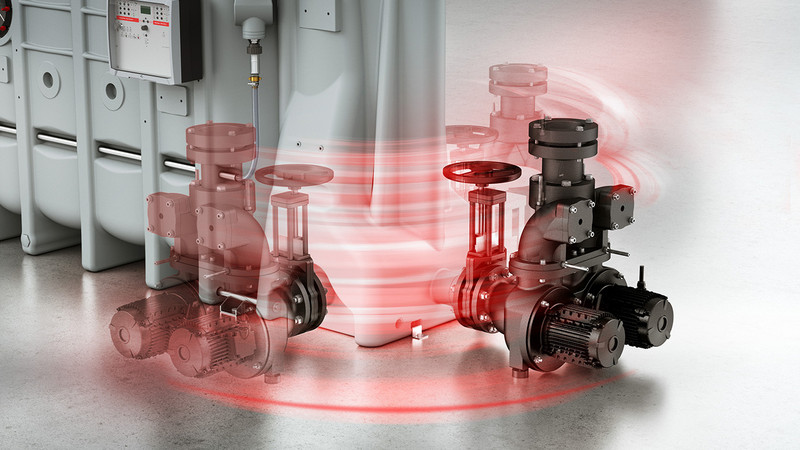

The LipuSmart pump technology can be flexibly mounted on 3 sides of the container.

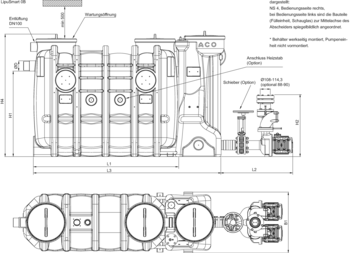

| Nominal size | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | H1 | H2 | H4 | B1 | D | |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| NS 2 | 1100 | 800 | 1625 | 1055 | 753 | 1500 | 742 | 110 |
| NS 3 | 1450 | 800 | 1975 | 1055 | 753 | 1500 | 742 | 110 |
| NS 4 | 1760 | 800 | 2285 | 1055 | 753 | 1500 | 742 | 110 |
| NS 5.5 | 1760 | 835 | 2287 | 1250 | 753 | 1700 | 960 | 160 |
| NS 7 | 1960 | 835 | 2487 | 1250 | 753 | 1700 | 960 | 160 |
| NS 8.5 | 2250 | 835 | 2777 | 1250 | 753 | 1700 | 960 | 160 |
| NS 10 | 2450 | 835 | 2977 | 1250 | 753 | 1700 | 960 | 160 |
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
Flashing light
Grease layer thickness measuring device
Suitable for
- LipuJet-P
- Oval NS 1 – 10
- Round NS 2 – 22,5
- LipuJet-S
- Oval NS 1 – 10
- Round NS 2 – 20
- LipuSmart-P
- Oval NS 1 – 10
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (80%) and advance warning of fill level (50%)
- With visual display of fill level
- With heated probe rod to increase reliability of operation
- Operating voltage: 230VAC/5 VA
- Max consumption approx. 12W
- Weight: 2.8 kg
ACO Ozone Generator
Suitable for
- Grease separators, indoors
- Grease separators, outdoors
- Lifting stations
- Pumping stations
Description
- ACO Ozone minimizes odors that can arise from grease seperators, lifting plants and pumping stations
- Material: acid-resistant stainless steel
Consists:
- ACO Ozone - ozone generator
- Size (L x W x H): 270 x 100 x 85 mm
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP20
- ACO Ozone pump - feed pump
- Size (L x W x H): 160 x 90 x 90 mm
- Integrated filter
- Nominal voltage 230 V / 50 Hz
- Degree of protection IP54
- ACO Ozone bracket - wall bracket
- Size (L x W x H): 295 x 110 x 90 mm
- Hoses
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
Heating rod
Suitable for
- Grease separators
Description
- To liquefy grease layer
- Incl. control
- Electrical connector
- 400 V/50 Hz/6.0 kW
- Weight: 15 kg
Filling device
Suitable for
- Grease separator
- LipuJet-P-OB/OD/R/RD
- LipuSmart-P-OB/OD
- BioJet-P-OM/RM (NS 2-25)
Description
- Free outlet as per DIN 1988 Part 4
- For connection to drinking water supply
- With DVGW / KIWA approval and inclined valve R ¾ "
- With pressure relief valve with dirt trap
- Weight: 3.5 kg
Connection box
Suitable for
- Grease separators
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection and remote control
- Made from stainless steel, material grade 304
- Fixing: "On wall"
- Dimensions (width x height x depth): 500 x 500 x 160 mm
- Weight: 11.6 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.20
- LipuLift-P-D/-DA/-DAP
Description
- Dimensions (width x height x depth): 565 x 565 x 15 mm
- Weight: 1.2 kg
Storz coupling for swinging gas lines
Suitable for
- For installation in connection box art. no. 7601.80.22
Description
- Storz coupling 75B
- For connection of the disposal vehicle pendulum gas line
- For pipe connection Rp 2 ½" (female thread)
- Weight: 1.8 kg
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.22
- LipuLift-P-D/-DA/-DAP
Description
- Stainless steel, material grade 304
- Dimensions (width x height x depth): 421 x 381 x 25 mm
- Weight: 1 kg
Connection box
Suitable for
- Grease separator
- Starch separators
- LipuLift-P-D/-DA/-DAP
Description
- For disposal connection, pendulum gas line (if necessary) and remote control
- From stainless steel, material grade 304
- "Surface mounted” version
- Glass beaded front
- Lockable door, left limit stop
- Dimensions W x H x D: 300 x 725 x 160 mm
- Weight: 10 kg
In-wall frame
Suitable for
- Connection box
- 7601.80.24
- LipuLift-P-D/-DA/-DAP
Description
- From stainless steel, material grade 304
- "In-wall” version
- Glass beaded front
- Dimension W x H x D:
- 405 x 830 x 30 mm
- Weight: 2.1 kg
Viewing window
Suitable for
- Grease separator
- LipuJet-P-OB/OD/R/RD
- LipuSmart-P-OB/OD
- BioJet-P-OM/RM (NS 2-25)
Description
- Nominal width: DN 200
- With screen wiper
- Weight: 3.2 kg
Coarse trap DN 100
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 1 – 4
- Starch separator FapuJet-P-OAP
- NS 0.5 – 1
Description
- For installation in vertical pipes DN 100 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 9.7 kg
Coarse trap DN 150
Suitable for
- Grease separator LipuJet-P/LipuSmart-P
- NS 5.5 – 10
- Starch separator FapuJet-P-OAP
- NS 2
Description
- For installation in vertical pipes DN 150 going to grease separator
- Round shape with
- Coupling socket seal (material SBR) on inlet and spigot on outflow
- Basket made from stainless steel, material grade 316 to retain coarse substances
- Odour-proof maintenance opening DN 450
- Weight: 12.6 kg
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
Connection ports ventilation
Suitable for
- LipuSmart-P
Description
- Made of PE-HD
- DN70 (OD 75mm)
Inlet socket DN 50
Suitable for
- Junior basement gully with backflow stop
- Basement gully DN 100
- Sinkamat-K (free-standing)
- LipuSmart-P
- Muli-Mini
Description
- Made of plastic
- For lateral input option
- For fitting on-site
- Weight: 0.1 kg
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
Stop valve
Suitable for
- LipuSmart-P inlet pump unit
Description
- Made of cast iron
- Slide plate, spindle made of stainless steel, material grade 304
- DN 100
- Length (L): 50 mm
- Spindle path (H1 – H2): 365 – 465 mm
- Hand wheel diameter: 200 mm
- Incl. seals and fixing material
- Weight: 15 kg
Stop valve DN 80
Suitable for
- LipuSmart-P
- Muli-Star MDP1/MWP1
- Muli-Star DDP 1/2
Description
- Made of cast iron
- 8 screws and nuts
- 1 DN 80 seal
- Length: 180 mm
- Weight: 19.4 kg
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 100
- Length (L): 50 mm
- Spindle travel (H1 – H2): 365 – 465 mm
- Manual wheel diameter: 200 mm
- Weight: 15 kg
Stop valve
Suitable for
- Grease separators for free-standing installation
- Starch separator for free-standing installation
Description
- Made of cast iron
- Penstock plate, spindle made from stainless steel, material grade 304
- DN 150
- Length (L): 60 mm
- Spindle travel (H1 – H2): 478 – 639 mm
- Manual wheel diameter: 200 mm
- Weight: 29.4 kg
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 100
- Length (L): 75 mm
- Weight: 6.5 kg
Flange connection part
Description
- Stainless steel, material grade 304
- Seal: NBR
- DN 150
- Length (L): 75 mm
- Weight: 10 kg
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
Inlet valve DN 150
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Type 7 – Type 10
Description
- Made of PVC
- 160 mm push socket on both sides with rim sealing ring
- Overall dimensions: 226 x 510 mm (L x H)
- Weight: 7 kg
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
