Lipumax G-H

Product benefits

  • Simple to install, space efficient
  • Top section with odour proof sealed cover
  • Including rubber seal ring for connection with cover plate

Contact
Downloads

Product information

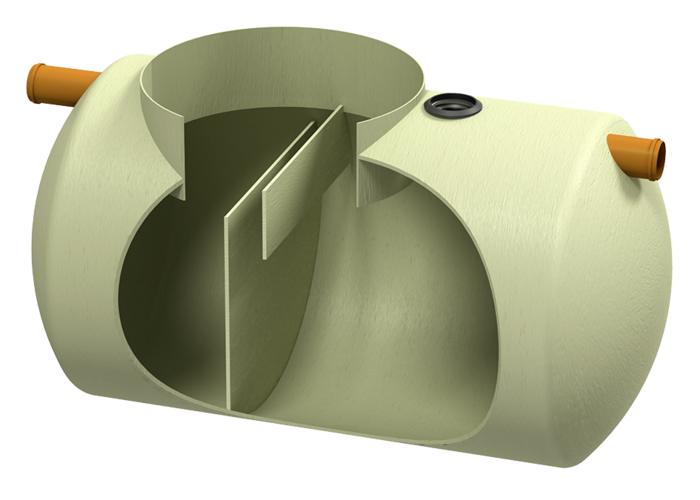

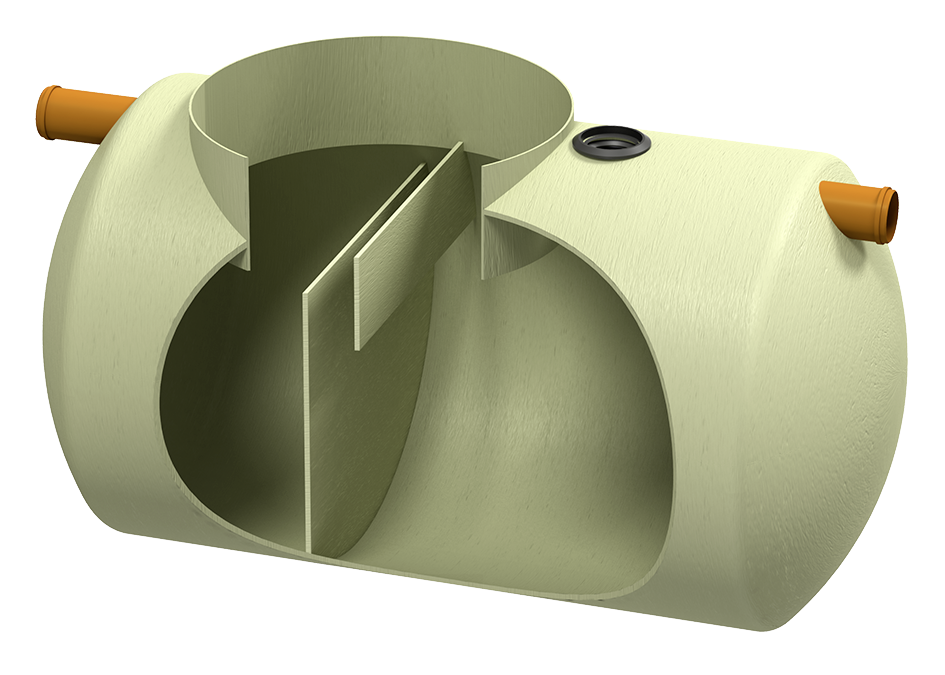

  • Tank made of glass reinforced plastic
  • With integrated sludge trap
  • One-piece construction
Nominal sizeInlet/outlet

DN/OD		ContentsWeightItem

number		Remember
Sludge trapGrease storeTotal capacity
[l][l][l][kg]
4 NS110400217162414712452.01
800217195315812453.01
7 NS160700381330828412454.01
1400381385230412455.01
10 NS1601000545446132512456.01
2000545531935512457.01
15 NS2001500833611740612458.01
3000833743745112459.01
20 NS20020001111794545512460.01
40001111978251512461.01
25 NS200250013971166556912462.01
500013971393964612466.01
30 NS250300016761377863712463.01
600016761651866512467.01
35 NS2503500197618615118112464.01
7000197622607131312468.01
40 NS3154000229619478131912465.01
8000229624019148112469.01
Nominal sizeInlet/outlet

DN/OD		ContentsWeightItem

number
Sludge trapTotal capacity
4 NS110400 l1624 l147 kg12452.01
4 NS110800 l1953 l158 kg12453.01
7 NS160700 l3308 l284 kg12454.01
7 NS1601400 l3852 l304 kg12455.01
10 NS1601000 l4461 l325 kg12456.01
10 NS1602000 l5319 l355 kg12457.01
15 NS2001500 l6117 l406 kg12458.01
15 NS2003000 l7437 l451 kg12459.01
20 NS2002000 l7945 l455 kg12460.01
20 NS2004000 l9782 l515 kg12461.01
25 NS2002500 l11665 l569 kg12462.01
25 NS2005000 l13939 l646 kg12466.01
30 NS2503000 l13778 l637 kg12463.01
30 NS2506000 l16518 l665 kg12467.01
35 NS2503500 l18615 l1181 kg12464.01
35 NS2507000 l22607 l1313 kg12468.01
40 NS3154000 l19478 l1319 kg12465.01
40 NS3158000 l24019 l1481 kg12469.01

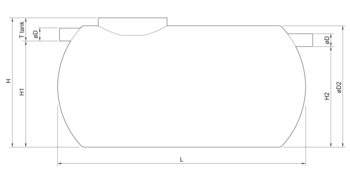

Item

number		Nominal sizeDimensionsACO Belts*
H1H2D2HT tankInlet/outlet differenceLength
[mm][mm][mm][mm][mm][mm][mm][piece]
12452.014 NS10801010122013202401101800
12453.014 NS108010101220132024011021502
12454.017 NS133012601520162029016023812
12455.017 NS133012601520162029016027502
12456.0110 NS133012601520162029016031062
12457.0110 NS133012601520162029016036762
12458.0115 NS128012101520162034020042852
12459.0115 NS128012101520162034020051853
12460.0120 NS128012101520162034020054773
12461.0120 NS128012101520162034020067274
12462.0125 NS152014501820192040020056595
12466.0125 NS152014501820192040020067596
12463.0130 NS152014501820192040025066186
12467.0130 NS152014501820192040025079387
12464.0135 NS182017502220232050025062267
12468.0135 NS182017502220232050025073269
12465.0140 NS172016502220232060031568778
12469.0140 NS172016502220232060031582079
Top section for PE or GRP shafts (600)

Top section for PE or GRP shafts (600)

Sampling units

Sampling units

ACO Belt 75 SS

Suitable for

7,5 m

Description
  • Load strap: Polyester
  • Tensioner and hooks: Stainless steel
  • Package includes 2 pcs of anchors T10/150SS
  • Usage for tanks dia ≤ 2.57 m
Item no.
2565.225

ACO Belt 120 SS

Suitable for

12 m

Description
  • Load strap: Polyester
  • Tensioner and hooks: Stainless steel
  • Package includes 2 pcs of anchors T10/150SS
  • Usage for tanks dia ≤ 2.57 m
Item no.
2565.270

Control unit GA 1 + one sensor GA - SG1

Suitable for

GA-1 is an alarm device specially designed for grease separators. They indicate when it is time to empty the grease separator and thus prevents harmful grease emissions to the sewer system.

Description
  • Dimensions: 125 mm x 75 mm x 35 mm (L x H x D
  • Material: Polycarbonate
  • Enclosure: IP65
  • Operation temperature: -30 °C...+50 °C
    • Supply voltage: 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption: GA-1: 5 VA, GA-2: 5 VA
    • Sensors: 1 or 2 GA-SG1 sensors
    • Relay outputs: Potential-free relay output 250 V, 5 A
    • 1 pcs for GA-1 Operational delay 10 sec. Relay de-energize
    • 2 pcs for GA-2 at trigger point.
    • Electrical safety: IEC/EN 61010-1, Class II , CAT II
    • EMC: IEC/EN 61000-6-3 (Emission)
    • IEC/EN 61000-6-1 (Immunity)
Item no.
418563

Control unit GA 2 + two senzors GA - SG1

Suitable for

GA-2 is an alarm device for monitoring the thickness of the grease layer accumulating in a grease interceptor and the blocking of the interceptor. The system consists of a GA-2 control unit, two GA-SG1 sensors and a cable joint.

Description
  • Dimensions 125 mm x 75 mm x 35 mm (L x H x D)
  • Package 1,2 kg (control unit + 2 sensors + cable joint)
  • Enclosure IP 65, material polycarbonate
  • Cable glands adjustment range 6-10 mm
  • Operation temperature -30 ºC...+50 ºC
    • Supply voltage 230 VAC ± 10 %, 50/60 Hz
    • The device is not equipped with a mains switch
    • Power consumption 5 VA
    • Sensors 2 pcs GA-SG1 sensors
    • Relay output 2 pcs potential-free relay outputs
    • 250 V, 5 A Operational delay 10 sec.
    • Relay de-energize at trigger point.
    • Electrical safety IEC/EN 61010-1, Class II , CAT II
    • EMC Emission IEC/EN 61000-6-3
    • Immunity IEC/EN 61000-6-1
Item no.
418564
