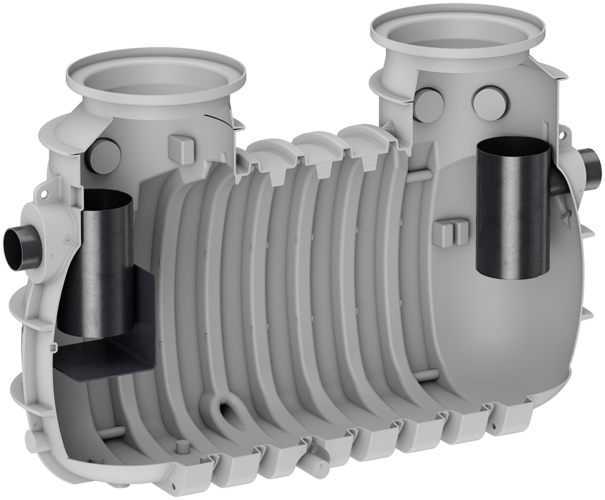

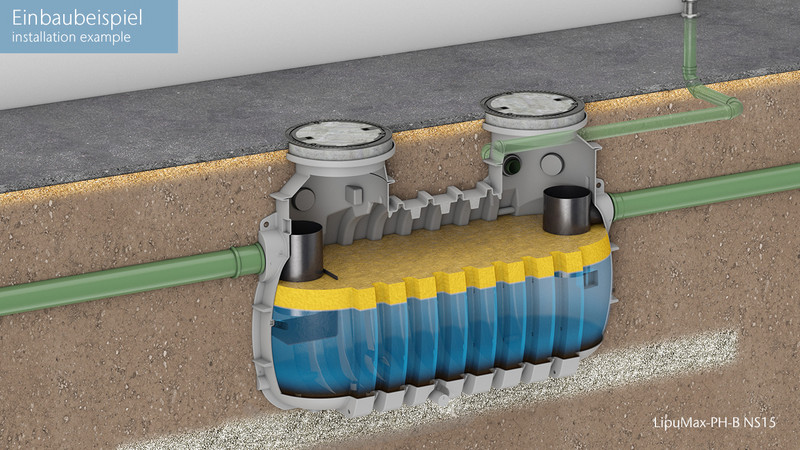

LipuMax-P-H-B Basic Fix

Product benefits

  • Grease separator with integrated sludge trap in a single tank
  • Reduced/simplified installation work

Product information

Grease separator

  • Grease separator in accordance with EN 1825 Nominal Size 10, 15 and 20
  • For underground installation
  • With integrated sludge trap
  • 2 x maintenance openings Ø 650 mm for the respective accommodation of a required cover system (accessories) with load classes A 15, B 125 or D 400
  • Maximum inflow depth ZT up to approx. 1.15 m (distance from top edge of ground to lower edge of connection nozzle/ pipe invert)
  • Maximum installation depth ET up to approx. 2.25 m (distance from top edge of ground to lower edge of tank)
  • Buoyancy safety of the tank: Buoyancy-proof up to 1.65 m above the lower edge of the tank with cover system and load distribution plate (for A 15, B 125 / D 400)
  • Declaration of Performance (DoP) No: BD/G1/-1024
  • Connection parts for on-site vent stack
    • 1 x Socket seal DN 100

Connections

  • Pipe connections:
  • Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15/20) for on-site supply line
  • Horizontal pipe socket DN 150 / OD 160 mm (NS 10) or DN 200 / OD 200 mm (NS 15/20) for on-site drain line
  • 8 x horizontal pipe sockets (closed) DN 100 / OD 110 mm for on-site vent stack
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Remember
Sludge trapGrease storeOverall
[l][l][l][kg]
NS 10DN 150100055020901853210.80.01
NS 15DN 200150062527802203215.80.01
NS 20DN 200200082035652603220.80.01
Nominal sizeInlet/

Outlet
ContentsWeightItem

number
Sludge trapGrease storeOverall
NS 10DN 1501000 l550 l2090 l185 kg3210.80.01
NS 15DN 2001500 l625 l2780 l220 kg3215.80.01
NS 20DN 2002000 l820 l3565 l260 kg3220.80.01

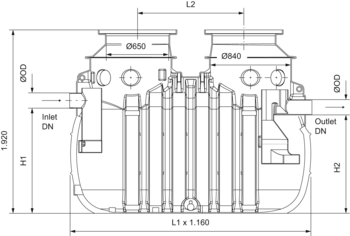

Scale drawing
Nominal sizeSludge trapDimensions
H1H2L1L2
[l][mm][mm][mm][mm]
NS 1010001100103025201115
NS 1515001080101030101605
NS 2020001080101037502340

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 10 m
  • Weight: 6.4 kg

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 20 m
  • Weight: 7.8 kg

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 30 m
  • Weight: 9.6 kg

Extension 450

Suitable for
  • Sampling shaft
Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 8.8 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg

Removal key for covers

Suitable for
  • Covers load class
    • A, B or D
Description
  • Removal key for easier removal of the covers / manhole covers

Stepox

Description
  • Weight: 5.9 kg

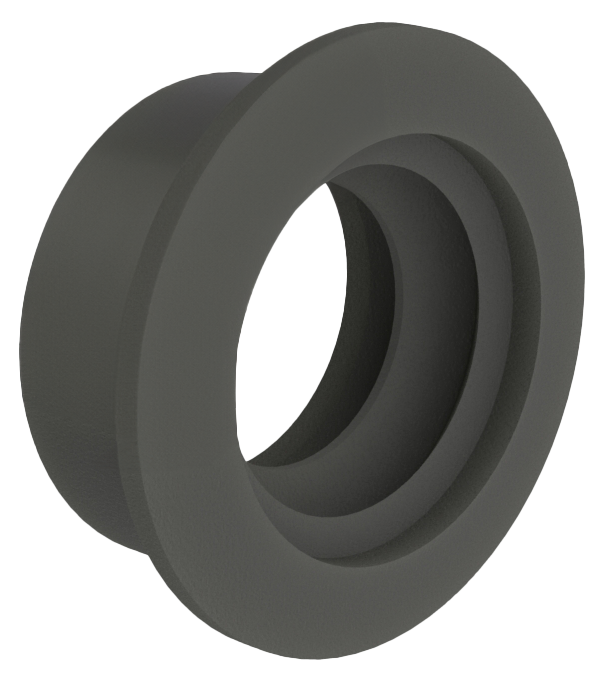

0150.27.08: Muffendichtung DN 200 / OD 200 mm

Description
  • Weight: 0.6 kg
