LipuLift-PF-B Basis

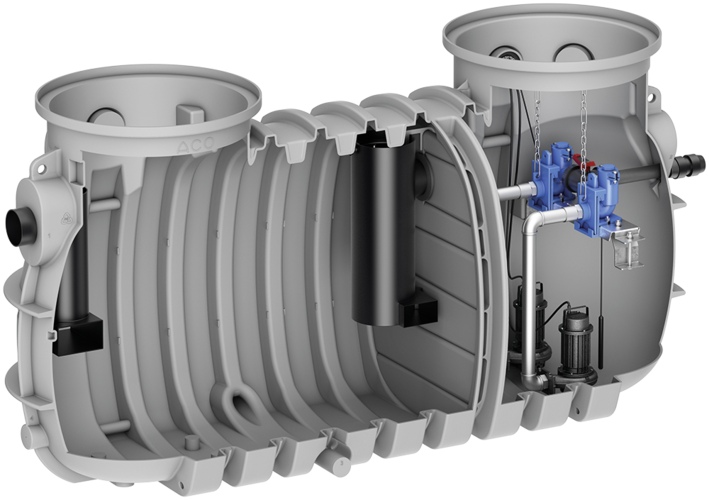

Product benefits
- Separator, sampling and pump station in one housing
- No piping between the components necessary
- Only one plant control
- Optimal air exchange due to interruption of the partition wall between separator and pump station
- High effective volume of the pumping station for low pump wear
- Four comfort stages possible

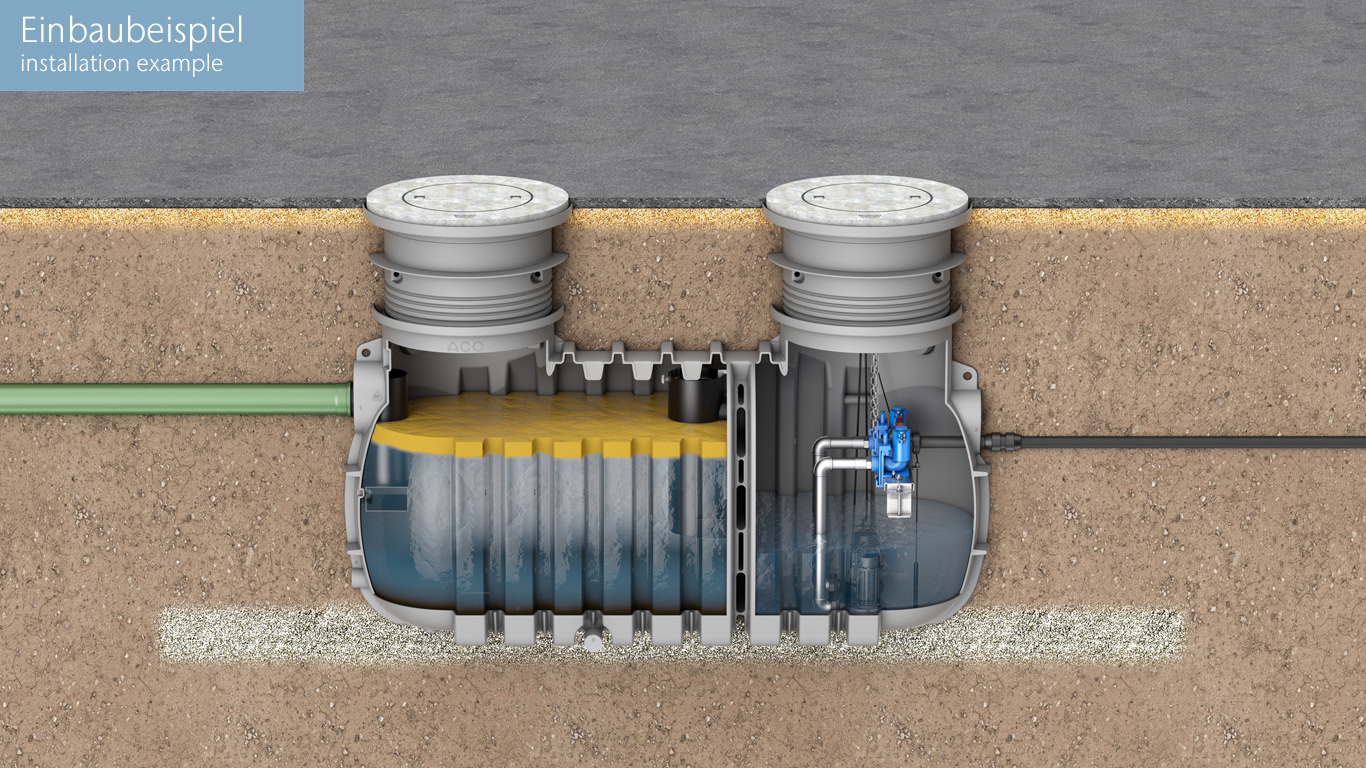

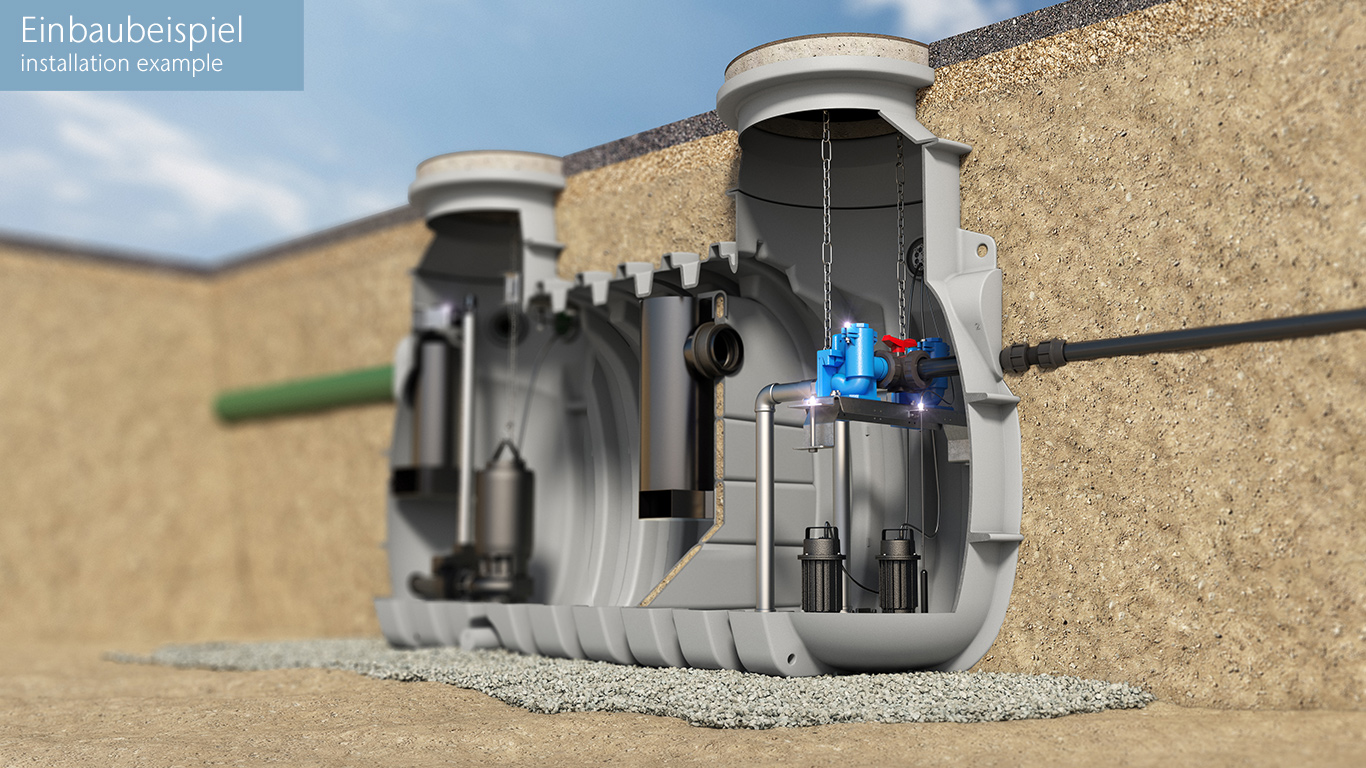

Product information
- Grease separator according to EN 1825-1 made of polyethylene for underground installation with integrated dual pumping station according to EN 12050
- Flexible version for variable inlet inverts

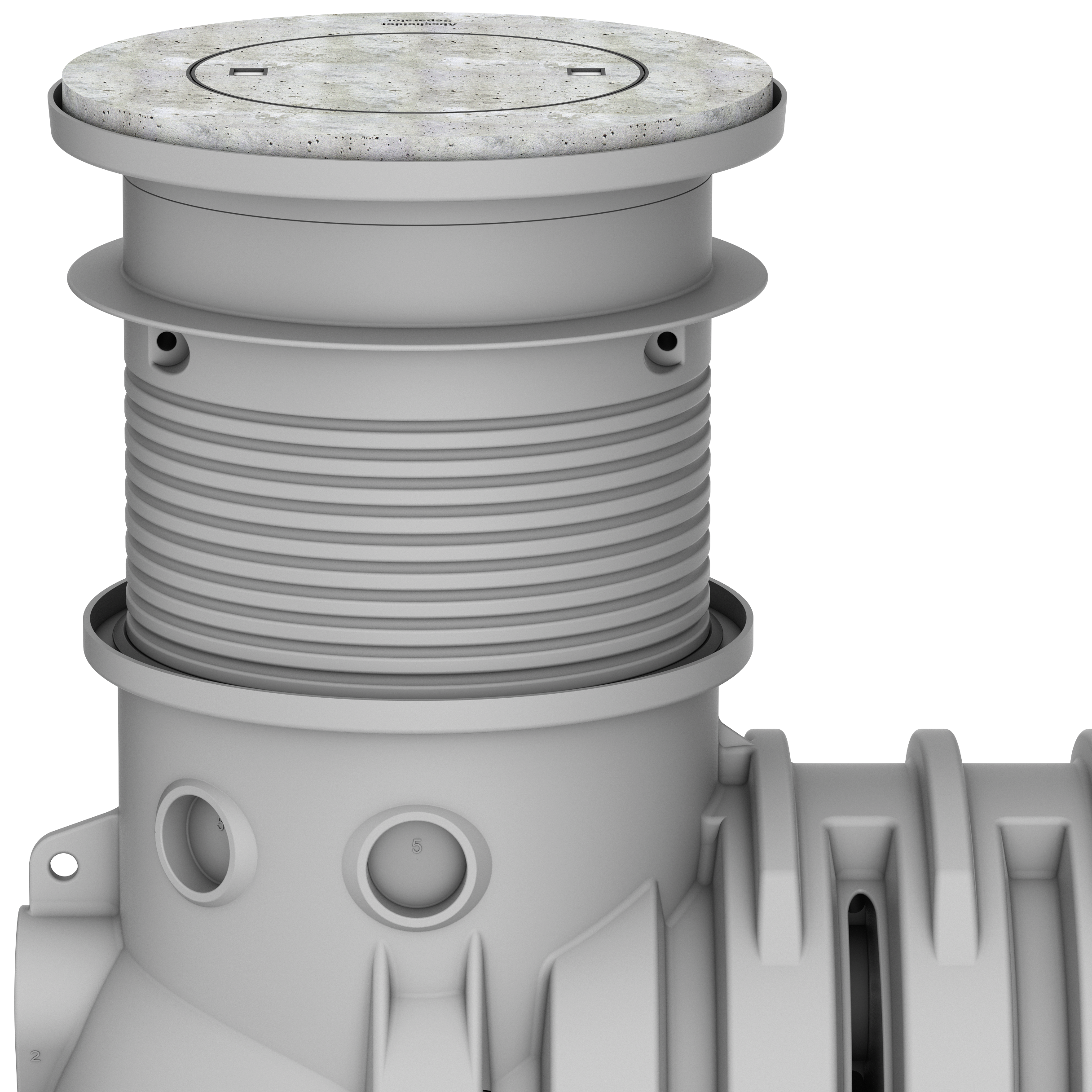

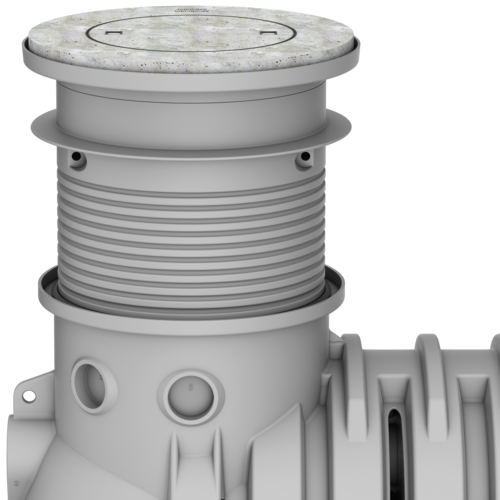

- Two dome openings, each to accommodate a top section with covers according to either class A, B or D
- Integrated pumping station according to EN 12050, accessible via the manhole cover
- Pressure connection: 2 "- OD Ø 63 mm (PE pipe)
- Ball backflow preventer
- Voltage: 400 V, 50 Hz, speed: 2900 rpm
- Protection class IP 68; Operating mode: 51
- Disposal and cleaning via the manhole cover
Infobox
Buoyancy protection
- Load class A15 and B125
- Container buoyancy-proof from the container bottom up to a height of 1,650 mm (load class A15 and B125) with on-site concrete slab
- Load class D400
- Container buoyancy-proof from the container bottom up to a height of 1,650 mm (load class D400) with a concrete load distribution plate to be created on site
Please note
- For the functionality of the pumping station, you can choose between a dynamic pressure bell (0155.41.90) or a pressure sensor (0178.63.87 or 0178.63.88)

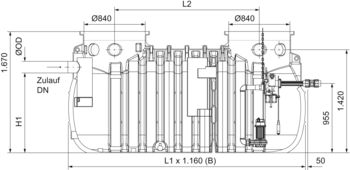

| Nominal size | Dimensions | |||
|---|---|---|---|---|
| L1 | L2 | H1 | B | |
| [mm] | [mm] | [mm] | [mm] | |
| NS 4 | 2770 | 1500 | 1125 | 1160 |
| NS 7 | 3260 | 1990 | 1100 | 1160 |
| NS 10 | 3750 | 2480 | 1100 | 1160 |
compression bell
Suitable for
- LipuLift-P
- LipuLift-PF
Description
- Dynamic pressure bell for switching the pump technology via a pneumatic measuring hose with air bubble injection
- Tube length: 20 meter
- Attention! Laying must be carried out without kinks, rising to the switching device
- Rabattgruppe: 11
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- With cable for installation: 20 m
- Weight: 2 kg
- Rabattgruppe: 12
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- Cable for installation: 40 m
- Weight: 3.4 kg
- Rabattgruppe: 12
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 10 m
- Weight: 6.4 kg
- Rabattgruppe: 11
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 20 m
- Weight: 7.8 kg
- Rabattgruppe: 11
Grease layer thickness measuring device
Suitable for
- Grease separator LipuMax-P for underground installation
- LipuLift-P
Description
- For electronic measurement of layer of grease
- Suitable for liquid and/or congealing grease
- Measuring device with plug and used connecting cable, length: 3 m
- With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
- With visual display of fill level for advance warning and full warning
- With heated probe rod to increase reliability of operation
- Operating voltage: 230 V/50 Hz
- Max consumption approx. 12W
- Cable length: 30 m
- Weight: 9.6 kg
- Rabattgruppe: 11
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Open air cupboard
Suitable for
- GRP outdoor cabinet for on-site pressure line
- DN 80
- DN 100
- DN 125
- DN 150
- LipuLift-P Serie
- Powerlift-P/F-H
Description
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- With mounting plate incl. base
- With heating and thermostat
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- Weight: 100 kg
- Rabattgruppe: 12
Outdoor cabinet
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-B/P-D
Description
- As empty housing
- Dimensions: 310 x 230 x 1,400 mm (L x W x H)
- For installation for an on-site backflow loop in DN 50
- With heated cabinet and thermostat, 230 V, 50 Hz
- Integrated back-up fuse: 1-pole B16A
- With mounting plate and safety lock
- Weight: 13.8 kg
- Rabattgruppe: 12
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21.1 kg
- Rabattgruppe: 12
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-DA/P-DAP
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
- Rabattgruppe: 12
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- LipuLift-P-B/P-D
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE16 and work socket
- Integrated back-up fuse: 3-pole C20A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
- Rabattgruppe: 12
Cable feedthrough ND 100
Suitable for
- LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
- LipuMax-P/PH-B/D
- Muli-Flex
Description
- Material: V4A
- For simple and fast sealing of up to 5 cables
- Seal against pressurised water
- Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
- Weight: 1 kg
- Rabattgruppe: 11
Compression fitting 63 x 75 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø75 mm
- Weight: 0.8 kg
- Rabattgruppe: 12
Compression fitting 63 x 90 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø90 mm
- Weight: 0.7 kg
- Rabattgruppe: 12
Guide strap
Suitable for
- Top section
- 0178.08.35
Description
- Quantity required
- 1 pce for Muli-Max Mono
- 2 pces for Muli-Max Duo
- 2 pces for LipuLift-P
- Weight: 1.6 kg
- Rabattgruppe: 12
Operating Logbook
Suitable for
- Grease separator
- For underground installation
- For free-standing installation
Description
- Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
- Format: A4 with double filing rings
- Size: 60 pages
- Laid out to cover 5 years
- Weight: 0.3 kg
- Rabattgruppe: 11
