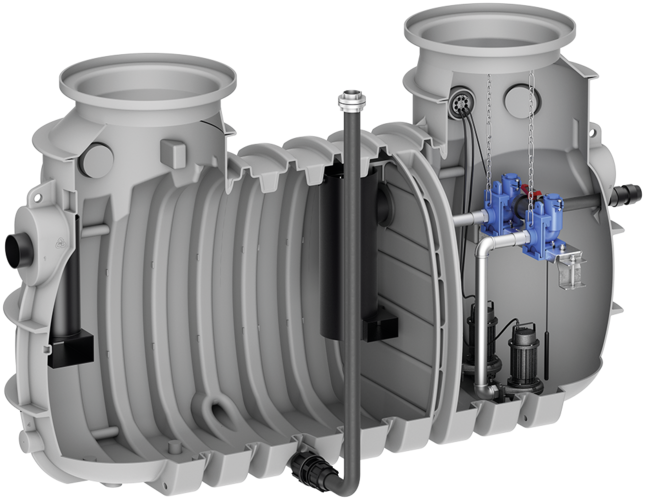

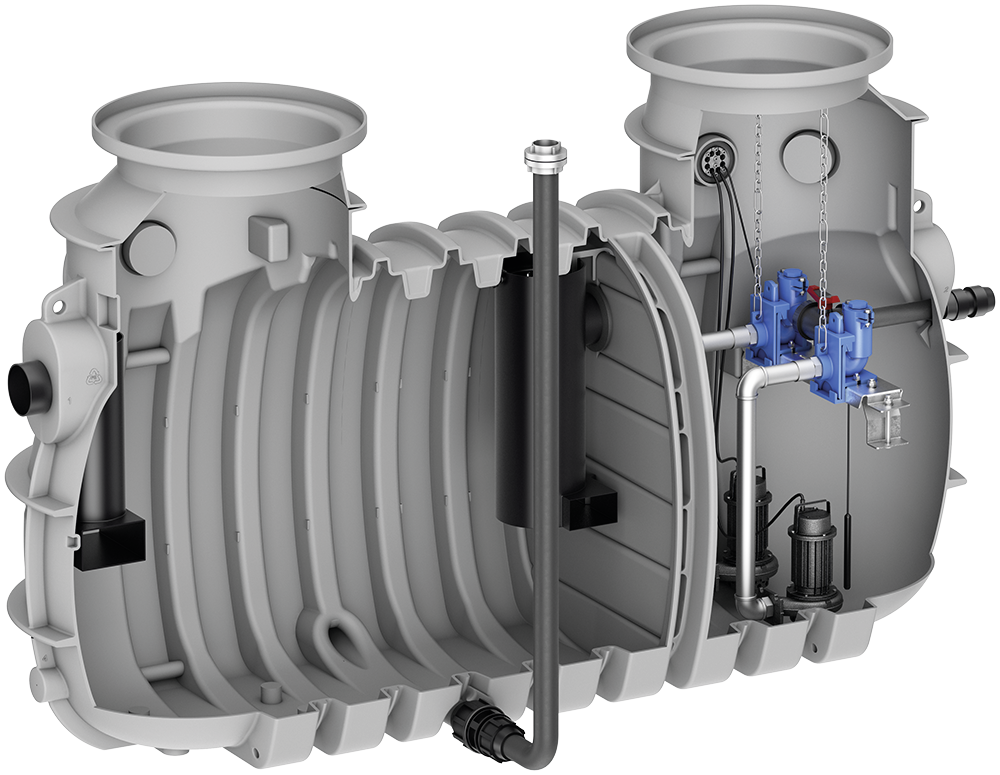

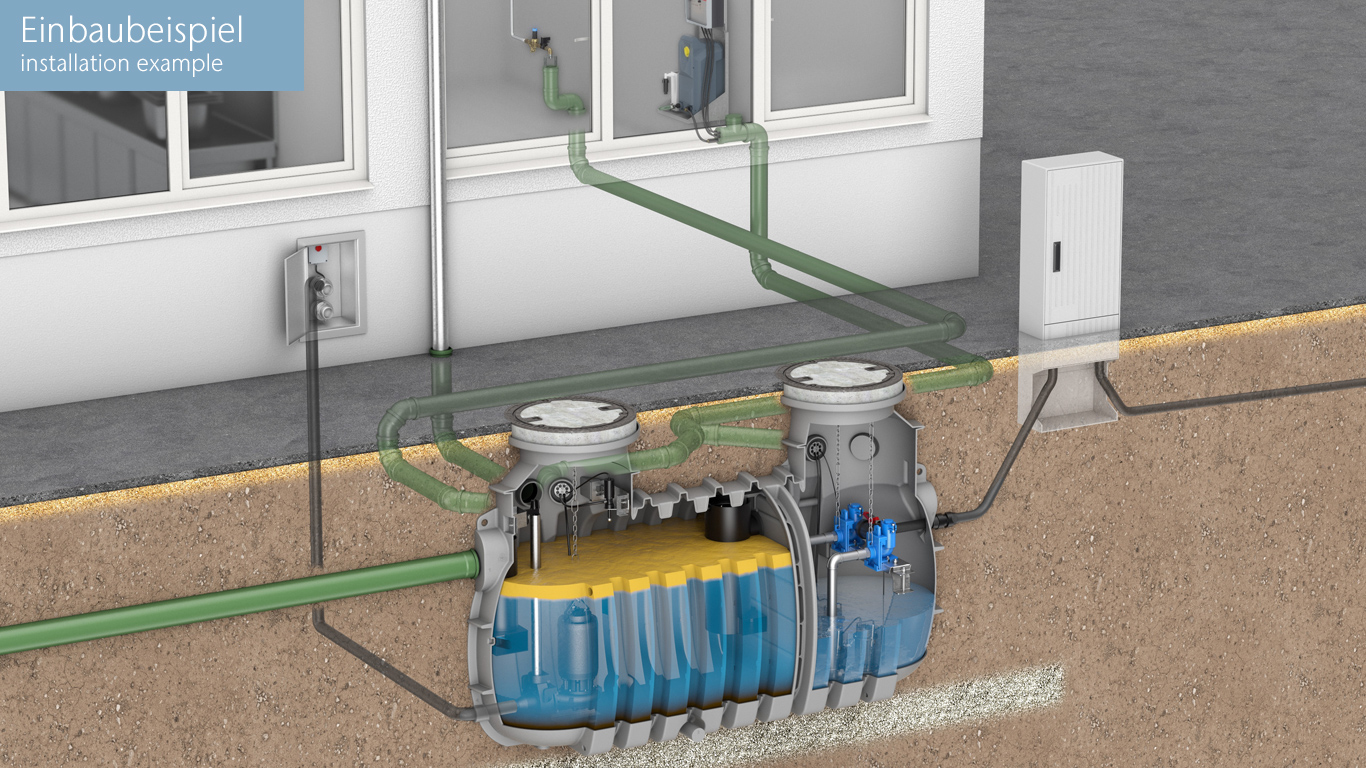

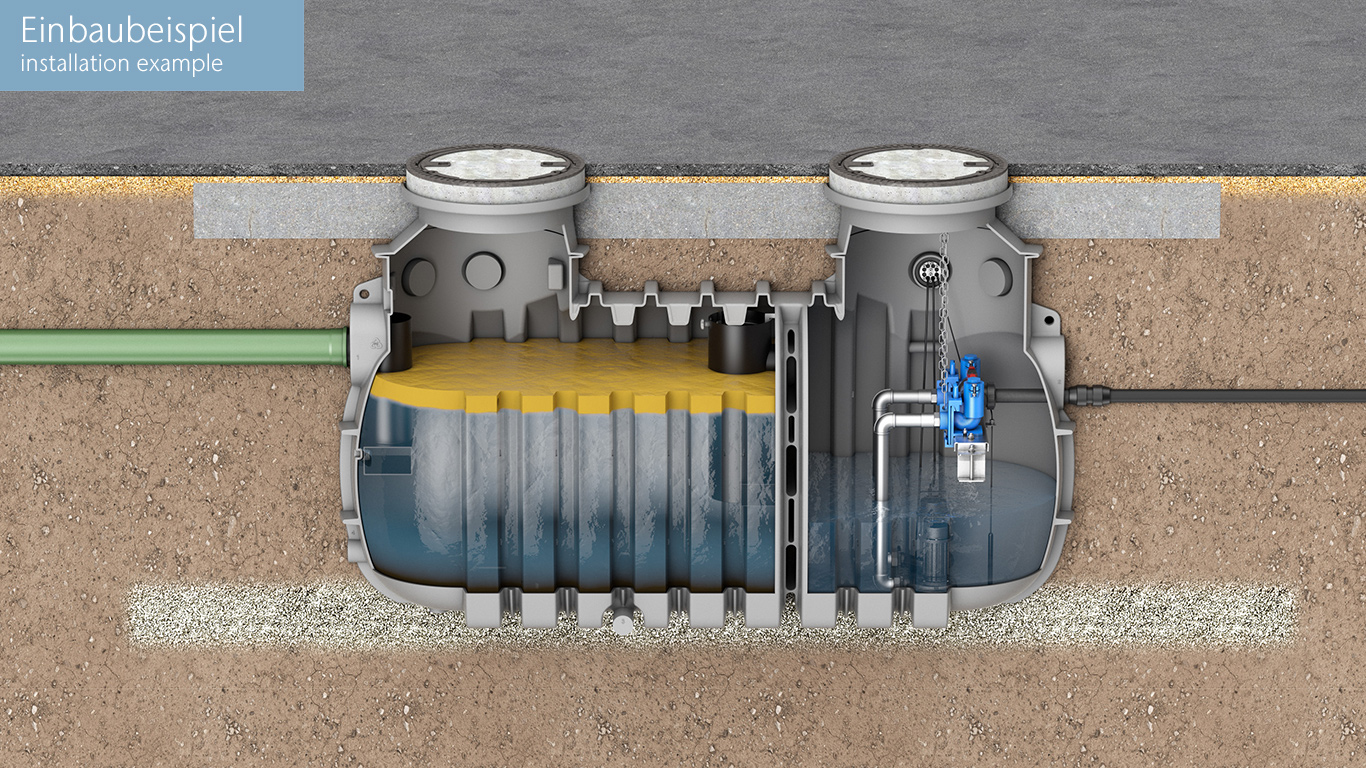

LipuLift-P-D

Product benefits

  • Separator, sampling and pump station in one housing
  • No piping between the components necessary
  • Only one plant control
  • Optimal air exchange due to interruption of the partition wall between separator and pump station
  • High effective volume of the pumping station for low pump wear
  • Four comfort stages possible

Product information

  • Grease separator according to EN 1825-1 made of polyethylene for underground installation with integrated dual pumping station according to EN 12050

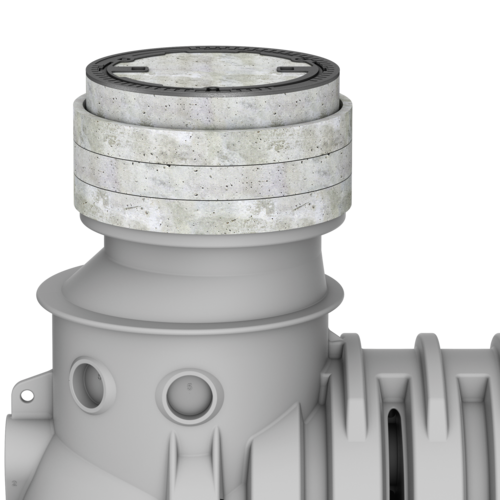

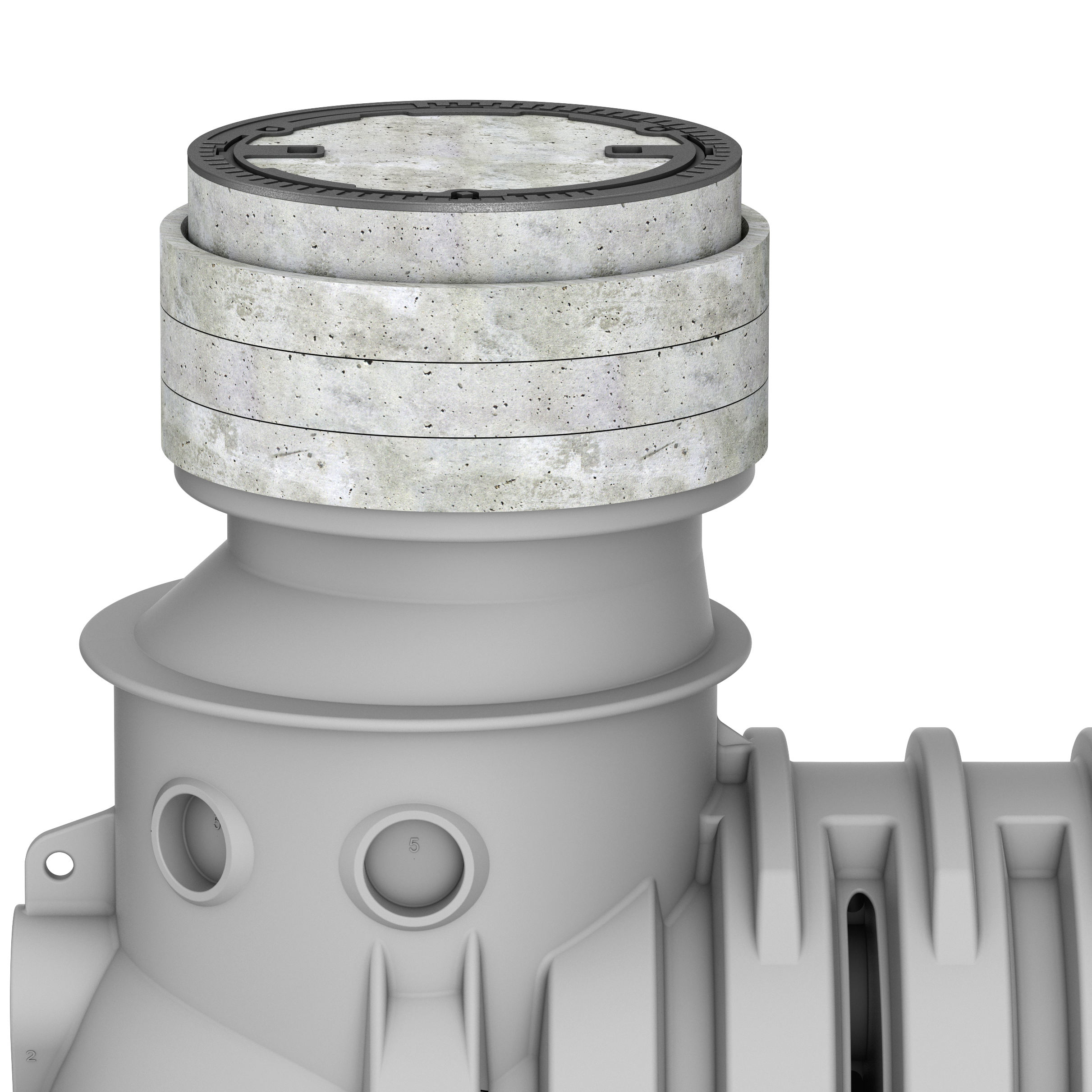

  • Two dome openings, each for receiving support rings with a total installation height of max. 300 mm and covers for load class A, B or D.
    • Minimum inlet invert 900 mm (use of covers without support rings)
    • Maximum inlet depth: 1,200 mm (use of covers with support rings with a total installation height of 300 mm)
  • Integrated pumping station according to EN 12050, accessible via the manhole cover
    • Pressure connection: 2 "- OD Ø 63 mm (PE pipe)
    • Ball backflow preventer
    • Voltage: 400 V, 50 Hz, speed: 2900 rpm
    • Protection class IP 68; Operating mode: S1
  • With a factory-prepared suction line made of PE-HD DN 65 (OD 75 mm), with Storz-B coupling and blind cover
  • Disposal with closed cover
  • Cleaning via the manhole covers

Infobox

Buoyancy protection

  • Load class A15 and B125
    • Container buoyancy-proof from the container bottom up to a height of 1,650 mm (load class A15 and B125) with on-site concrete slab
  • Load class D400
    • Container buoyancy-proof from the container bottom up to a height of 1,650 mm (load class D400) with a concrete load distribution plate to be created on site

Please note

  • For the functionality of the pumping station, you can choose between a dynamic pressure bell (0155.41.90) or a pressure sensor (0178.63.87 or 0178.63.88)
Nominal sizeNominal widthContentsKey data pump unitItem

number
Remember
Sludge trapGrease storeOverallTypeUsable volumeDelivery head
[l][l][l][l][m]
NS 4110 mm5903701260Sat-100/D66011.83204.20.1111
NS 7160 mm7805501760Sat-100/D66011.83207.20.1111
Sat-150/D66015.53207.20.1211
NS 10160 mm10107102260Sat-150/D66015.53210.20.1211
Sat‑200/D66017.53210.20.1311
Nominal sizeNominal widthContentsKey data pump unitItem

number
Sludge trapGrease storeOverallTypeUsable volume
NS 4110 mm590 l370 l1260 lSat-100/D660 l3204.20.11
NS 7160 mm780 l550 l1760 lSat-100/D660 l3207.20.11
NS 7160 mm780 l550 l1760 lSat-150/D660 l3207.20.12
NS 10160 mm1010 l710 l2260 lSat-150/D660 l3210.20.12
NS 10160 mm1010 l710 l2260 lSat‑200/D660 l3210.20.13

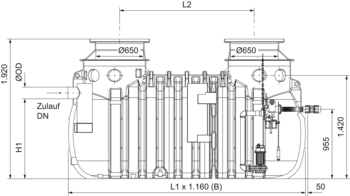

Nominal sizeDimensions
L1L2H1B
[mm][mm][mm][mm]
NS 42770150011251160
NS 73260199011001160
NS 103750248011001160

compression bell

Suitable for
  • LipuLift-P
  • LipuLift-PF
Description
  • Dynamic pressure bell for switching the pump technology via a pneumatic measuring hose with air bubble injection
  • Tube length: 20 meter
  • Attention! Laying must be carried out without kinks, rising to the switching device
  • Rabattgruppe: 11

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • With cable for installation: 20 m
  • Weight: 2 kg
  • Rabattgruppe: 12

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • Cable for installation: 40 m
  • Weight: 3.4 kg
  • Rabattgruppe: 12

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 10 m
  • Weight: 6.4 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 20 m
  • Weight: 7.8 kg
  • Rabattgruppe: 11

Grease layer thickness measuring device

Suitable for
  • Grease separator LipuMax-P for underground installation
  • LipuLift-P
Description
  • For electronic measurement of layer of grease
  • Suitable for liquid and/or congealing grease
  • Measuring device with plug and used connecting cable, length: 3 m
  • With two voltage-free changeover contacts to display full warning (100%) and advance warning of fill level (80%)
  • With visual display of fill level for advance warning and full warning
  • With heated probe rod to increase reliability of operation
  • Operating voltage: 230 V/50 Hz
  • Max consumption approx. 12W
  • Cable length: 30 m
  • Weight: 9.6 kg
  • Rabattgruppe: 11

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Open air cupboard

Suitable for
  • GRP outdoor cabinet for on-site pressure line
    • DN 80
    • DN 100
    • DN 125
    • DN 150
,
  • LipuLift-P Serie
  • Powerlift-P/F-H
Description
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • With mounting plate incl. base
  • With heating and thermostat
  • With CEE32 and work socket with earth contact
  • Integrated back-up fuse: 3-pole B32A
  • Integrated Fi 40 40/0.03A 4-pole
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • Weight: 100 kg
  • Rabattgruppe: 12

Outdoor cabinet

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-B/P-D
Description
  • As empty housing
  • Dimensions: 310 x 230 x 1,400 mm (L x W x H)
  • For installation for an on-site backflow loop in DN 50
  • With heated cabinet and thermostat, 230 V, 50 Hz
  • Integrated back-up fuse: 1-pole B16A
  • With mounting plate and safety lock
  • Weight: 13.8 kg
  • Rabattgruppe: 12

Outdoor cabinet

Description
  • Dimensions: 310 x 1460 x 207 mm (H x W x D)
  • With pre-fuse C16 (16 A)
  • With 10 mm² PE-terminals for voltage compensation
  • Flashing light (knock resistant)
  • Closed using safety lock cylinder
  • Weight: 21.1 kg
  • Rabattgruppe: 12

Outdoor cabinet for local pressure pipes an controller

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-DA/P-DAP
Description
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • DN 50 – DN 150
  • With mounting plate incl. base
  • With lamp
  • With CEE32 and work socket with earth contact
  • Integrated back-up fuse: 3-pole B32A
  • Integrated Fi 40 40/0.03A 4-pole
  • With heating and thermostat
  • With security lock
  • Weight: 76 kg
  • Rabattgruppe: 12

Outdoor cabinet for local pressure pipes an controller

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-B/P-D
Description
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • DN 50 – DN 150
  • With mounting plate incl. base
  • With lamp
  • With CEE16 and work socket
  • Integrated back-up fuse: 3-pole C20A
  • Integrated Fi 40 40/0.03A 4-pole
  • With heating and thermostat
  • With security lock
  • Weight: 76 kg
  • Rabattgruppe: 12

In-wall frame

Suitable for
  • Connection box
    • 7601.80.22
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Stainless steel, material grade 304
  • Dimensions (width x height x depth): 421 x 381 x 25 mm
  • Weight: 1 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.24
,
  • LipuLift-P-D/-DA/-DAP
Description
  • From stainless steel, material grade 304
  • "In-wall” version
  • Glass beaded front
  • Dimension W x H x D:
    • 405 x 830 x 30 mm
  • Weight: 2.1 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection and remote control
  • Made from stainless steel, material grade 304
  • Fixing: "On wall"
  • Dimensions (width x height x depth): 500 x 500 x 160 mm
  • Weight: 11.6 kg
  • Rabattgruppe: 11

In-wall frame

Suitable for
  • Connection box
    • 7601.80.20
,
  • LipuLift-P-D/-DA/-DAP
Description
  • Dimensions (width x height x depth): 565 x 565 x 15 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separators
    • LipuMax-P-D/DM/DA
    • LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
    • LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
  • Stach seperators FapuMax-P-DA
  • Oil separators Coalisator-P
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For evacuation connection DN 80
  • Made from stainless steel, material grade 304
  • "On wall" version
  • Door stop
    • Choice of left or right
    • Lockable door
  • Dimensions (width x height x depth): 370 x 330 x 250 mm
  • Weight: 10.4 kg
  • Rabattgruppe: 11

Connection box

Suitable for
  • Grease separator
  • Starch separators
,
  • LipuLift-P-D/-DA/-DAP
Description
  • For disposal connection, pendulum gas line (if necessary) and remote control
  • From stainless steel, material grade 304
  • "Surface mounted” version
  • Glass beaded front
  • Lockable door, left limit stop
  • Dimensions W x H x D: 300 x 725 x 160 mm
  • Weight: 10 kg
  • Rabattgruppe: 11

Cable feedthrough ND 100

Suitable for
  • LipuMax-P-B / D and LipuLift-P/PF-B / D (In conjunction with an ACO grease layer measurement)
  • LipuMax-P/PH-B/D
  • Muli-Flex
Description
  • Material: V4A
  • For simple and fast sealing of up to 5 cables
  • Seal against pressurised water
  • Interchangeable insert 2x5mm, 2x7mm, 2x16mm, 1x12mm, 1x14mm
  • Weight: 1 kg
  • Rabattgruppe: 11

Compression fitting 63 x 75 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extending the pressure line diameter from Ø63 mm to Ø75 mm
  • Weight: 0.8 kg
  • Rabattgruppe: 12

Compression fitting 63 x 90 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extending the pressure line diameter from Ø63 mm to Ø90 mm
  • Weight: 0.7 kg
  • Rabattgruppe: 12

Storz coupling for swinging gas lines

Suitable for
  • For installation in connection box art. no. 7601.80.22
Description
  • Storz coupling 75B
  • For connection of the disposal vehicle pendulum gas line
  • For pipe connection Rp 2 ½" (female thread)
  • Weight: 1.8 kg
  • Rabattgruppe: 11

Extension

Suitable for
  • Disposal shaft
    • Typ 450
Description
  • Made from plastic, material polyethylene
  • For fitting on upstream shaft for deep installations
  • Structure height: 100 – 650 mm
    • (can be reduced to 45 mm by cutting off at cutting marks)
  • Max. two extension can be used
  • Weight: 10.9 kg
  • Rabattgruppe: 11

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 60 mm
  • Without seal
  • Displacement-proof
  • Height
    • 60 mm excluding mortar joints
    • 70 mm including mortar joints
  • Weight: 50 kg
  • Rabattgruppe: 11

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 80 mm
  • Without seal
  • Displacement-proof
  • Height
    • 80 mm excluding mortar joints
    • 90 mm including mortar joints
  • Weight: 60 kg
  • Rabattgruppe: 11

Support ring

Suitable for
  • Grease separator LipuMax-P for underground installation
  • Lipulift-P Serie
  • Starch separator FapuMax-P for underground installation
Description
  • Made from concrete
  • Diameter: 625 mm
  • Thickness: 100 mm
  • Without seal
  • Displacement-proof
  • Height
    • 100 mm excluding mortar joints
    • 110 mm including mortar joints
  • Weight: 70 kg
  • Rabattgruppe: 11

Removal key for covers

Suitable for
  • Covers load class
    • A, B or D
Description
  • Removal key for easier removal of the covers / manhole covers
  • Rabattgruppe: 11

Stepox

Description
  • Weight: 5.9 kg
  • Rabattgruppe: 11

Guide strap

Suitable for
  • Top section
    • 0178.08.35
Description
  • Quantity required
    • 1 pce for Muli-Max Mono
    • 2 pces for Muli-Max Duo
    • 2 pces for LipuLift-P
  • Weight: 1.6 kg
  • Rabattgruppe: 12

Operating Logbook

Suitable for
  • Grease separator
    • For underground installation
    • For free-standing installation
Description
  • Contents: Check-list and standard forms to document in-house monitoring, maintenance and disposal relating to the plant as required by DIN 4040-100
  • Format: A4 with double filing rings
  • Size: 60 pages
  • Laid out to cover 5 years
  • Weight: 0.3 kg
  • Rabattgruppe: 11
