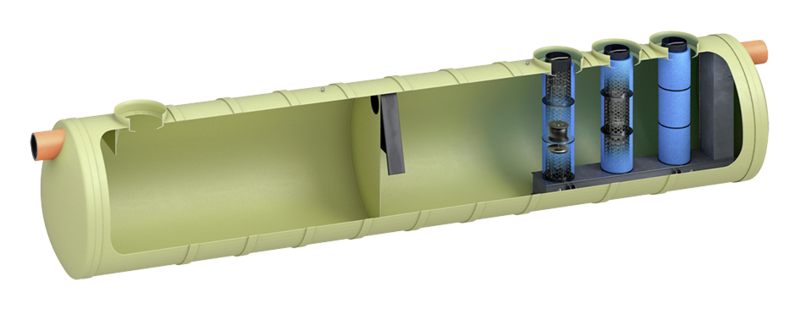

Oleopator G-H NS100+
Product benefits
- All nominal sizes extrapolated from tested products which are tested by independent test institute (LGA) - test report
- New coalescence basket designed for DN 600 covers.
- Coalescence baskets - easy to clean from the ground surface.
- Integrated sludge trap
- Coalescence PU foam split into three segments - easy maintenance and service
- Optimum accessibility guaranteed for maintenance, cleaning and disposal thanks to removable cage component
- Coalescence insert and float can be removed for cleaning without having to empty the separator
- Integrated sludge trap (except NS300)
- Sampling system can be integrated
- Alarm device - optional accessories
- Service access between sludge trap and oil separator
Product information
- Complies with standards EN 858 class I - nominal size is extrapolated from the tested oleopators
- Horizontal tank made of glass reinforced plastic - no heavy machinery required, resistant material
- With coalescence insert (filter) - assembly of multiple coalescence baskets
- Inner parts made of PEHD
- Suitable top sections DN600
- Pipe connection using suitable push sockets or pipe connectors (no welded sockets)

Top section for PE or GRP shafts (600)

Top section for PE or GRP shafts

Top sections for sampling units

Sampling units
ACO Belt 75 SS
ACO Belt 120 SS
Alarm device (OB)
Alarm device (O)
Alarm device (B)
Alarm device (OB) + casing
