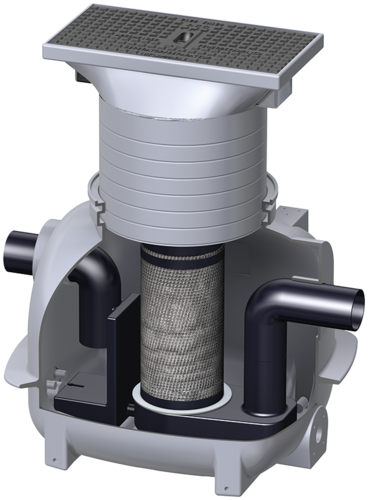

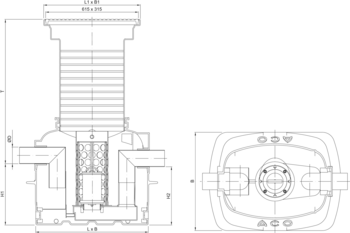

Light-Oil separator Coalisator-P
Product benefits
- Optional direct suction for retrofitting
- Critical inlet and outlet parts made of non-combustible material according to German Standard DIN 1999-100
- Can be combined with the separately available sludge trap with 150 or 300 litre volumes
Product information
- Light liquid separator Class I made of polyethylene
- According to EN 858 and German Standard DIN 1999-100
- With automatic closing
- Float made of plastic
- Tared for light liquid with a density up to 0.90 g/cm³
- With supporting cage and coalescence insert with wire mesh
- All parts removable
- With height-adjustable top section
- Can be shortened every 45 mm
- Cover
- Made of cast iron
- Load class: B 125
- Inlet and outlet fittings made of polyethylene
Securat idSet 34 alarm system
Cable set 20m
Adapter kit
Connection box
Suitable for
- Grease separators
- LipuMax-P-D/DM/DA
- LipuJet-P-OD/RD/SD/OM/OMP/RM/RMP
- LipuJet-S-OD/RD/SD/OM/OMP/RM/RMP
- Stach seperators FapuMax-P-DA
- Oil separators Coalisator-P
- LipuLift-P-D/-DA/-DAP
Description
- For evacuation connection DN 80
- Made from stainless steel, material grade 304
- "On wall" version
- Door stop
- Choice of left or right
- Lockable door
- Dimensions (width x height x depth): 370 x 330 x 250 mm
- Weight: 10.4 kg
- Rabattgruppe: 11
In-wall frame

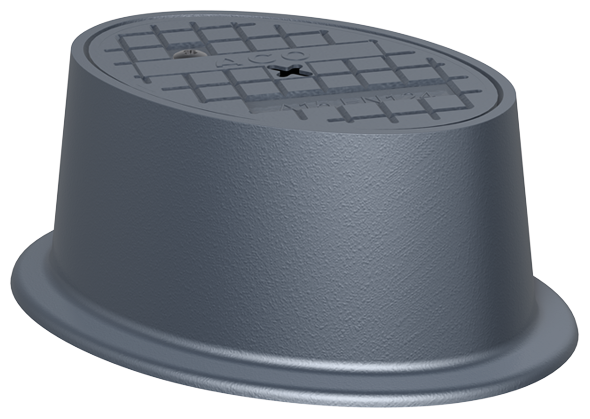

Road cap
Suitable for
- Grease separator for underground installation
- LipuMax-P-D
- LipuMax-P-DM
- LipuMax-P-DA
- Stach separators FapuMax-P-DA for underground installation
- Oil separators Coalisator-P
Description
- Shaft cover tested to DIN EN 124/DIN 1229
- Load class: A 15
- Frame and cover made of cast iron
- Diameter: 300 mm
- Clear width: 250 mm
- Weight: 9.8 kg
- Rabattgruppe: 1
Sampling shaft DN 100
