Waste water lifting plant Muli Pro-PE K duo

Product benefits

  • Large usable tank volume
  • Various inlet heights
  • High level of operational safety thanks to pilot tube and air bubble injection
  • Suitable for wastewater containing grease
  • Can be extended in parallel lengths
  • Energy-saving channel impeller
  • Designed to fit through narrow doorways: 780 mm

Product information

  • Areas of application
    • Apartment buildings
    • Small business premises with a high level of wastewater
    • Downstream of grease separators up to NS 20
    • Where there are long discharge pressure lines with a large difference in height
  • Polyethylene tank
  • With drain plug
  • With connection for hand membrane pump 1½"
  • With fixing kit for operationally secure attachment
  • With 4 horizontal intake nozzles DN 150
  • With 1 vertical intake nozzle DN 150/200
  • With 1 service opening, clear width: 250 mm
  • With ventilation sockets DN 100 to connect to plastic tube
  • Connection pressure line
    • With 2 special backflow stops DN 80 (DN 100 on Muli Pro-PE K‑75 duo) with venting device
    • With Y-branch
    • With special mounting adapter DN 100 for connection of 108 – 114.3 mm pipe external diameter pressure line
  • 2 pump motors
    • Three phase motor 400 V, 50 Hz
    • IP 68 protection
    • With axle and rotating mechanical seal
    • With channel impeller
  • Pneumatic level switching with pilot tube and pneumatic control line
  • Mini compressor for air bubble injection
  • Switch and alarm device
    • IP 54 protection
    • With 1.5 m cable and EEC plug
    • With volt free centralised fault and operational warnings
    • Incl. 10 m cable between lift and switch box.

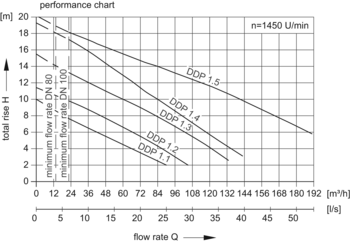

Infobox

Note: The max. temperature must only be attained briefly.

TypeDelivery headDelivery flow Q with overall delivery head HMedia temperature
4 m6 m8 m10 m12 m14 m16 m18 mNormalMaximum
[m][l/s][l/s][l/s][l/s][l/s][l/s][l/s][l/s][°C][°C]
Muli Pro-PE K‑15 duo3 – 818.311.75.84060
Muli Pro-PE K‑22 duo3 – 1024.218.512.55.34060
Muli Pro-PE K‑30 duo4 – 1433.528.423.116.810.34.24060
Muli Pro-PE K‑55 duo4 – 1737.332.728.123.118.814.19.44060
Muli Pro-PE K‑75 duo6 – 1851.846.239.231.723.214.26.84060

Stop valve DN 100

Suitable for
  • Wastewater lifting plant
Description
  • Made of cast iron
  • For pressure line
  • Length: 190 mm
  • Weight: 34.3 kg

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart
  • Muli-Max with signalling unit
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg

Flashing light


Message system with GSM module

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli lifting plants
  • Muli-Max
  • Sinkamat-Z (underfloor) duo
  • Grease separators
  • Measuring device for grease layers
  • Wet refuse collection systems
  • Technical processing systems
Description
  • Does not require mains power
  • Visible and audible alarms
  • 6 digital & 2 analogue freely configurable inputs
  • 1 alarm output 12V
  • Incl. GSM- aerial (2,5m wire)
  • Relaying alarms to mobile phones by SMS
  • For mounting outside the ex-area
  • Housing: 155x180 x103 mm
  • Slot for standard SIM-card
  • Protection level: IP54 (with fitted IP44 antenna socket)
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Sinkamat-S
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 150 mA
  • 172x70x78mm (LxWxD)
  • Degree of protection: IP33
  • Noise level: 92 dB(A)
  • Weight: 0.2 kg

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart
  • Muli-Max with signalling unit
Description
  • 230V AC
  • Power consumption: 15mA
  • 172x70x78mm (LxBxT)
  • Protection: IP33
  • 92 dB(A)
  • Weight: 0.3 kg

Stop valve DN 80

Suitable for
  • Wastewater lifting plant
Description
  • Made of cast iron
  • For pressure line
  • Length: 180 mm
  • Weight: 24 kg

Sealing ring

Suitable for
  • LipuSmart-P
  • Powerlift installation kit DN 100
  • Fäkablock II
  • All Muli wastewater lifting plants
Description
  • As additional component for pressure line DN 80
  • Weight: 0.3 kg

Securing piece ND 80

Suitable for
  • Stop valve
    • 0159.09.89
Description

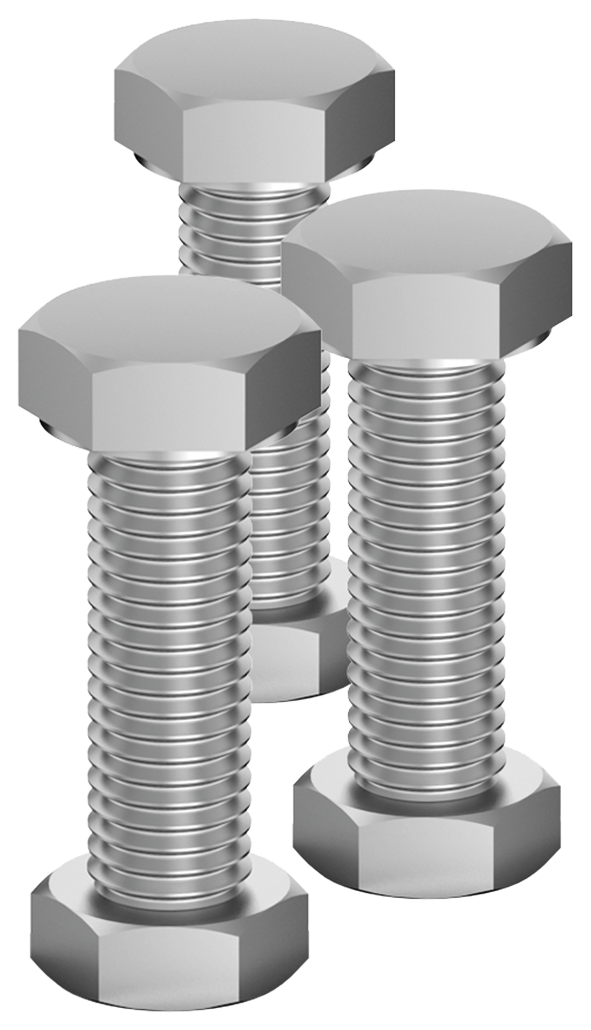

  • 8 screws and nuts
  • 1 seal
  • Weight: 1.3 kg

Securing piece ND 100

Suitable for
  • Stop valve
    • 0159.09.90
Description
  • 8 screws and nuts
  • 1 seal
  • Weight: 1.3 kg

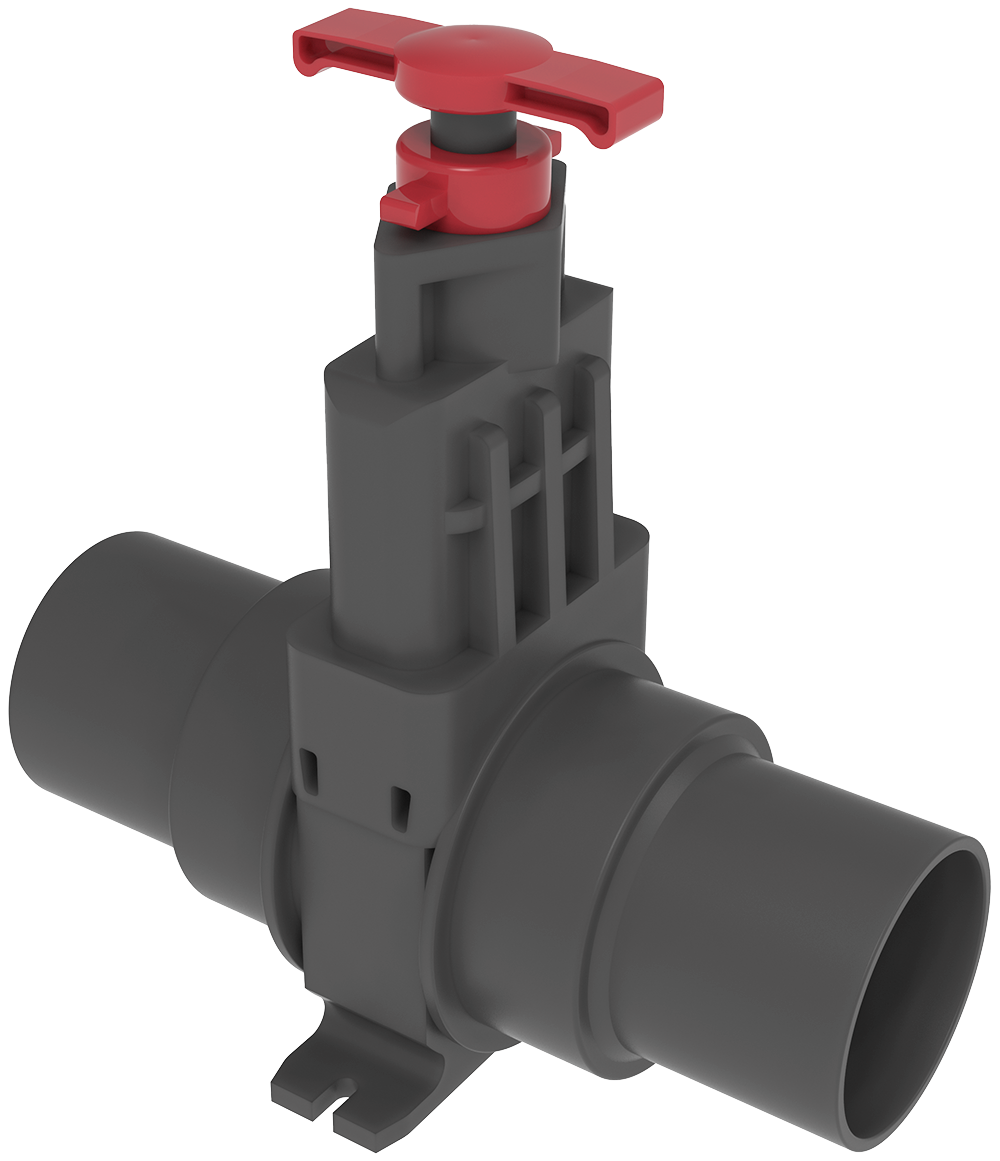

Inlet valve DN 100

Suitable for
  • Grease separator made of polyethylene
  • Starch separator made of polyethylene
  • Upstream tank systems type 2 and 4
  • LipuMobil – type 0.5
Description
  • Made out of PVC
  • Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
  • Total dimensions: 176 x 360 mm (L x H)
  • Weight: 5.9 kg

Inlet valve DN 100

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Typ 2 and 4
  • LipuMobil-P – Type 0.5
Description
  • Made of PVC
  • 110 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 176 x 330 mm (L x H)
  • Weight: 3.1 kg

Inlet valve DN 150

Suitable for
  • Grease separator made of polyethylene
  • Starch separator made of polyethylene
  • Upstream tank systems type 7 to 10
Description
  • Made out of PVC
  • Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
  • Total dimensions: 226 x 420 mm (L x H)
  • Weight: 10.2 kg

Inlet valve DN 150

Suitable for
  • Wastewater lifting plant
  • Polyethylene grease separator
  • Polyethylene starch separator
  • Upstream tank plant
    • Type 7 – Type 10
Description
  • Made of PVC
  • 160 mm push socket on both sides with rim sealing ring
  • Overall dimensions: 226 x 510 mm (L x H)
  • Weight: 7 kg

Hand membrane pump 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For fixing to wall
  • Incl. hose
    • Clear width: 48 x 80 mm
  • Incl, hose clamp
    • Clear width: 50 x 70 mm
    • Width: 12 mm
    • 2 pces required
  • Weight: 14.4 kg

Three way valve 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For hand membrane pump
  • Weight: 3.3 kg

Stop valve 1½"

Suitable for
  • Wastewater lifting plant
Description
  • For hand membrane pump
  • Weight: 1 kg
