Building Drainage

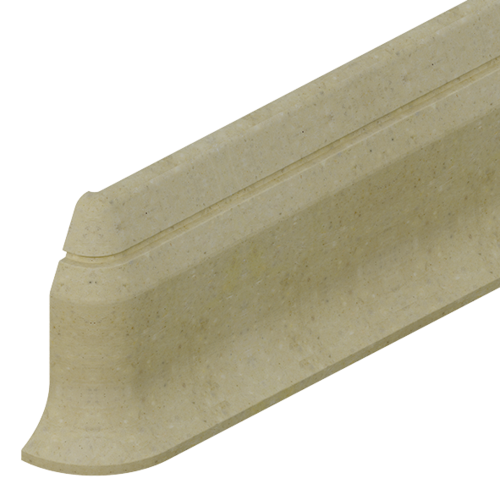

ACO kerb PB - standard

Product benefits

  • Protects walls from impacts caused by machinery
  • Eliminates water ingress into the wall and leakage into other processing areas
  • Curved design prevents accumulation of soils and allows easy cleaning
  • Rounded corners for easy cleaning
  • Suitable for any processing area

Product information

  • Made from polymer concrete composite
  • Recommended for new or refurbishment projects including resin floor finish
  • Covered in resinous floor finish after installation
  • 200 mm height for rooms with traffic up to 1 ton (recommended by EHEDG)
  • 300 mm height for rooms with traffic up to 5 tons (recommended by EHEDG)
LengthWidthHeightItem

number
DownloadsRemember
[mm][mm][mm]
Straight100065200445566
85300446154
Inside corner8585200445565
105105300446155
Outside corner – left56565200445563
58585300446156
Outside corner – right56565200445564
58585300446157

NM2920 - PU sealant Merbenit SF50

Suitable for
  • ACO kerb PB standard
  • ACO kerb PB plain
Description

Polyurethan sealant Merbenit SF50

446419

Suitable for

ACO kerb PB standard 200

Description

ACO kerb trowel flat H200

446421

Suitable for

ACO kerb PB standard 300

Description

ACO kerb trowel flat H300

446420 - ACO kerb trowel rounded

Suitable for

ACO kerb PB standard

Description

ACO kerb trowel rounded
