Complete gullies single unit/socket inclination: 90° – DN 100 | gravity drainage

Product benefits

  • With sealing membrane inserted on site
  • Unit checked for leaks

Product information

  • Flat roof gullies tested to DIN EN 1253
  • Made from stainless steel, material grade 304
  • Building material class A1
  • With functional element
  • Insulation
    • Uninsulated
    • Insulated with Styrofoam with/out heating
    • Insulated with stone wool with/out heating
  • Sarnafil TG 66-15
    • For loose placement
    • For planted, gravelled roofs with foot and vehicle traffic
    • For roofs with additional loads
  • Sikaplan 15 G
    • For loose placement with mechanical fixing
    • For roofs without additional loads
  • With clamping flange for sealing with a sealing membrane
  • Usable for one sealing plane
  • Socket inclination: 90°

Infobox

Note: Delivery time for works pre-assembled Sarnafil membrane TG 66-15 and Sikaplan 15 G depends on the version: from inventory, or up to max. 14 days

Note: Delivery time for works pre-assembled membranes from other manufacturers: on request.

Note: For gullies without membranes the additional seals must be ordered separately.

Nominal width: DN 100

Socket

diameter
InsulationRecessSealing membraneWeightItem

number
Remember
[mm][mm][kg]
Image103Uninsulated120 x 260No sealing membrane4.91219.10.60
Image103Uninsulated, heated120 x 260No sealing membrane5.11219.10.90
Image103Styrofoam230 x 360No sealing membrane4.91219.15.60
Image103Styrofoam, heated230 x 360No sealing membrane5.11219.15.90
Image103Stone wool230 x 360No sealing membrane4.91219.17.60
Image103Stone wool, heated230 x 360No sealing membrane5.11219.17.90
Nominal widthSocket

diameter
Gravel trap basketInsulationRecessSealing membraneWeightItem

number
ImageDN 100103 mmmade of stainless steelUninsulated120 x 260 mmNo sealing membrane4.9 kg1219.10.60
ImageDN 100103 mmmade of stainless steelUninsulated, heated120 x 260 mmNo sealing membrane5.1 kg1219.10.90
ImageDN 100103 mmmade of stainless steelStyrofoam230 x 360 mmNo sealing membrane4.9 kg1219.15.60
ImageDN 100103 mmmade of stainless steelStyrofoam, heated230 x 360 mmNo sealing membrane5.1 kg1219.15.90
ImageDN 100103 mmmade of stainless steelStone wool230 x 360 mmNo sealing membrane4.9 kg1219.17.60
ImageDN 100103 mmmade of stainless steelStone wool, heated230 x 360 mmNo sealing membrane5.1 kg1219.17.90

Control shaft

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Stainless steel, material grade 304
  • Load class: K 3
  • Weight: 5.34 kg
  • Weight: 5.3 kg

Insulating body

Suitable for
  • Spin stainless steel flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 1.3 kg

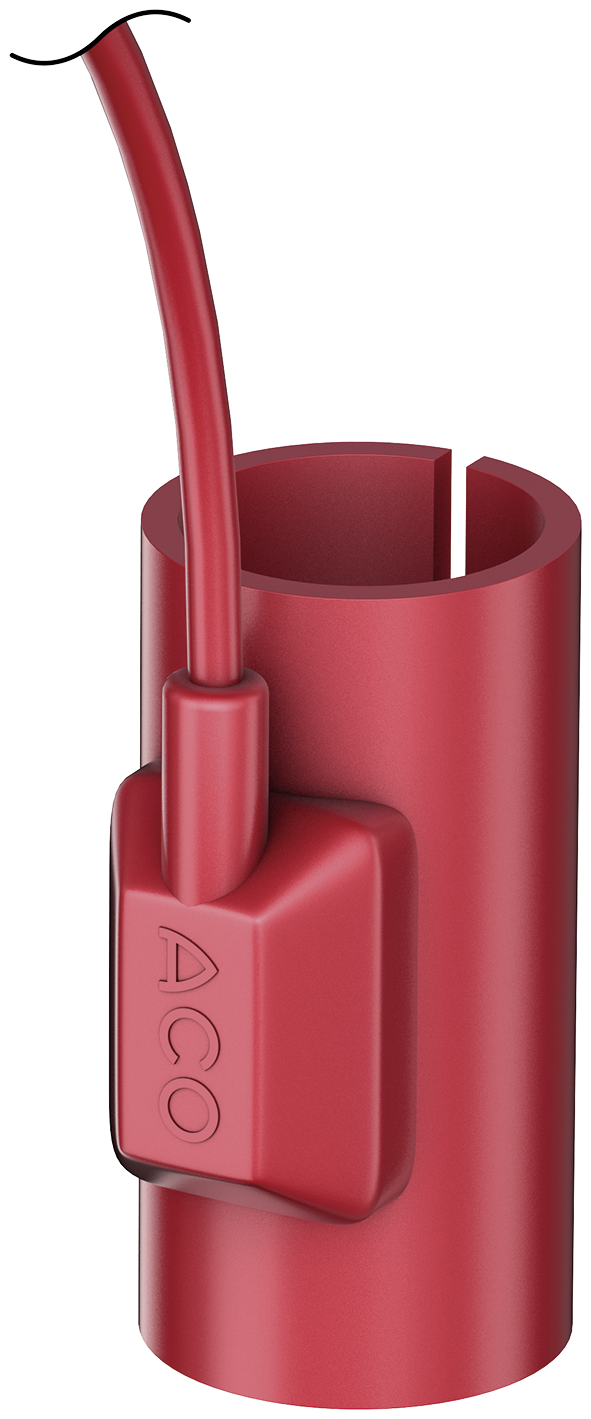

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Airlock made of plastic

Suitable for
  • Jet flat roof gullies
  • DN 100
Description
  • Weight: 0.9 kg

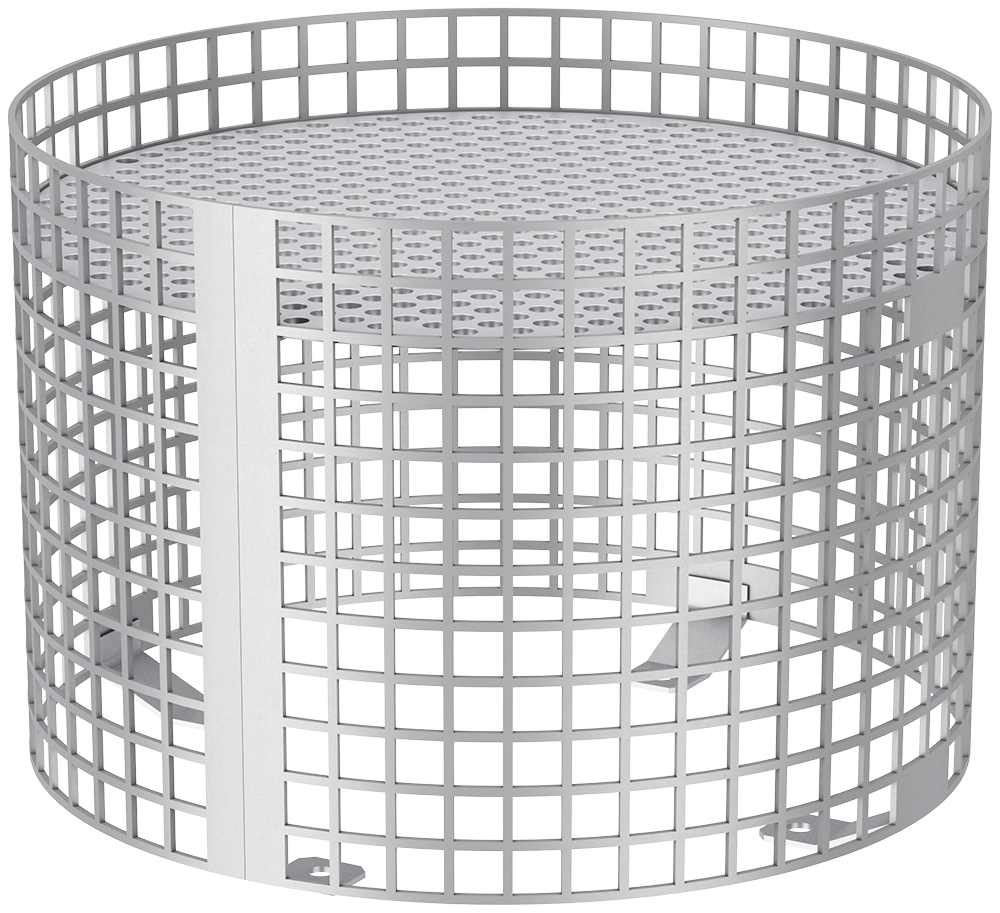

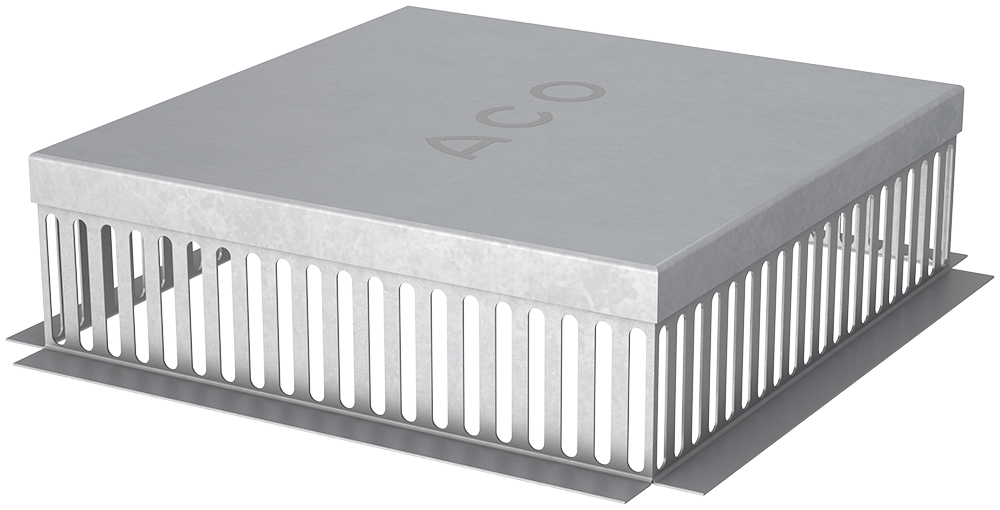

Gravel trap for inverted roof

Description
  • Stainless steel, material grade 304
  • Load class: H 1.5
  • Weight: 0.63 kg
  • Weight: 1.5 kg

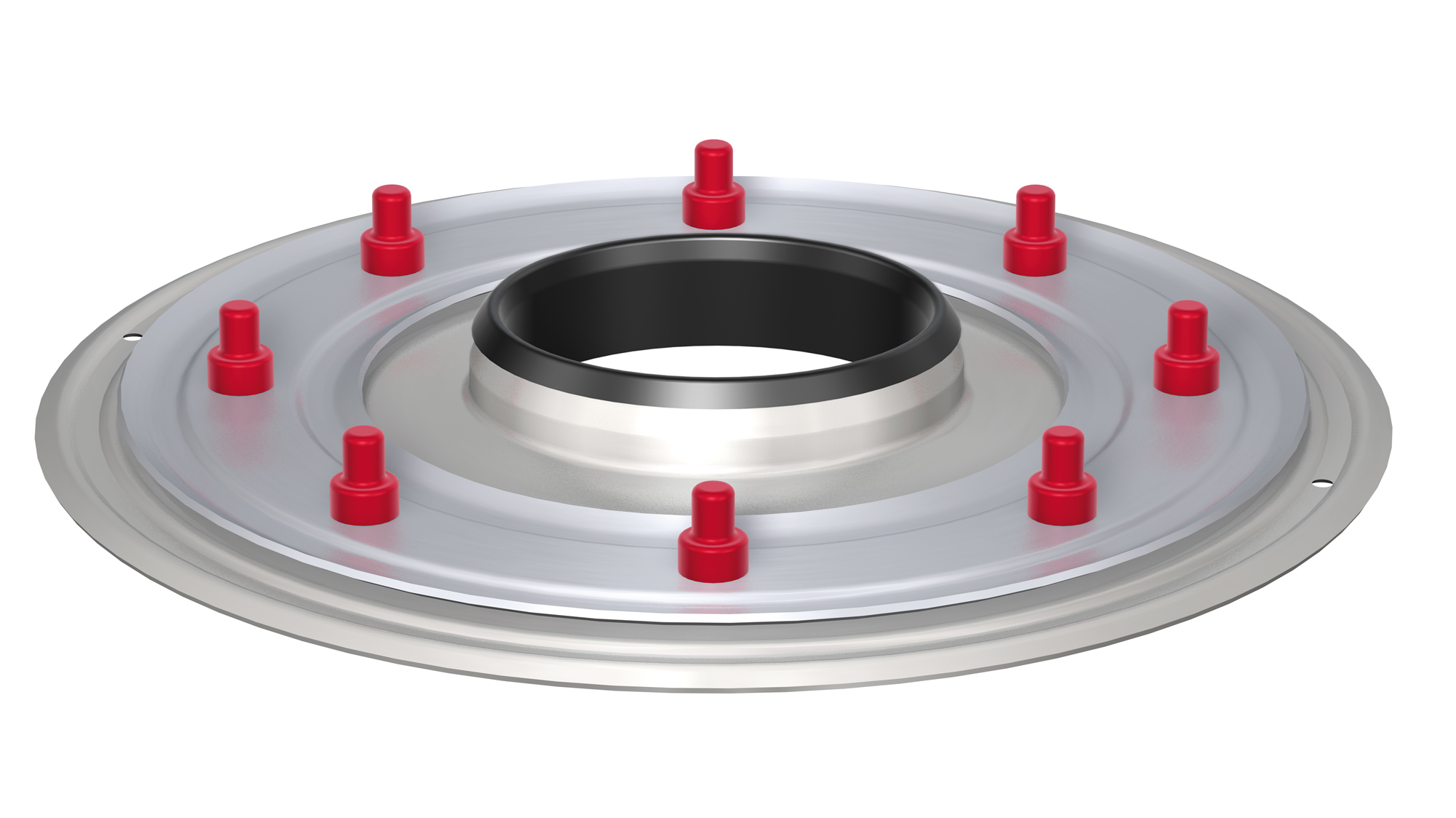

Sliding flange

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • DN 70
    • Socket inclination: 90°
Description
  • Stainless steel, material grade 304
  • Weight: 2.3 kg
  • For unheated version
  • Weight: 2.2 kg

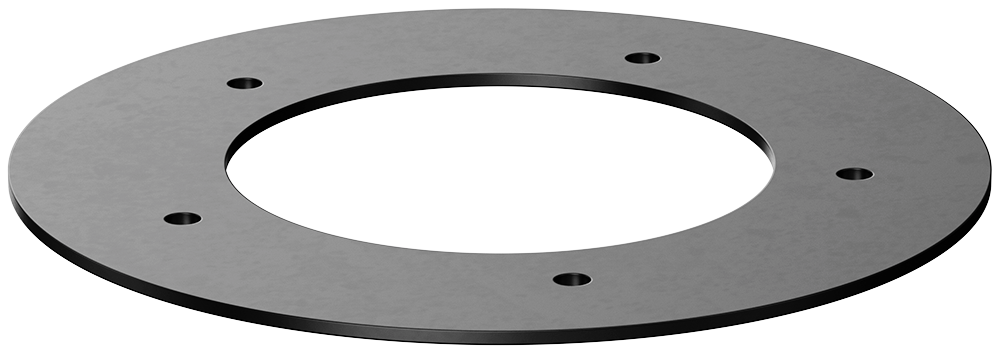

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • Weight: 0.3 kg
  • EPDM
  • Weight: 0.2 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • Weight: 0.3 kg
  • PVC-weich
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • Weight: 0.3 kg
  • NBR/SBR
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Made of EPDM
  • For box channels
  • Thickness: 5 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • For inlet-/pipe sockets
  • Made from Styrofoam, PS 30
  • Conforms to DIN 18164
  • Weight: 0.09 kg
  • Weight: 0.1 kg

Insulation

Suitable for
  • Inlet funnel
Description
  • Made from Styrofoam, PS 30
  • Conforms to DIN 18164
  • Weight: 0.04 kg
  • Weight: 0.1 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 70
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 0.6 kg
  • Weight: 0.8 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 0.6 kg
  • Weight: 0.7 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 70
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.2 kg
  • Weight: 0.2 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 100
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.2 kg
  • Weight: 0.2 kg

Damming ring

Suitable for
  • Jet stainless steel flat roof gullies
    • Socket inclination: 90°
Description
  • Stainless steel, material grade 304
  • Weight: 1.1 kg
  • Weight: 1 kg

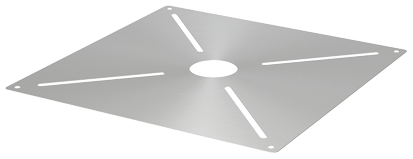

Holder sheet for trapezoidal panel roof

Suitable for
  • Jet flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
  • Spin flat roof gullies
    • DN 70 – DN 125
    • Socket inclination: 90°
  • Emergency gully Turboflow
    • DN 50/DN 70
Description
  • Made from galvanised steel sheet
  • Thickness: 1.5 mm
  • Weight: 3.14 kg
  • Weight: 3.6 kg

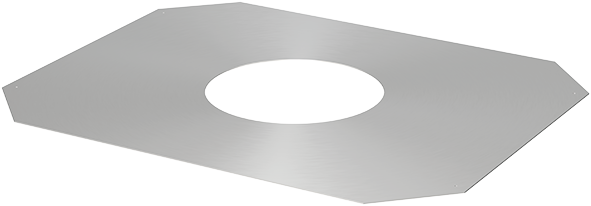

Heat shield

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • DN 70
Description
  • Made of stainless steel
  • With M 8 dowels and 16 x M 8 hexagonal screws
  • Weight: 2.7 kg

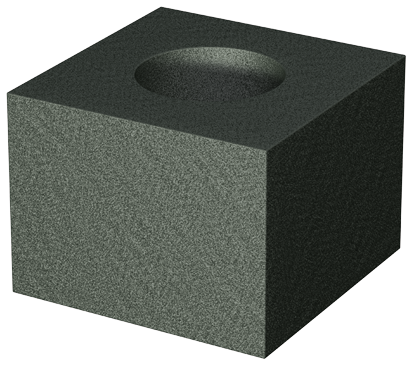

Insulating body

Suitable for
  • Jet stainless steel flat roof gullies
    • Lower section: DN 70
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 0.8 kg

Insulating body

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 1.3 kg

Insulating body

Suitable for
  • Attika roof gullies Spin DN 70
  • Jet flat roof gullies
    • Socket inclination 1.5°
    • DN 40 – DN 70
Description
  • Made from cellular glass
  • Height: 120 mm
  • Weight: 2 kg

Insulation casing

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from cellular glass
  • Height: 150 mm
  • To equalise length
  • Weight: 0.3 kg

Insulation casing

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • DN 100
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 150 mm
  • To equalise length
  • Weight: 0.7 kg

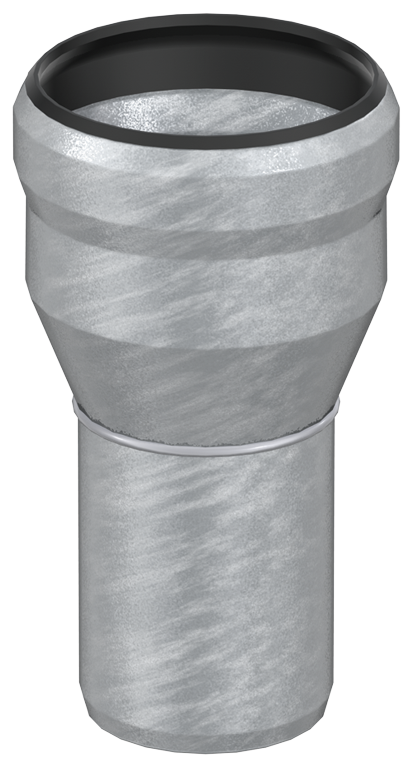

Optimisation element

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from galvanised steel
  • Weight: 0.5 kg
  • Reduction from DN 70 to DN 40
  • Length: 95 mm
  • Made from galvanised steel
  • Weight: 0.5 kg
  • Made of galvanised steel
  • Weight: 0.4 kg

Optimisation element

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from galvanised steel
  • Weight: 0.5 kg
  • Reduction from DN 70 to DN 50
  • Length: 105 mm
  • Weight: 0.4 kg

Optimisation element

Suitable for
  • Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
  • Multiflex flat roof ducts
    • DN 100
Description
  • Made from galvanised steel
  • Weight: 0.9 kg
  • Reduction from DN 100 to DN 70
  • Length (l): 130 mm
  • Weight: 0.8 kg

Optimisation element

Suitable for
  • Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
  • Multiflex flat roof ducts
    • DN 100
Description
  • Made from galvanised steel
  • Weight: 0.9 kg
  • Reduction from DN 100 to DN 80
  • Length (l): 120 mm
  • Weight: 0.9 kg
