Complete gullies single unit/socket inclination: 90° – DN 70 | gravity drainage

Product benefits

  • With sealing membrane inserted on site
  • Unit checked for leaks

Product information

  • Flat roof gullies tested to DIN EN 1253
  • Made from stainless steel, material grade 304
  • Building material class A1
  • Airlock with fire protection insert
  • Insulation
    • Uninsulated with/out heating
  • Sarnafil TG 66-15
    • For loose placement
    • For planted, gravelled roofs with foot and vehicle traffic
    • For roofs with additional loads
  • Sikaplan 15 G
    • For loose placement with mechanical fixing
    • Up to a roof gradient of maximum 20°
    • For roofs without additional loads
  • With clamping flange for sealing with a sealing membrane
  • Usable for one sealing plane
  • Socket inclination: 90°

Fire protection

Fire resistance class R 30 – R 120 tested as per Gen. Build. Sup.: Z-19.17-1872

Infobox

Note: Delivery time for works pre-assembled Sarnafil membrane TG 66-15 and Sikaplan 15 G depends on the version: from inventory, or up to max. 14 days

Note: Delivery time for works pre-assembled membranes from other manufacturers: on request.

Note: For gullies without membranes the additional seals must be ordered separately.

Control shaft

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Stainless steel, material grade 304
  • Load class: K 3
  • Weight: 5.3 kg

Insulating body

Suitable for
  • Spin stainless steel flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 1.3 kg

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Gravel trap for inverted roof

Description
  • Stainless steel, material grade 304
  • Load class: H 1.5
  • Weight: 1.5 kg

Sliding flange

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • DN 70
    • Socket inclination: 90°
Description
  • Stainless steel, material grade 304
  • For unheated version
  • Weight: 2.2 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.2 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • Soft PVC
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • DN 50/DN 70
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.3 kg

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Made of EPDM
  • For box channels
  • Thickness: 5 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • For inlet-/pipe sockets
  • Made from Styrofoam, PS 30
  • Conforms to DIN 18164
  • Weight: 0.1 kg

Insulation

Suitable for
  • Inlet funnel
Description
  • Made from Styrofoam, PS 30
  • Conforms to DIN 18164
  • Weight: 0.1 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 70
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 0.8 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
Description
  • For inlet-/pipe sockets
  • Made of stone wool, building materials class A1
  • Weight: 0.7 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 70
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.2 kg

Insulation

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • Socket inclination: 90°
  • DN 100
Description
  • Made from styrofoam
  • Height: 250 mm
  • Length x width: 205 x 205 mm
  • Weight: 0.2 kg

Damming ring

Suitable for
  • Jet stainless steel flat roof gullies
    • Socket inclination: 90°
Description
  • Stainless steel, material grade 304
  • Weight: 1 kg

Holder sheet for trapezoidal panel roof

Suitable for
  • Jet flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
  • Spin flat roof gullies
    • DN 70 – DN 125
    • Socket inclination: 90°
  • Emergency gully Turboflow
    • DN 50/DN 70
Description
  • Made from galvanised steel sheet
  • Thickness: 1.5 mm
  • Weight: 3.6 kg

Gravel trap with airlock

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • DN 70
Description
  • Version with fire protection mastic
  • With Gen. Build. Sup. Appr.: Z‑19.17‑1872
  • Weight: 0.7 kg

Heat shield

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • DN 70
Description
  • Made of stainless steel
  • With M 8 dowels and 16 x M 8 hexagonal screws
  • Weight: 2.7 kg

Insulating body

Suitable for
  • Jet stainless steel flat roof gullies
    • Lower section: DN 70
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 0.8 kg

Insulating body

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from cellular glass
  • Height: 100 mm
  • Weight: 1.3 kg

Insulating body

Suitable for
  • Attika roof gullies Spin DN 70
  • Jet flat roof gullies
    • Socket inclination 1.5°
    • DN 40 – DN 70
Description
  • Made from cellular glass
  • Height: 120 mm
  • Weight: 2 kg

Insulation casing

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from cellular glass
  • Height: 150 mm
  • To equalise length
  • Weight: 0.3 kg

Insulation casing

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
    • DN 100
    • Socket inclination: 90°
Description
  • Made from cellular glass
  • Height: 150 mm
  • To equalise length
  • Weight: 0.7 kg

Optimisation element

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from galvanised steel
  • Made of galvanised steel
  • Made from galvanised steel
  • Reduction from DN 70 to DN 40
  • Length: 95 mm
  • Weight: 0.4 kg

Optimisation element

Suitable for
  • Spin/Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 70
Description
  • Made from galvanised steel
  • Reduction from DN 70 to DN 50
  • Length: 105 mm
  • Weight: 0.4 kg

Optimisation element

Suitable for
  • Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
  • Multiflex flat roof ducts
    • DN 100
Description
  • Made from galvanised steel
  • Reduction from DN 100 to DN 70
  • Length (l): 130 mm
  • Weight: 0.8 kg

Optimisation element

Suitable for
  • Jet stainless steel flat roof gullies
    • Socket inclination: 90°
    • DN 100
  • Multiflex flat roof ducts
    • DN 100
Description
  • Made from galvanised steel
  • Reduction from DN 100 to DN 80
  • Length (l): 120 mm
  • Weight: 0.9 kg

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Profiline
Description
  • Height: 50 mm
  • Dimensions: 400 x 400 mm
  • Galvanised steel

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Profiline
Description
  • Height: 50 mm
  • Dimensions: 400 x 400 mm
  • Stainless steel, material grade 304

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat gullies
  • Profiline
Description
  • Adjustable height: 78 – 108 mm
  • Dimensions: 400 x 400 mm
  • Galvanised steel

Profiline gully top

Suitable for
  • Jet/Spin series stainless steel flat gullies
  • Profiline
Description
  • Adjustable height: 78 – 108 mm
  • Dimensions: 400 x 400 mm
  • Stainless steel, material grade 304

Mesh grating

Suitable for
  • Profiline gully top
    • 38150
    • 38801
Description
  • Galvanised steel
  • Mesh width: 30 x 10 mm
  • Not screwed

Mesh grating

Suitable for
  • Profiline gully top
    • 38150
    • 38801
Description
  • Galvanised steel
  • Mesh width: 30 x 14 mm
  • Not screwed

Mesh grating

Suitable for
  • Profiline gully top
    • 38156
    • 38803
Description
  • Stainless steel, material grade 304
    • Etched
  • Mesh width: 30 x 10 mm
  • Not screwed

Mesh grating

Suitable for
  • Profiline gully top
    • 38156
    • 38803
Description
  • Stainless steel, material grade 304
    • Etched
  • Mesh width: 30 x 14 mm
  • Not screwed

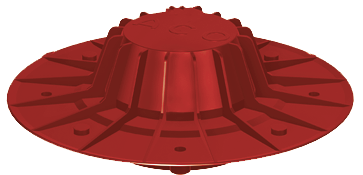

Airlock made of plastic

Suitable for
  • Jet flat roof gullies
    • DN 100
Description
  • Plastic airlock and strainer cap made of stainless steel, material grade 304
  • Suitable for Jet DN 100 flat roof gullies
  • Height: 86 mm
  • Weight: 0.9 kg
