Gully body Passavant Jet, DN 80 | gravity drainage

Product information

  • Gully bodies DN 80
  • Painted cast iron (transport protection)
  • Building material class A1
  • Tested to DIN EN 1253
  • With clamping flange
  • With seepage openings
  • With functional element

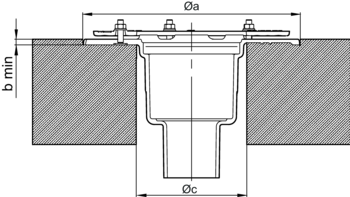

Nominal widthøaøbøcDescriptionItem
number
[mm][mm][mm]
DN 8038010220For gully bodies without insulation bodies7038.10.12
DN 8038040220For gully bodies with insulation bodies7038.10.12

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Jet made of stainless steel
    • DN 50 – DN 70
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg

Insulationbody upper part

Suitable for
  • Top part made of cast iron
    • DN 125/DN 150
    • Socket inclination: 90°
Description
  • Made of PUR
  • Weight: 1.9 kg

Insulating body for gully

Description
  • Made of PUR
  • Weight: 0.5 kg

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Grating with frame
    • 7000.28.02
    • 7000.41.02
    • 7000.42.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 25 – 40 mm
  • Weight: 1.4 kg

Adjustable height

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Grating with frame
    • 7000.28.02
    • 7000.41.02
    • 7000.42.02
Description
  • Made of cast iron, with paint finish
  • Load class: M 125
  • Height-adjustability: 45 – 60 mm
  • Weight: 2.1 kg

Gravel trap

Suitable for
  • Jet flat roof gullies
    • DN 80
  • Spin flat roof gullies
    • DN 100 – DN 150
Description
  • Made of stainless steel
  • With 2 fixing screws
  • Load class: H 1.5
  • Weight: 1.2 kg

Levelling height

Suitable for
  • Gravel trap
    • 7000.12.00
    • 7000.02.00
Description
  • Made of stainless steel
  • With 2 fixing screws
  • Height: 65 mm
  • Only possible in combination with gravel trap
  • Weight: 0.3 kg

Pilot tube

Description
  • Weight: 1 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.6 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • Soft PVC
  • Weight: 0.4 kg

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 125/DN 150
  • Flat roof gullies Spin made of cast iron
    • DN 100 – DN 150
  • Flat roof gullies Jet made of cast iron
    • DN 80
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg

Lip seal ring

Suitable for
  • Oberteil zu Flachdachabläufe Passavant Spin aus Gusseisen
    • DN 125/DN 150
  • Oberteil zu Flachdachabläufe Passavant Jet aus Gusseisen
    • DN 80
  • Staurohr für Notüberlauf
Description
  • Diameter: 186 mm
