Gully body Passavant Jet, DN 80 | gravity drainage
Product information
- Gully bodies DN 80
- Painted cast iron (transport protection)
- Building material class A1
- Tested to DIN EN 1253
- With clamping flange
- With seepage openings
- With functional element
| Nominal width | øa | øb | øc | Description | Item number |
|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | |||
| DN 80 | 380 | 10 | 220 | For gully bodies without insulation bodies | 7038.10.12 |
| DN 80 | 380 | 40 | 220 | For gully bodies with insulation bodies | 7038.10.12 |
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg

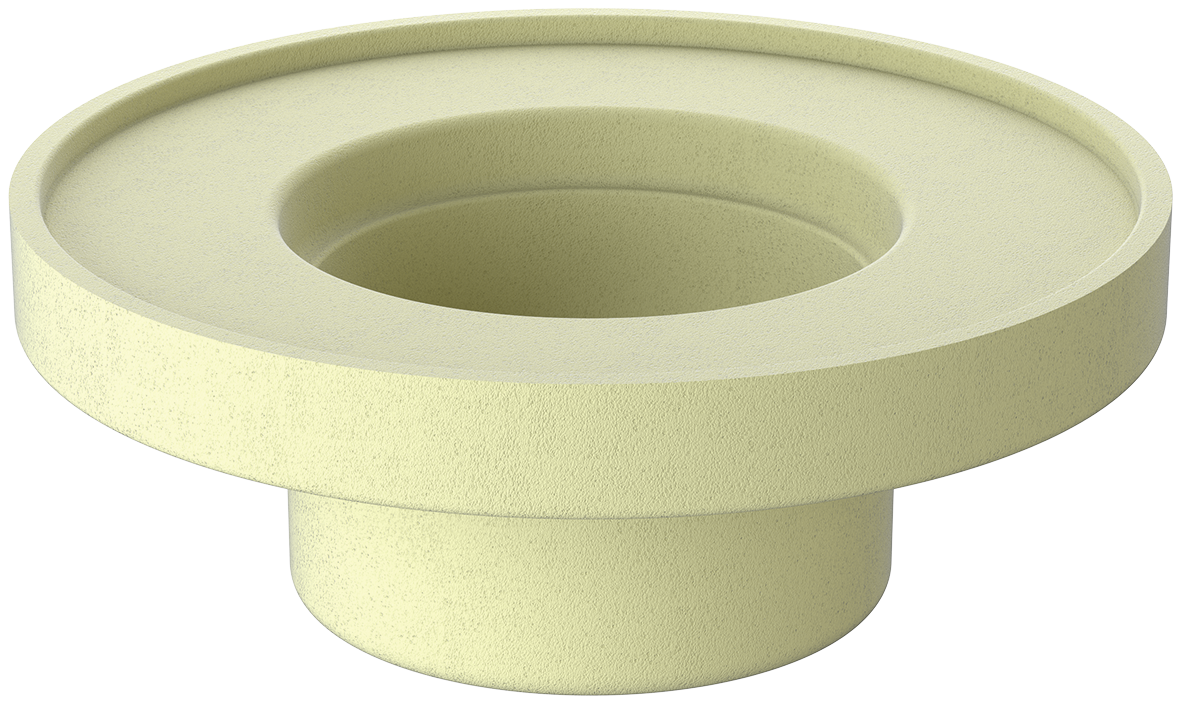

Insulationbody upper part
Suitable for
- Top part made of cast iron
- DN 125/DN 150
- Socket inclination: 90°
Description
- Made of PUR
- Weight: 1.9 kg

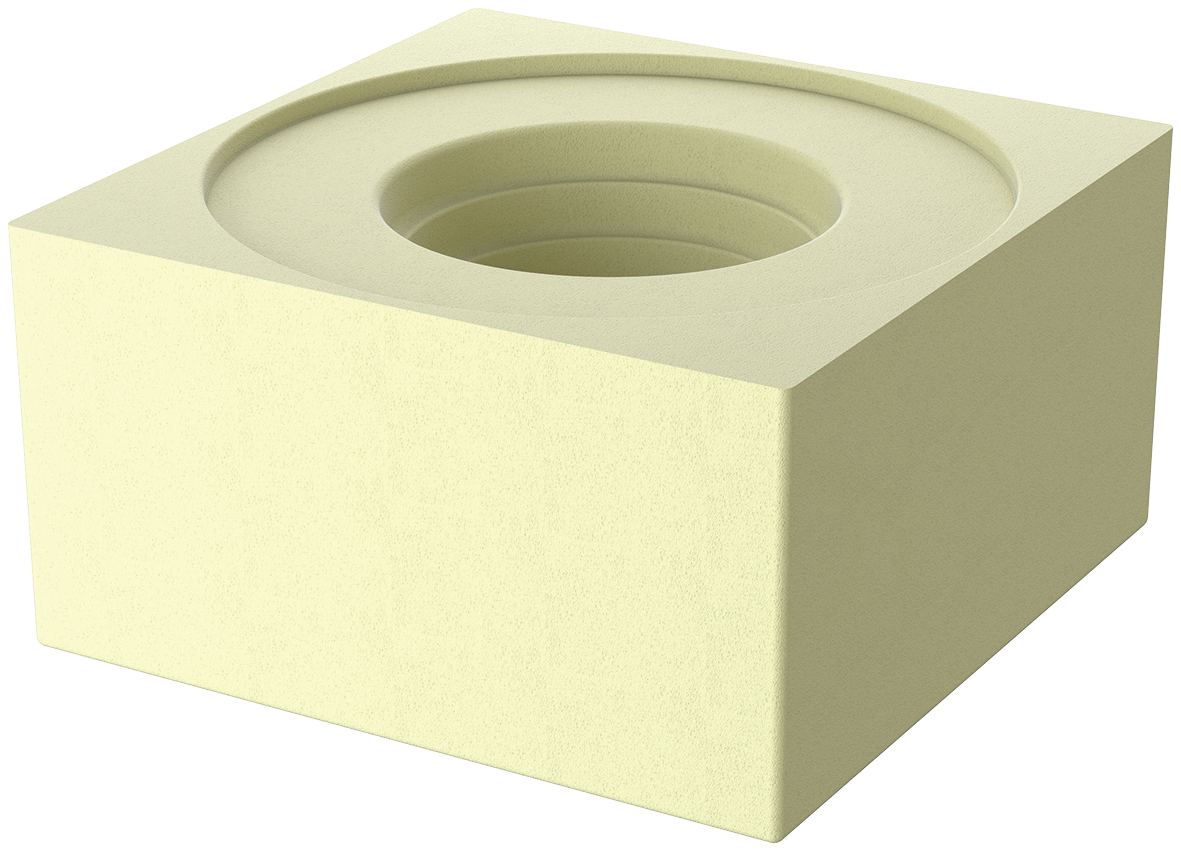

Insulating body for gully
Description
- Made of PUR
- Weight: 0.5 kg

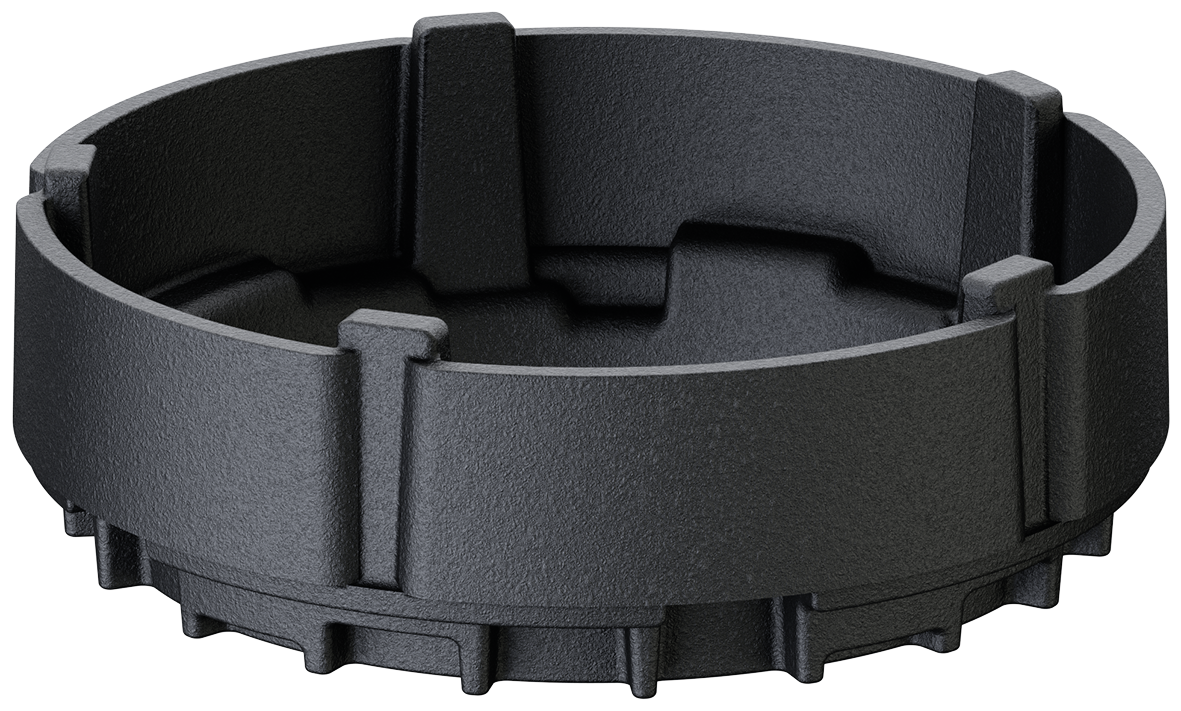

Adjustable height
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Grating with frame
- 7000.28.02
- 7000.41.02
- 7000.42.02
Description
- Made of cast iron, with paint finish
- Load class: M 125
- Height-adjustability: 25 – 40 mm
- Weight: 1.4 kg

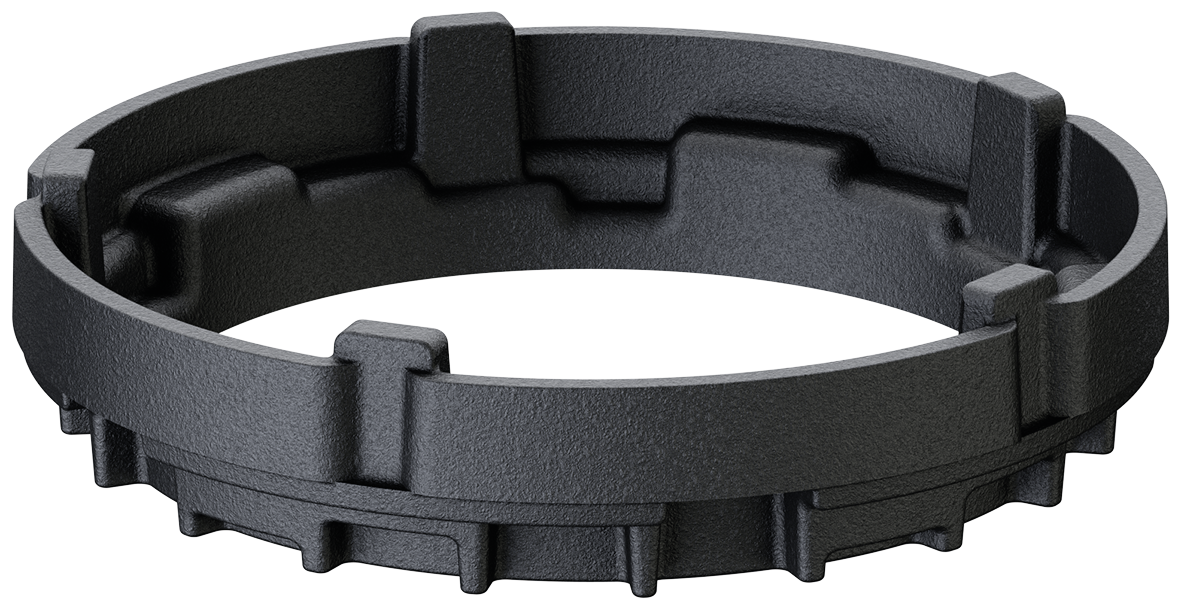

Adjustable height
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Grating with frame
- 7000.28.02
- 7000.41.02
- 7000.42.02
Description
- Made of cast iron, with paint finish
- Load class: M 125
- Height-adjustability: 45 – 60 mm
- Weight: 2.1 kg

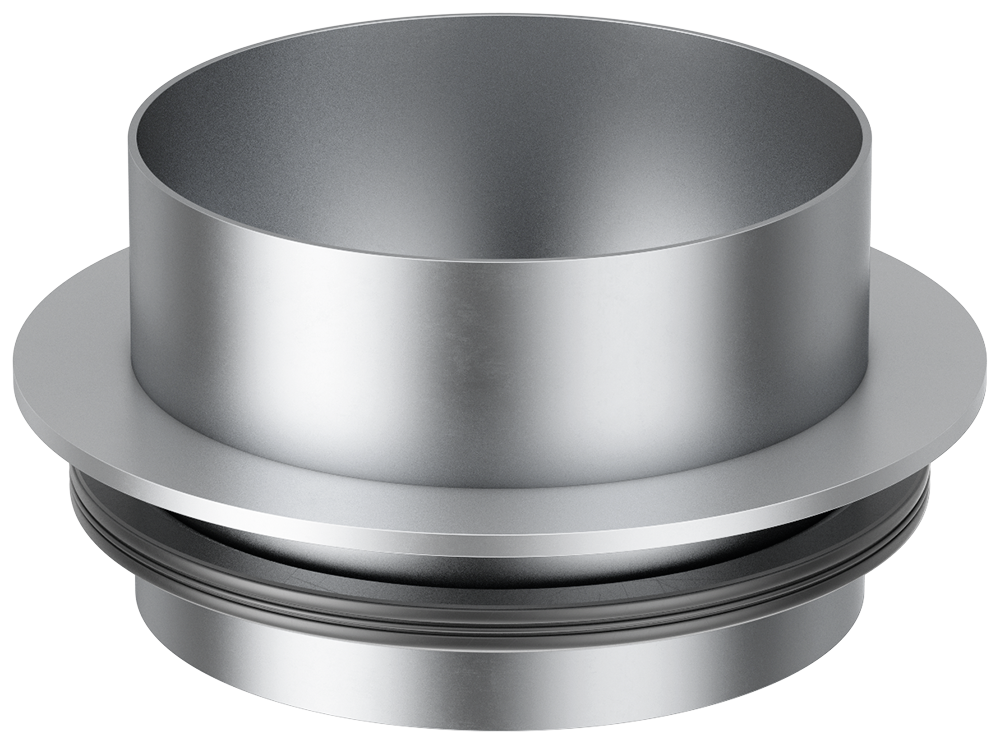

Levelling height
Suitable for
- Gravel trap
- 7000.12.00
- 7000.02.00
Description
- Made of stainless steel
- With 2 fixing screws
- Height: 65 mm
- Only possible in combination with gravel trap
- Weight: 0.5 kg
- Weight: 0.3 kg
Pilot tube
Description
- Weight: 1 kg

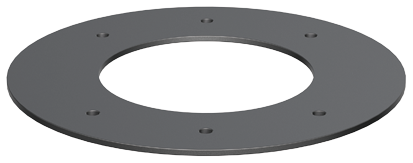

Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Flat roof gullies Spin made of cast iron
- DN 100 – DN 150
- Flat roof gullies Jet made of cast iron
- DN 80
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- EPDM
- Weight: 0.6 kg
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Flat roof gullies Spin made of cast iron
- DN 100 – DN 150
- Flat roof gullies Jet made of cast iron
- DN 80
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- PVC-weich
- Weight: 0.4 kg
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Flat roof gullies Spin made of cast iron
- DN 100 – DN 150
- Flat roof gullies Jet made of cast iron
- DN 80
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- NBR/SBR
- Weight: 0.5 kg
Lip seal ring
Suitable for
- Oberteil zu Flachdachabläufe Passavant Spin aus Gusseisen
- DN 125/DN 150
- Oberteil zu Flachdachabläufe Passavant Jet aus Gusseisen
- DN 80
- Staurohr für Notüberlauf
- Finor 2-teilig aus Gusseisen
Description
- Diameter: 186 mm
