Top sections for gully bodies Variant-Flex

Contact
Downloads
DescriptionWeightItem

number		Remember
[kg]

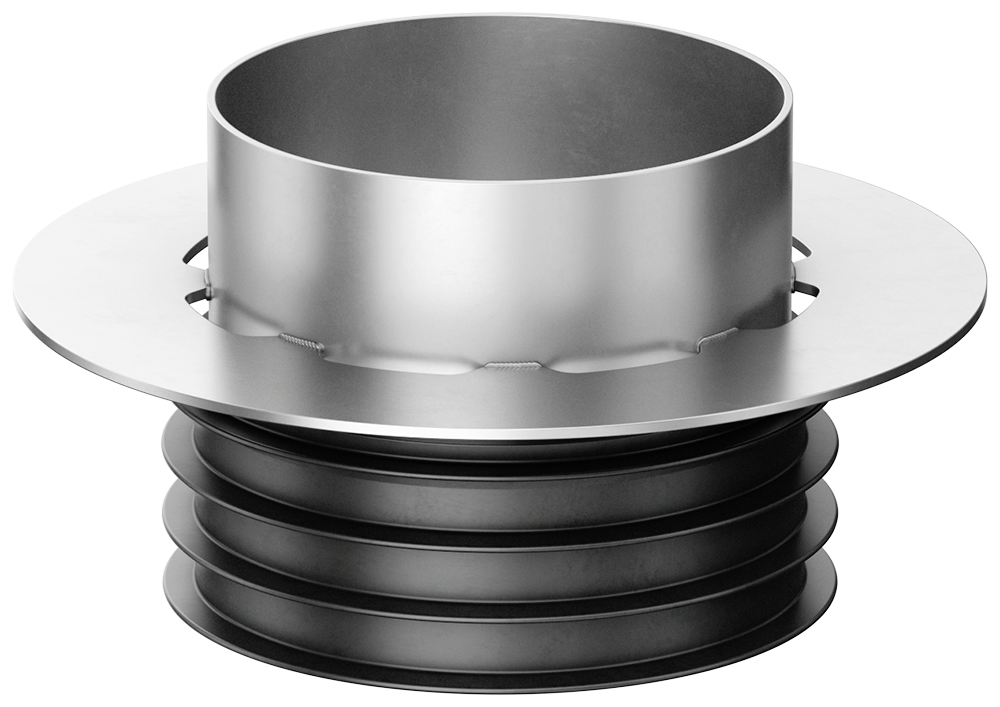

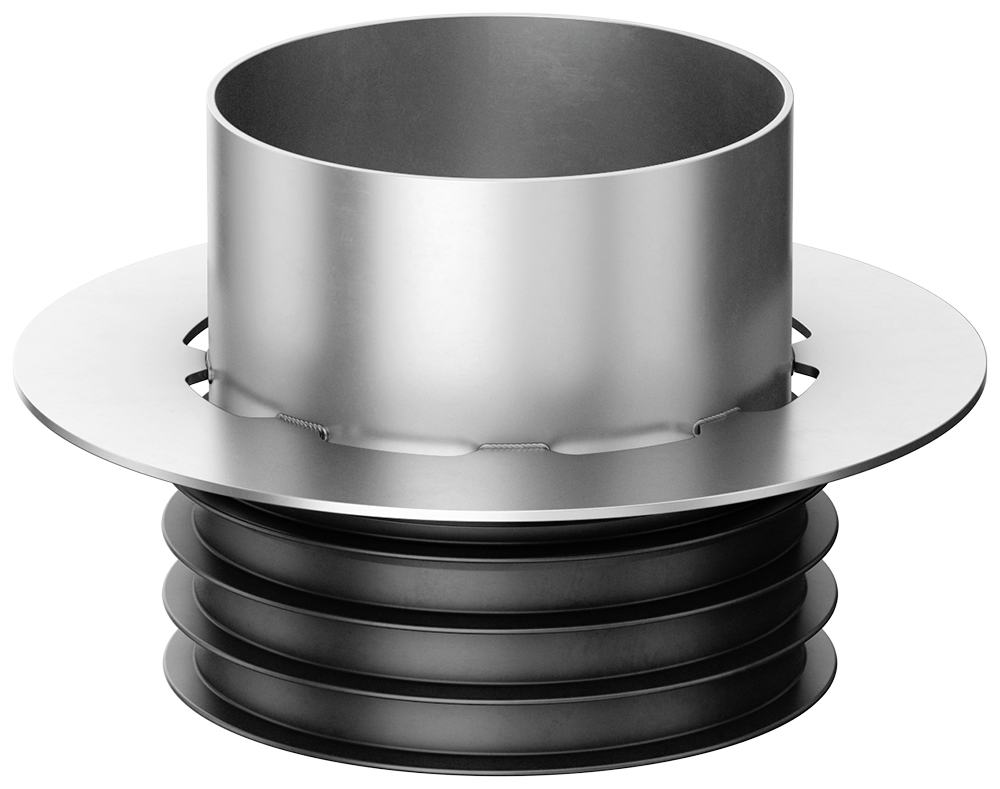

ImageUpper part with clamping flange4.11593.90.00

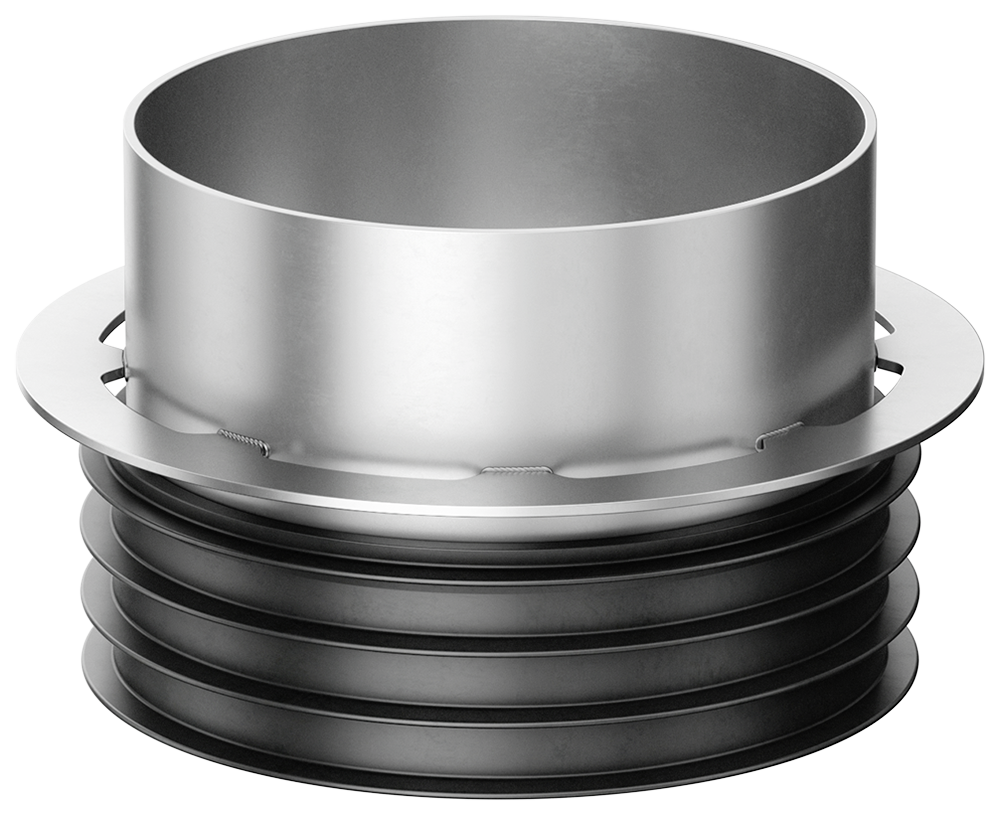

ImageUpper part with clamping flange5.11573.90.00
DescriptionWeightItem

number
ImageUpper part with clamping flange4.1 kg1593.90.00
ImageUpper part with clamping flange5.1 kg1573.90.00

Control shaft

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Stainless steel, material grade 304
  • Load class: K 3
  • Weight: 5.34 kg
  • Weight: 5.3 kg
Item no.
0153.73.05

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg
Item no.
5169.20.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg
Item no.
5169.30.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg
Item no.
5169.40.26

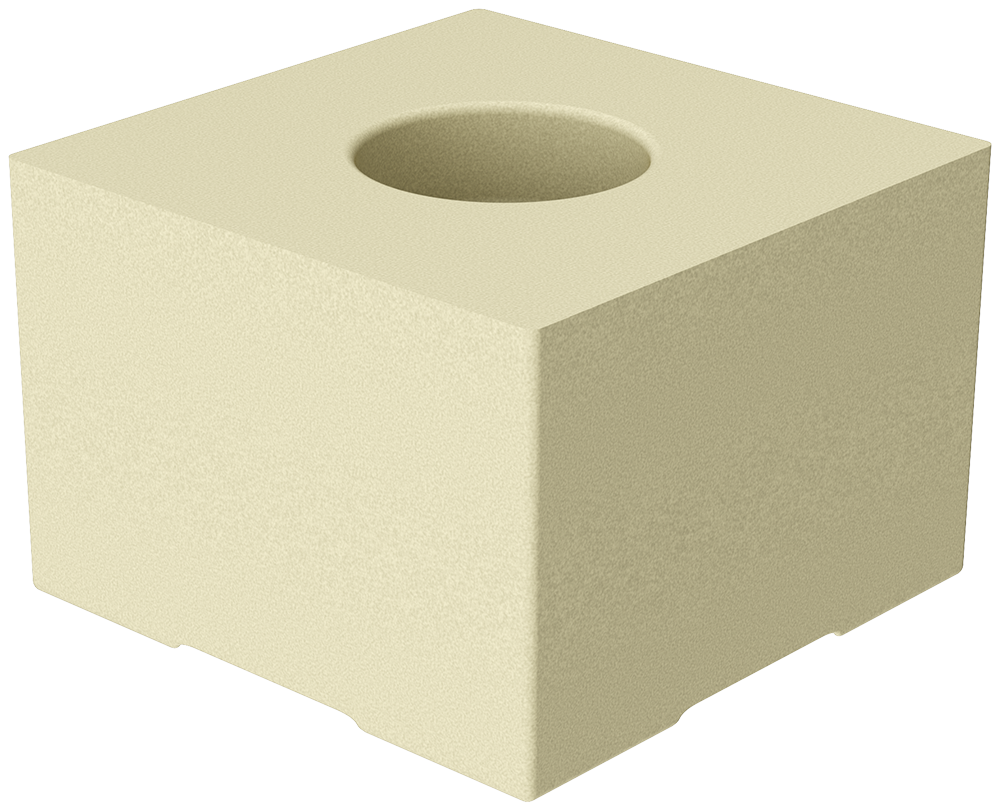

Insulating body

Description
  • Weight: 0.7 kg
Item no.
1590.91.00

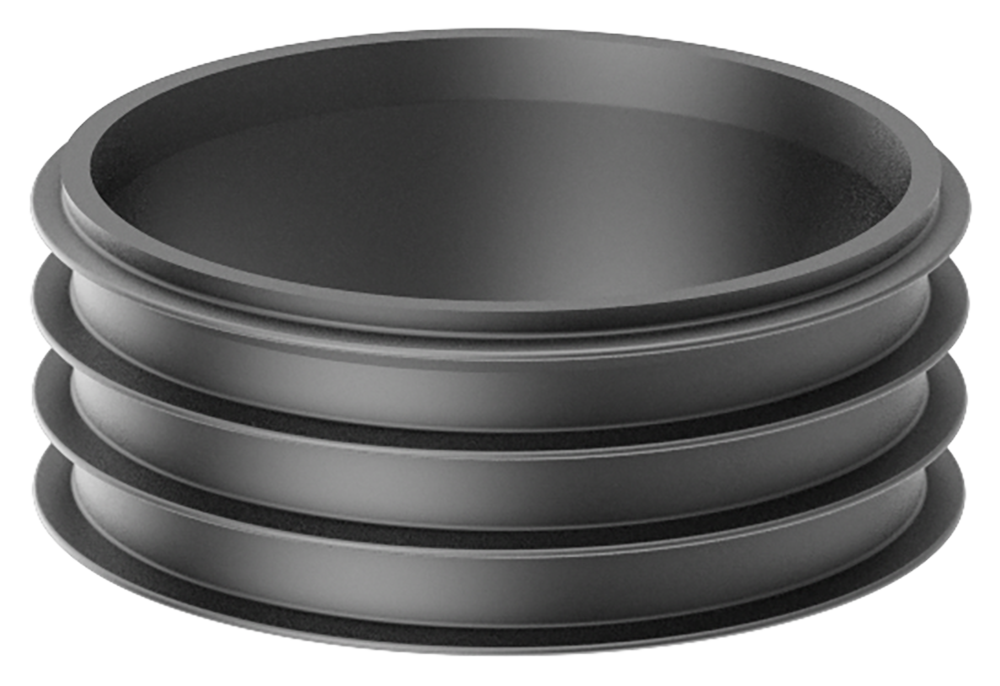

Lip seal ring

Description
  • Weight: 0.1 kg
Item no.
1590.00.60

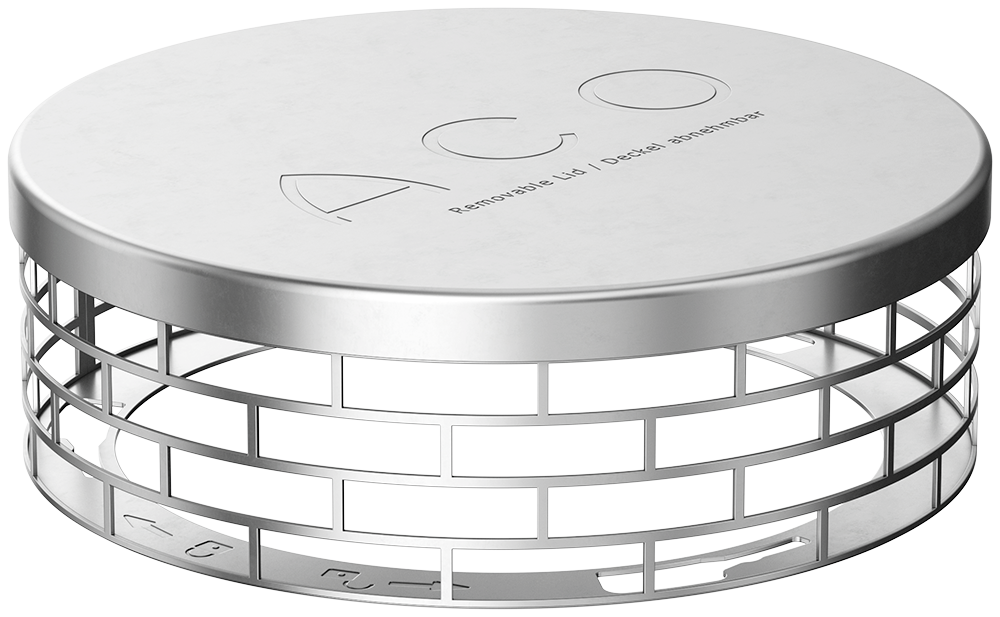

Gravel trap

Item no.
1500.00.10

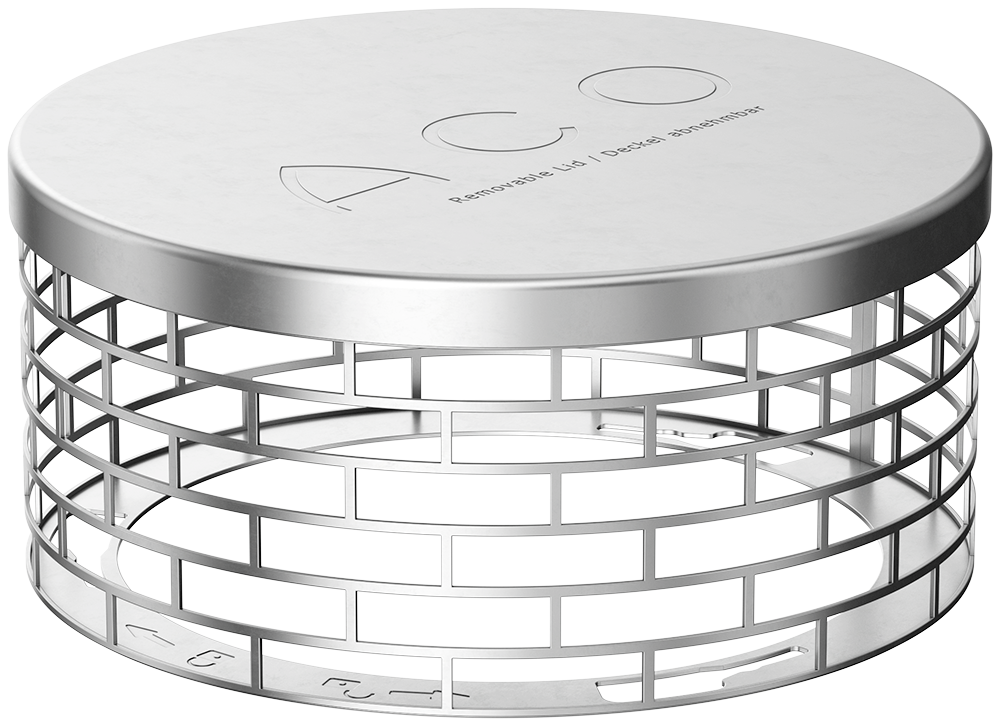

Gravel trap

Item no.
1590.00.30

Pilot tube for emergency overflow

Description
  • Weight: 0.6 kg
Item no.
1590.00.01

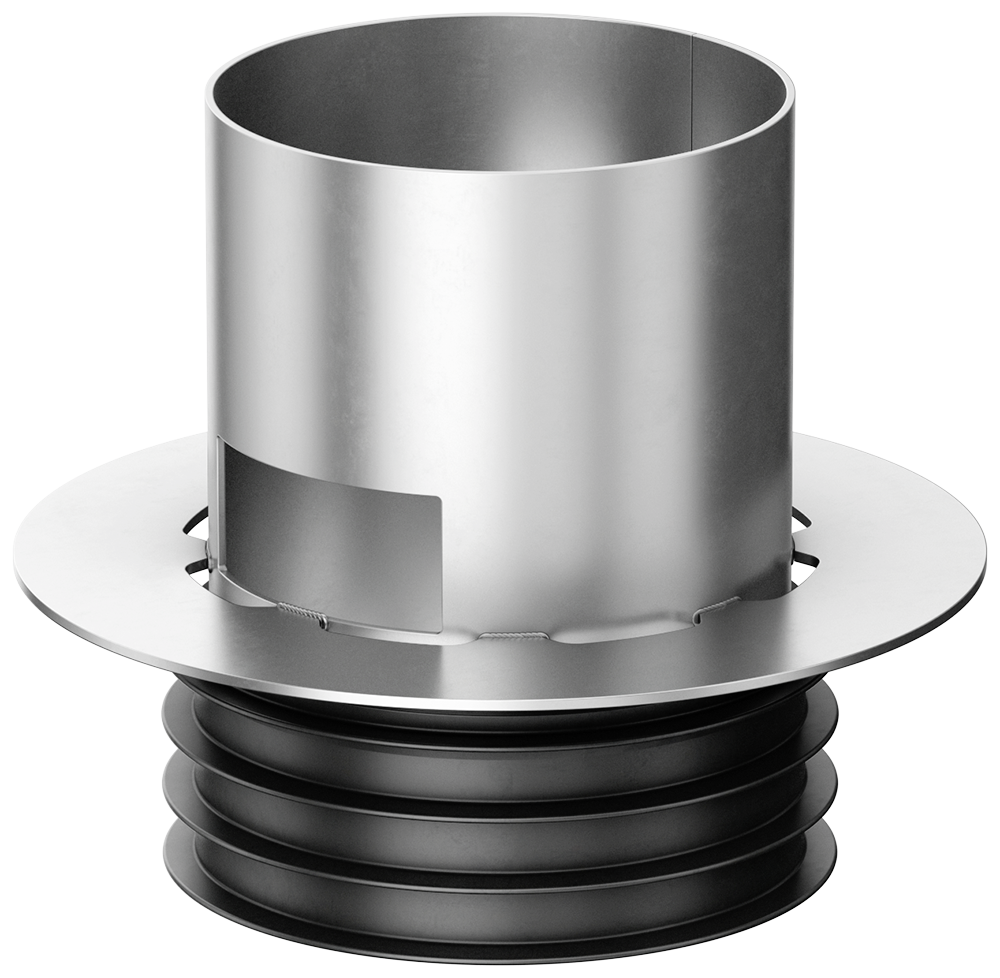

Retention top section

Item no.
1590.00.05

Retention top section

Item no.
1590.00.07

Retention top section

Item no.
1590.00.08

Retention top section

Item no.
1590.00.09

Pilot tube for emergency overflow

Item no.
1590.00.03

Airlock made of plastic

Item no.
1590.00.50

Insulating body

Description
  • Weight: 0.8 kg
Item no.
1510.94.00

Insulating body

Description
  • Weight: 1.2 kg
Item no.
1530.94.00

Insulating body

Description
  • Weight: 1 kg
Item no.
1550.94.00

Insulating body

Description
  • Für Ablauftopf mit Rohrstutzen
  • DN 125, Länge: 330 mm
  • Aus Steinwolle
  • Alukaschiert
  • Nicht brennbar
  • Weight: 1.1 kg
Item no.
1570.94.00

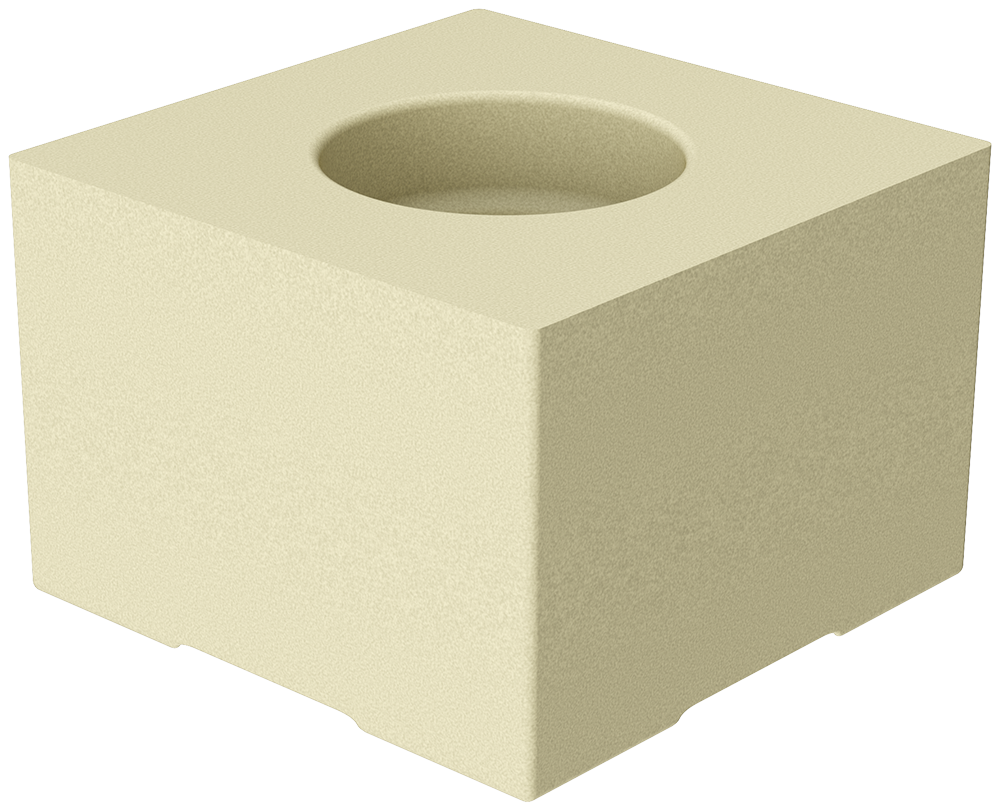

Insulating body

Description
  • Weight: 0.6 kg
Item no.
1570.91.00

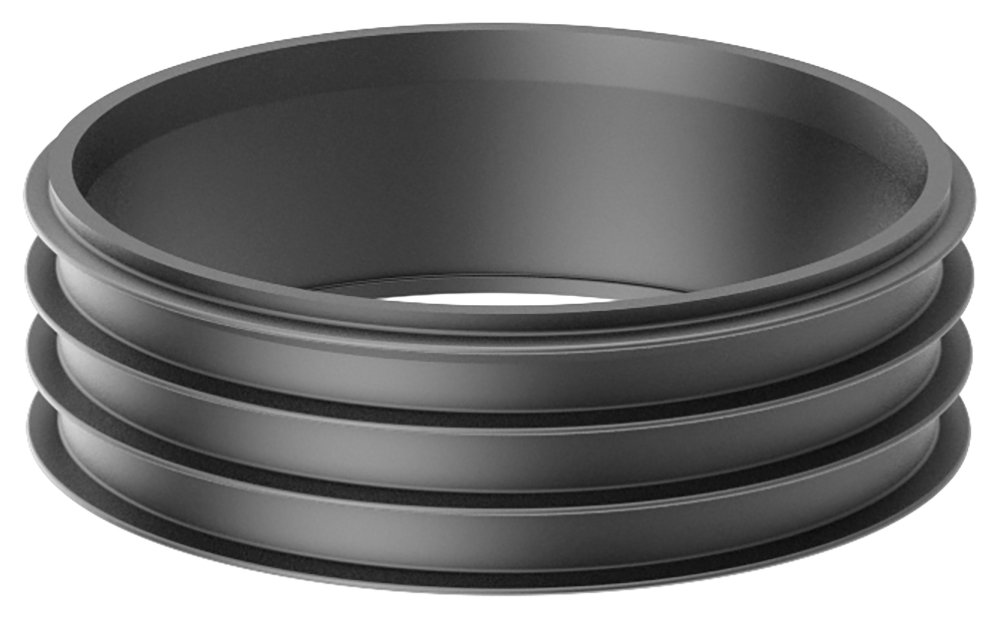

Lip seal ring

Description
  • Weight: 0.1 kg
Item no.
1570.00.60

Pilot tube for emergency overflow

Description
  • Weight: 0.8 kg
Item no.
1570.00.02
