Roof drainage

Contact
Downloads

Socket inclination: 90°

Nominal widthRecessWeightItem

number		Remember
[mm][kg]
ImageDN 50260 x 1903.61511.90.00
ImageDN 70260 x 1903.71531.90.00
ImageDN 100260 x 1904.11551.90.00
ImageDN 125290 x 2105.11571.90.00

Socket inclination: 0°

Nominal widthRecessWeightItem

number		Remember
[mm][kg]
ImageDN 50360 x 1902.21511.50.00
ImageDN 70360 x 1902.41531.50.00
ImageDN 100360 x 1902.51551.50.00
Freispiegelentwässerung - Anstauhöhe: 35 mmEdelstahlkiesfang
NennweiteStutzenneigungAusführungHauptentwässerungNotentwässerung​Art. Nr.:
DN​l/sl/s
DN 5090°1-teilig6,2 l/s8,8 l/s1511.90.00
90°2-teilig6,3 l/s8,8 l/s
0°1-teilig6,6 l/s8,8 l/s
0°2-teilig6,5 l/s8,8 l/s
DN 7090°1-teilig6,7 l/s11,0 l/s1531.90.00
90°2-teilig6,8 l/s11,2 l/s
0°1-teilig7,1 l/s12,1 l/s
0°2-teilig7,1 l/s12,1 l/s
DN 10090°1-teilig7,7 l/s11,0 l/s1551.90.00
90°2-teilig7,5 l/s11,8 l/s
0°1-teilig7,0 l/s10,8 l/s
0°2-teilig7,1 l/s10,1 l/s
DN 12590°1-teilig11,0 l/s–1571.90.00
90°2-teilig10,9 l/s–
0°1-teilig16,0 l/s–
0°2-teilig15,9 l/s–
Unterdruckentwässerung - Anstauhöhe: 55 mm
Luftschleuse​Art. Nr.:
NennweiteStutzenneigungAusführungHauptentwässerungNotentwässerung
DN 5090°1-teilig8,8 l/s8,8 l/s1511.90.00
90°2-teilig8,8 l/s8,8 l/s
DN 7090°1-teilig18,9 l/s18,6 l/s1531.90.00
90°2-teilig19,1 l/s18,2 l/s
DN 10090°1-teilig30,3 l/s31,2 l/s1551.90.00
90°2-teilig28,4 l/s30,3 l/s
Top sections for gully bodies Variant-Flex

Top sections for gully bodies Variant-Flex


Roofing membranes for Spin/Jet flat roof gullys made of stainless steel

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
Item no.
7000.85.10

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
    • DN 40 – DN 125
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Turboflow emergency gully made of stainless steel
    • DN 50 – DN 70
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70 – DN 100
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 25 W
  • Weight: 0.3 kg
Item no.
7000.85.20

Flat roof heating

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg
Item no.
7000.85.15

Flat roof heating with thermostat

Suitable for
  • Flat roof gullies Jet/Spin series made of stainless steel
  • Turboflow emergency gully made of stainless steel
  • Flat roof gullies Passavant Spin made of cast iron
  • DN 125 – DN 150
Description
  • Mains connection: 220 – 240 V
  • Degree of protection: IP 67
  • Connection line
    • H05RN-F2x1,0
    • Length: 1 m
  • Height: 95 mm
  • Nominal power: 40 W
  • Weight: 0.4 kg
Item no.
7000.85.25

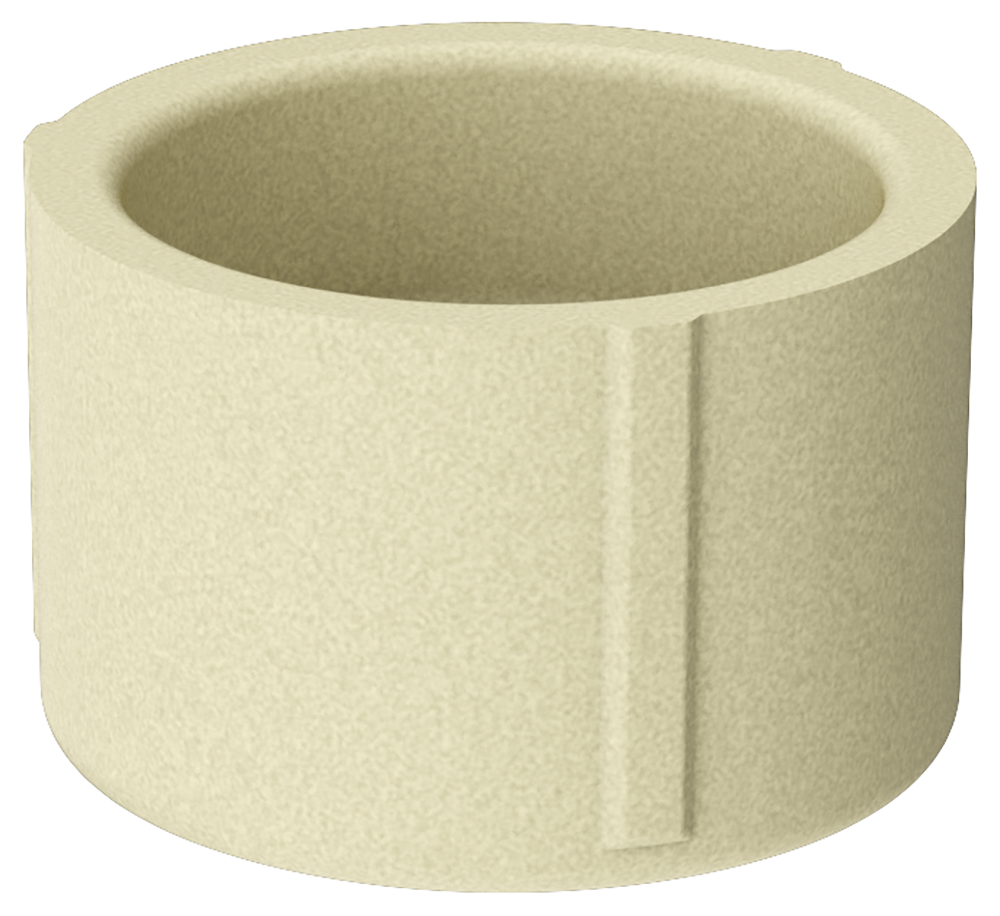

Insulating body

Description
  • Weight: 0.2 kg
Item no.
1510.93.00

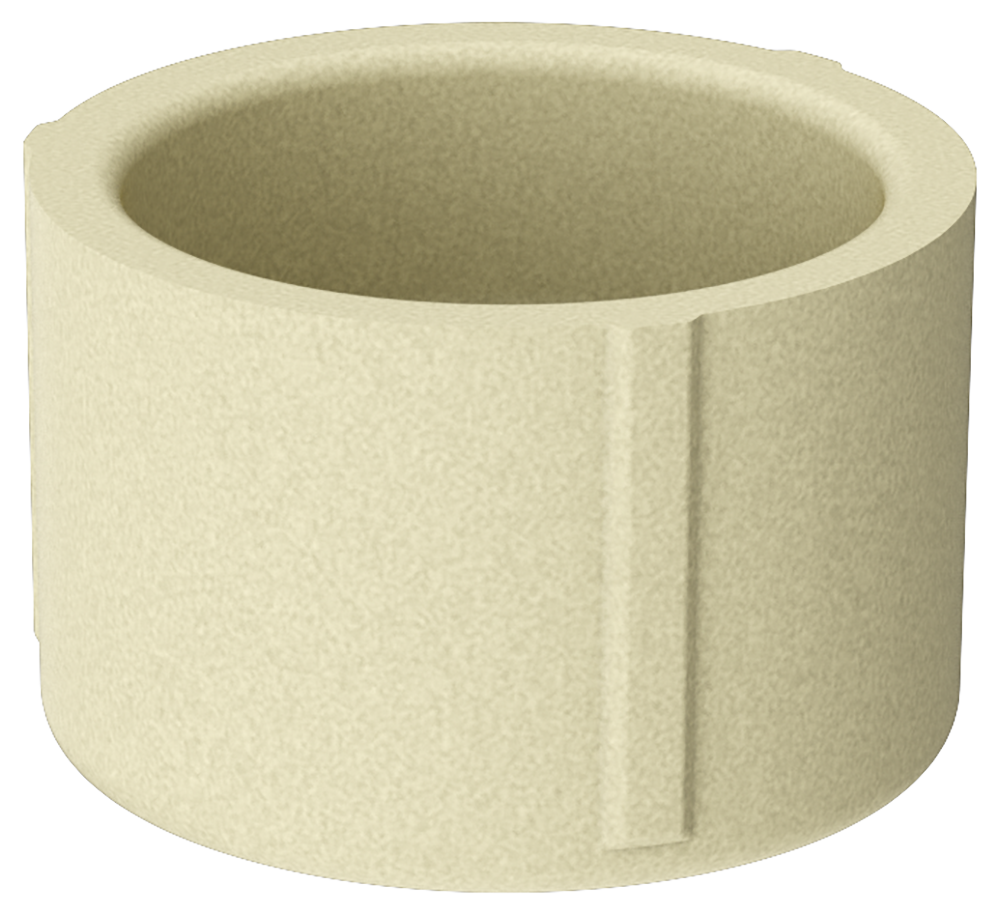

Insulating body

Description
  • Weight: 0 kg
Item no.
1510.95.00

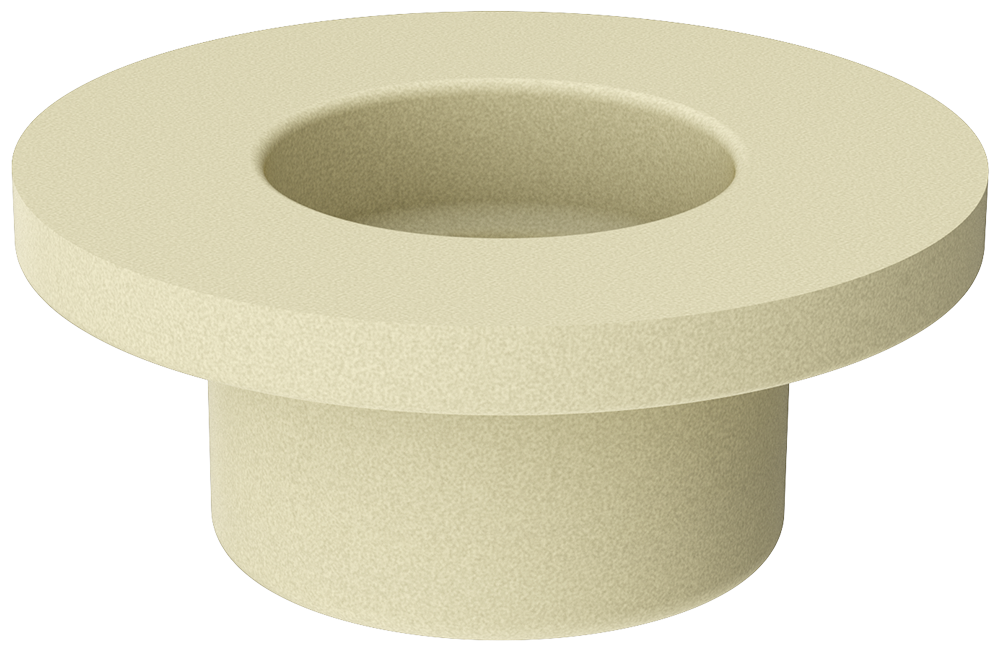

Insulating body

Description
  • Weight: 0.1 kg
Item no.
1530.93.00

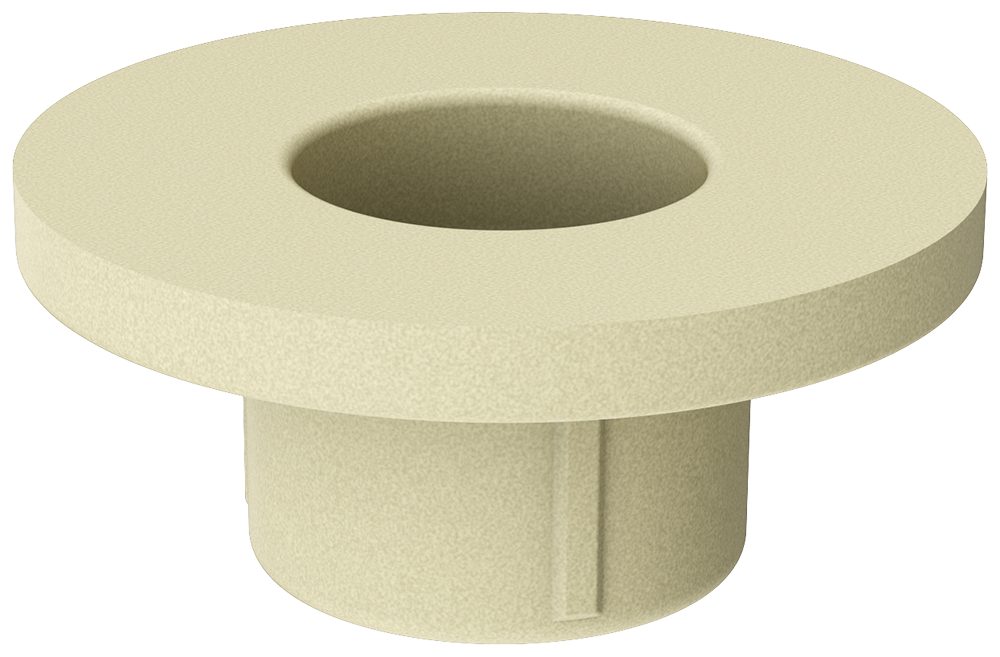

Insulating body

Description
  • Weight: 0 kg
Item no.
1530.95.00

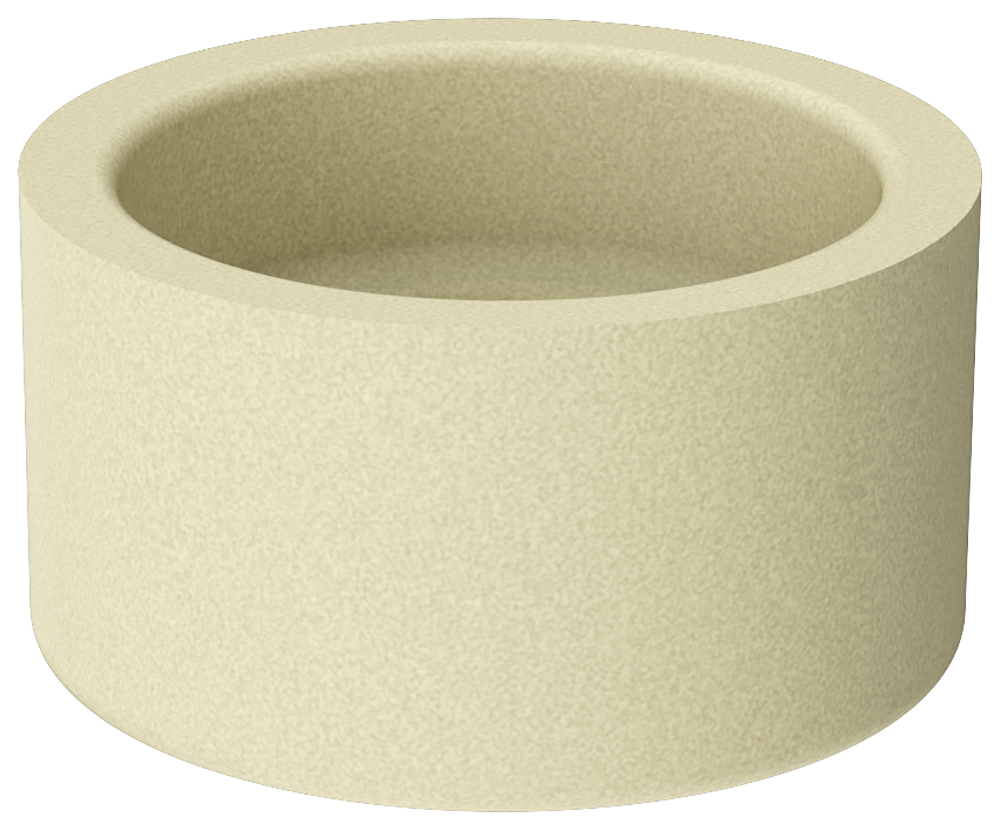

Insulating body

Description
  • Weight: 0.1 kg
Item no.
1550.93.00

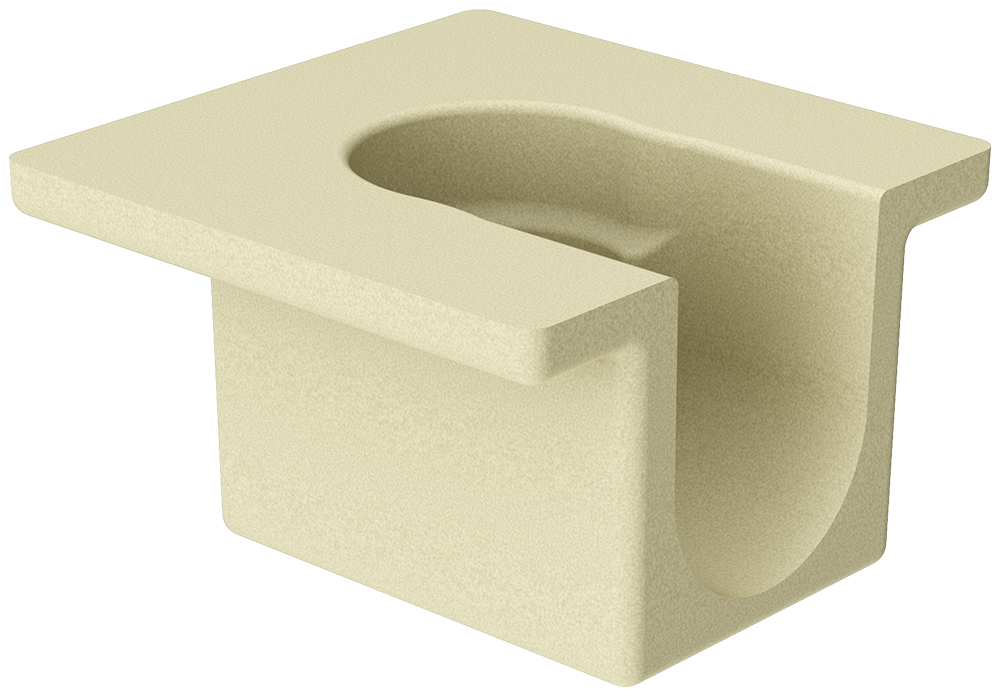

Insulating body

Description
  • Weight: 0 kg
Item no.
1550.95.00

Insulating body

Description
  • Weight: 0.2 kg
Item no.
1570.93.00

Insulating body

Description
  • Weight: 0.1 kg
Item no.
1570.95.00

Insulating body

Description
  • Weight: 0.2 kg
Item no.
1590.53.00

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Spin made of cast iron
    • DN 70
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.4 kg
Item no.
5169.20.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Spin made of cast iron
    • DN 70
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.4 kg
Item no.
5169.30.26

Flange seal set

Suitable for
  • Flat roof gullies Passavant Spin made of cast iron
    • DN 70/DN 100
  • Flat roof gullies Spin made of cast iron
    • DN 70
  • Flat roof gullies Jet made of cast iron
    • DN 50
Description
  • Consisting of:
    • 1 flange seal for loose flange
    • 1 flange seal for fixed flange
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.5 kg
Item no.
5169.40.26

Holder sheet for trapezoidal panel roof

Description
  • Weight: 3.9 kg
Item no.
1590.02.00

Holder sheet for trapezoidal panel roof

Description
  • Weight: 3.8 kg
Item no.
1570.02.00

Control shaft

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
Description
  • Stainless steel, material grade 304
  • Load class: K 3
  • Weight: 5.3 kg
Item no.
0153.73.05

Holder sheet for trapezoidal panel roof

Suitable for
  • Jet flat roof gullies
    • DN 70/DN 100
    • Socket inclination: 90°
  • Spin flat roof gullies
    • DN 70 – DN 125
    • Socket inclination: 90°
  • Emergency gully Turboflow
    • DN 50/DN 70
Description
  • Made from galvanised steel sheet
  • Thickness: 1.5 mm
  • Weight: 3.6 kg
Item no.
0174.46.61

Formwork aid

Item no.
1500.06.00

Gravel trap

Item no.
1500.00.10

Gravel trap

Item no.
1590.00.30

Retention top section

Item no.
1590.00.05

Retention top section

Item no.
1590.00.07

Retention top section

Item no.
1590.00.08

Retention top section

Item no.
1590.00.09

Pilot tube for emergency overflow

Description
  • Weight: 0.6 kg
Item no.
1590.00.01

Pilot tube for emergency overflow

Description
  • Weight: 0.8 kg
Item no.
1570.00.02

Pilot tube for emergency overflow

Item no.
1590.00.03

Airlock made of plastic

Item no.
1590.00.50
